| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WINLEY |
| Certification: | CE,ISO |
| Model Number: | D-100/35 |
| Minimum Order Quantity: | 1unit |
| Price: | $1000-$10000 |
| Packaging Details: | Plywood case |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 1000set/month |
| Rated Capacity: | 100KVA | Primary Voltage: | 34500GrdY/19920 |
|---|---|---|---|
| Secondary Voltage: | 240/120 (L-N-L) | Phase: | Single Phase |
| Cooling Method: | ONAN/KNAN | Efficiency: | 99.00% |
| Frequency: | 60 Hz | Temperature Rise: | 65°C |
| High Light: | 34500V 240v Pad mounted distribution transformers,100kVA Pad mounted distribution transformers,Radial Feed Pad Mounted Distribution Transformers |
||
ANSI single-phase pad-mounted transformers come equipped with a clamshell cabinet for ease of opening and uninhibited access to connections. The versatility of the design allows for various protective and switching configurations.

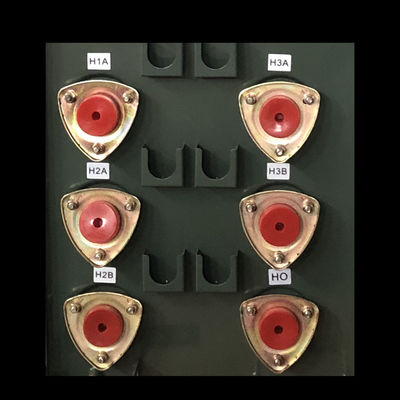

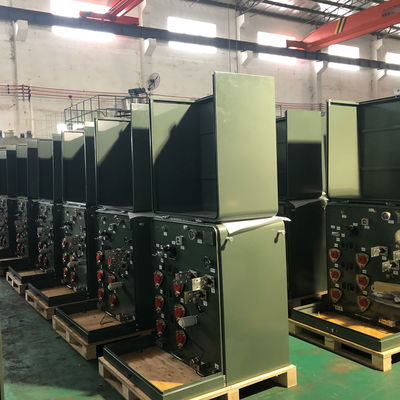

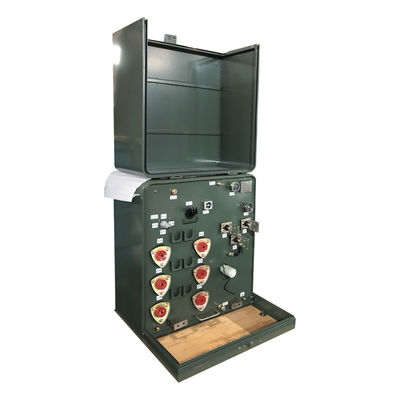

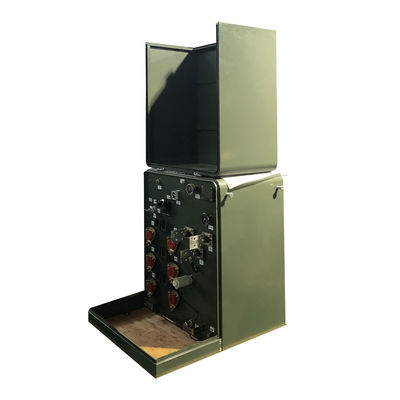

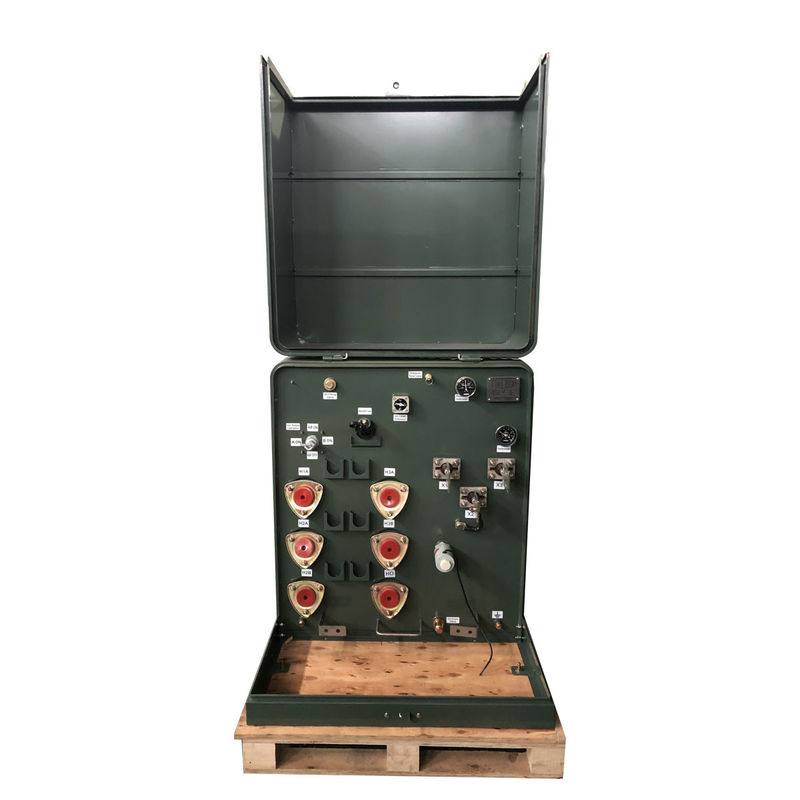

Factory product photos
product structure
Main data
| Transformer Type | Pad Mounted, Compartmental-Type I & II |
| Transformer Feed Type | Loop Feed |
| Phase | Single Phase |
| Capacity | 100 KVA |
| Vector Group | II6 |
| Primary Voltage | 34500GrdY/19920 |
| Secondary Voltage | 240/120 |
| Frequency | 60 Hz |
| Temperature Rise | 65°C |
| Insulation Rating | Class E Insulation - 120°C, 248°F |
| Cooling Class | ONAN; Self-Cooled |
| Primary Termination Arrangement | ANSI Type I Arrangement |
| Load Break Switch Rating | 200-Amp, 35 kV, 10kArms |
| Efficiency Standard(s) | Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards |
| K-Factor Rating (Harmonic Mitigation) | K-1 (Standard) |
| Winding Material | Copper |
| Ambient Temperature Rating | 40°C |
| Ambient Operating Temperature Range | -40°C to +40°C (-50°F to +104°F) |
| Sound Level | 51 dBA |
| Compartment Base Wireway Dimensions* | 36-L x 20-D |
| Compartment Cabinet Depth | 19-D |
| Dimensions* | 36.5''-W x 42.5''-D x 36''-H |
| Dry Weight (w/o Oil)* | 749.56 lb |
| Total Weight (Liquid Filled)* | 2,024.36 lb |
| Efficiency | 99.00% |
| Total Load Loss (in watts)* | +/- 1,378W |
Product technical
| Single phase Pad mounted Transformer Specification | ||||||||
| Rating | High voltage(kV) | No Load Loss | On load Loss | Height | Depth | Width | Oil Weight(kg) | Total Weight(kg) |
| (kVA) | (mm) | (mm) | (mm) | |||||
| 15 kVA | 34.5/19.92 13.8/8 13.2/7.6 12.47/7.2 or others |
50 | 195 | 840 | 740 | 610 | 45 | 294 |
| 25 kVA | 80 | 290 | 840 | 740 | 610 | 68 | 362 | |
| 37.5 kVA | 106 | 360 | 840 | 760 | 610 | 75 | 476 | |
| 50 kVA | 135 | 500 | 840 | 810 | 610 | 93 | 553 | |
| 75 kVA | 190 | 650 | 840 | 860 | 610 | 132 | 672 | |
| 100 kVA | 280 | 1010 | 910 | 1200 | 965 | 230 | 714 | |
| 167 kVA | 435 | 1530 | 1000 | 1200 | 965 | 265 | 913 | |
| 250 kVA | 550 | 2230 | 1250 | 1300 | 1430 | 325 | 1106 | |
Product design
Accessories
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
