| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WINLEY |
| Certification: | CE,ISO |
| Model Number: | D-50/15 |
| Minimum Order Quantity: | 1unit |
| Price: | $1000-$10000 |
| Packaging Details: | Plywood case |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 1000set/month |
| Rated Capacity: | 50KVA | Primary Voltage: | 12000V |
|---|---|---|---|
| Secondary Voltage: | 120/240V | Phase: | Single Phase |
| Cooling Method: | ONAN/KNAN | Feed Type: | Loop Feed |
| Transformer Type: | Pad Mounted, Compartmental | Temperature Rise: | 65°C |
| High Light: | Single Phase Pad Mounted Transformer,12000V 240V Pad Mounted Transformer,50Kva Pad Mounted Transformer |
||

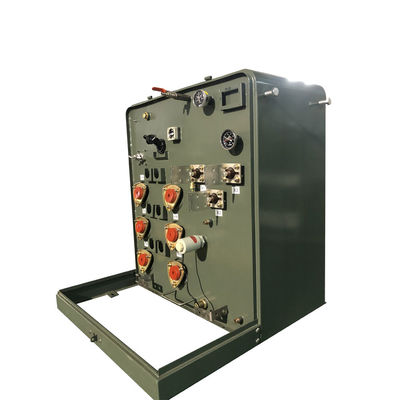

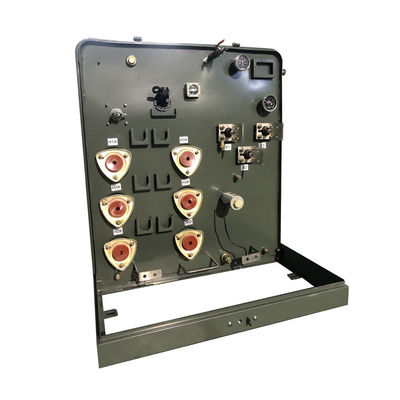

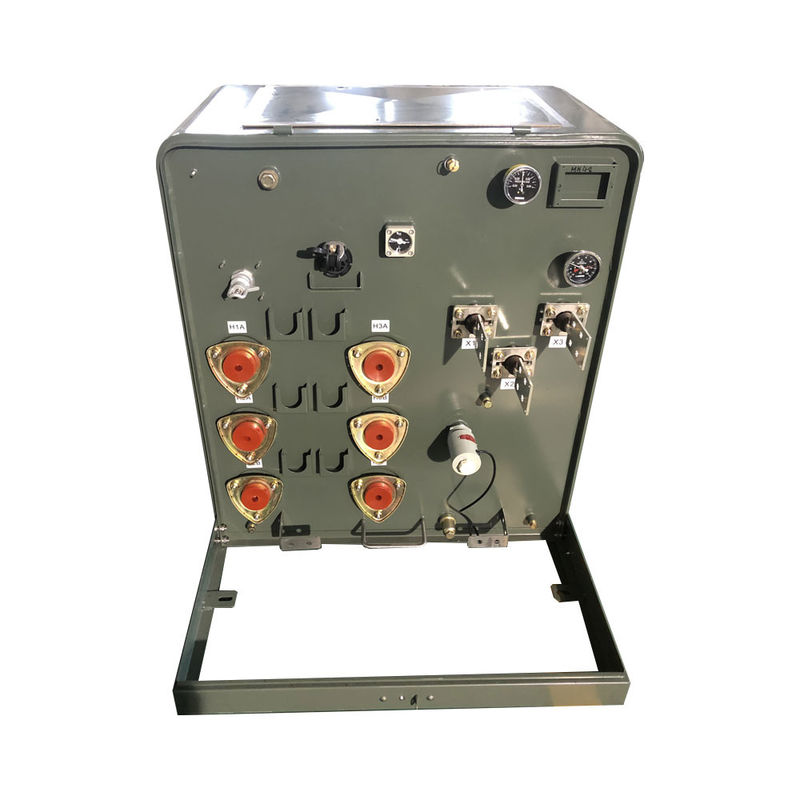

Factory product photos
Summarization
Single-phase pad-mounted transformers are compact, self-contained electrical devices primarily used in residential and light commercial settings. Their primary application is to step down the high-voltage electricity supplied by the utility company to a lower voltage suitable for home or small business use.
Product Detail
Product technical
| Single phase Pad mounted Transformer Specification | ||||||||
| Rating | High voltage(kV) | No Load Loss | On load Loss | Height | Depth | Width | Oil Weight(kg) | Total Weight(kg) |
| (kVA) | (mm) | (mm) | (mm) | |||||
| 15 kVA | 34.5/19.92 13.8/8 13.2/7.6 12.47/7.2 or others |
50 | 195 | 840 | 740 | 610 | 45 | 294 |
| 25 kVA | 80 | 290 | 840 | 740 | 610 | 68 | 362 | |
| 37.5 kVA | 106 | 360 | 840 | 760 | 610 | 75 | 476 | |
| 50 kVA | 135 | 500 | 840 | 810 | 610 | 93 | 553 | |
| 75 kVA | 190 | 650 | 840 | 860 | 610 | 132 | 672 | |
| 100 kVA | 280 | 1010 | 910 | 1200 | 965 | 230 | 714 | |
| 167 kVA | 435 | 1530 | 1000 | 1200 | 965 | 265 | 913 | |
| 250 kVA | 550 | 2230 | 1250 | 1300 | 1430 | 325 | 1106 | |
Feature
1)Two externally clamped universal high-voltage bushing wells for loop feed operation or one externally clamped bushing well for radial feed operation
2)Three externally clamped low-voltage bushings with threaded copper studs, including a fully insulated neutral terminal with removable ground strap
3)Embossed bushing mounts; Recessed oil compartment bottom
Threaded, flush mounted stainless steel lifting provisions
4)Automatic pressure relief device
5)Electrical grade mineral oil with oxidation inhibitor
6)Removable hood with corrosion resistant stainless steel hinge pins and barrels
7)Mild steel enclosure and detachable sill fastened with stainless steel hardware
8)Front panel accessory mounting bracket;
9)Domed top surfaces on hood and oil compartment to prevent water retention
10)Oil fill/oil level plug; Oil drain plug; Tank grounding provisions
11)Corrosion resistant locking assembly with captive penta-head security bolt, floating nut and padlock provision
12)Decal or stenciled bushing designations
13)Laser engraved anodized aluminum nameplate
14)Meets or exceeds current ANSI, IEEE, NEMA, CSA, and DOE standards as applicable
