SCB11 Three Phase Cast Resin Dry Type Power Transformers 2500Kva

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: CE,ISO
Model Number: SCB11-2500/0.8
Minimum Order Quantity: 1unit
Price: $1000-$150000
Packaging Details: Plywood case
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 1000set/month
Detail Information
Rated Capacity: 2500Kva Or Customized No. Of Phase: Three
Primary Voltage: 13200 Or Customized Secondary Voltage: 480Y/277
Winding Material: Aluminum Cooling Method: AN/AF
Temperature Rise: 100℃ Insulation Class: F/h
High Light:

Dry Type Power Transformers 2500Kva


Cast Resin Power Transformers


SCB11 Cast Resin Transformer

Product Description

SCB11 Three Phase Cast Resin Dry Type Power Transformers Price 2500Kva


Dry transformer features


1)Moisture-proof and corrosion-resistant ability , and it can run normally at 100%humidity,especially for work in extreme environmental conditions.
2)Lost loss, small local discharge, small noise, and strong heat dissipation capacity, can run 150%of the rated load operation.
3)High the whole mechanical strength of the cast coil withstand sudden short -circuit capability.
4)Safe, fire prevention, no pollution, can be installed directly in the load center.
5)Simple maintenance and installation, low comprehensive operating costs.


Dry transformers structural features


1)Box coil: The low -voltage winding uses the entire copper foil, along with the F -class turning insulation on the dedicated low -pressure foil winding machine.
2)Foil coils are well solved with low pressure, large -current coils around the product, large stress, unbalanced amnf -balancing, poor heat dissipation effects, and outstanding problems such as winding spiral angles, and unstable artificial welding quality.
3)At the same time, the transformer winding is seized with resin, solidified and shaped, and moisture -proof and pollution -proof.

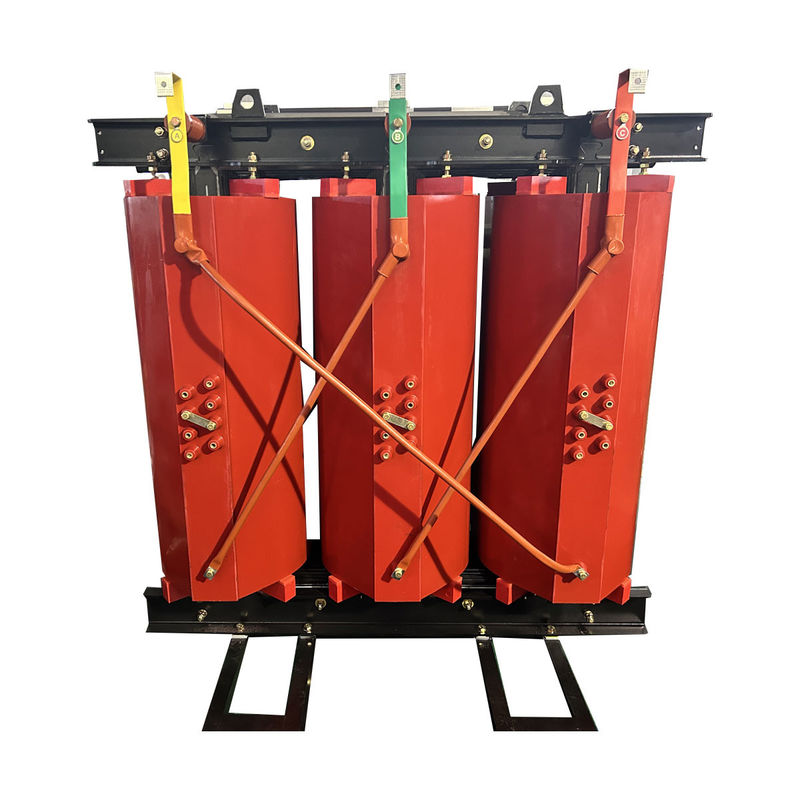

SCB11 Three Phase Cast Resin Dry Type Power Transformers 2500Kva 0



Rated capacity High Voltage Low Connection Symbol No-Load Loss On-Load Loss No Load Current Weight Short Circuit Impendence
(KVA) (KV) Voltage (W) (W) (%) (KG) (%)
10 6
0.4 Dyn11
0.15 0.325 4.1 130 4
30 0.215 0.75 3.2 260
50 0.305 1.055 2.8 315
80 0.415 1.46 2.6 470
100 0.45 1.665 2.4 520
125 0.53 1.955 2.2 585
160 0.61 2.25 2.2 670
200 0.7 2.675 2 790
250 0.81 2.915 2 920
315 0.99 3.67 1.8 1085
400 1.1 4.22 1.8 1320
500 1.305 5.165 1.8 1520
630 1.46 6.31 1.6 1820 6
800 1.71 7.36 1.6 2105
1000 1.99 8.6 1.4 2550
1250 2.35 10.26 1.4 2900
1600 2.755 12.42 1.4 3490
2000 3.735 15.3 1.2 4220
2500 4.5 19.53 1.2 4955


Product acessories

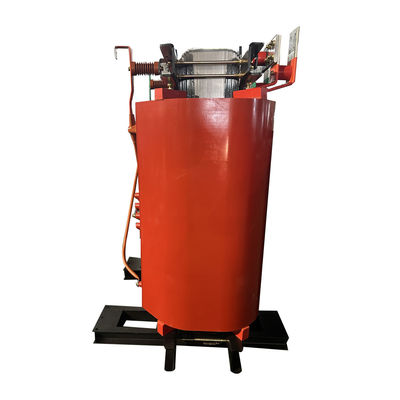

SCB11 Three Phase Cast Resin Dry Type Power Transformers 2500Kva 1


Production process


6500K Dry Type cast Resin Three Phase Transformer 33KV To 0.9KV 2

6500K Dry Type cast Resin Three Phase Transformer 33KV To 0.9KV 3

6500K Dry Type cast Resin Three Phase Transformer 33KV To 0.9KV 4




1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
