100kva Single Phase Pad Mounted Loop Feed Transformer 34.5kv 13.2kv 12.4 Kv

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: CE,ISO
Model Number: D-100/15
Minimum Order Quantity: 1unit
Price: $1000-$10000
Packaging Details: Plywood case
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 1000set/month
Detail Information
Transformer Type: Pad Mounted Cooling Method: ONAN; Self-Cooled
Frequency: 50Hz/60Hz Insulation Level: A/E
Primary Voltage: 13200GrdY/7620 Secondary Voltage: 240/120V (L-N-L)
Capacity: 100Kva Phase: Single Phase
High Light:

100kva Loop Feed Transformer

,

Single Phase Loop Feed Transformer

,

Oil Type Transformer 12.4 Kv


Product Description

100kva Single Phase Pad Mounted Loop Feed Transformer 34.5kv 13.2kv 12.4 Kv



Summarization



1)Single phase pad mounted transformers are placed inside a cabinet with doors and locks, usuallylocated outdoors. These transformers are manulactured with ratings from 15-250 kVA.
2)Al of these distribution transformers are oil-insulated, sef-cooled,available in loop or radial feed, and are dead-front
3)These transformers come in two basic configurations radia and loop feed,which are selectied based on the type of circuit on which the transformers wil be insalled.



product details

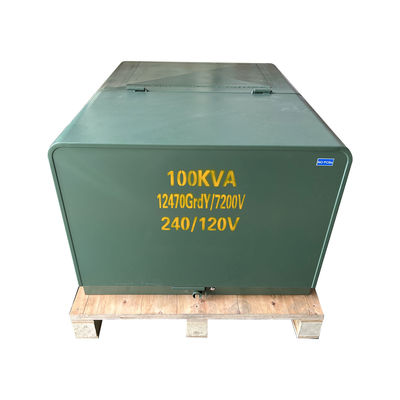

100kva Single Phase Pad Mounted Loop Feed Transformer 34.5kv 13.2kv 12.4 Kv 0



Feature



• Meet or exceeds ANSI®, IEEE® and NEMA® standards
• Meets DOE Energy Efficiency Standard 10 CFR Part 431 for distribution transformers
• Tank coating exceeds IEEE Std C57.12.28™-2005 and IEEE Std C57.12.29™-2005 standards (stainless steel units only)
• Full compliance with IEEE Std C57.12.28™-2005 standard enclosure integrity requirements
• Laser engraved nameplate
• Recessed stainless steel lifting provisions
• Tank grounding provisions
• Automatic pressure relief device
• Electrical grade mineral oil
• Hinged door with stainless steel hinge pins and barrels
• Floating lock pocket for easy alignment
• Captive stainless steel pentahead door locking bolt
• Oil fill and drain provisions
• Removable sill
• Welded domed tank cover
• High-voltage bushing wells - 200 A

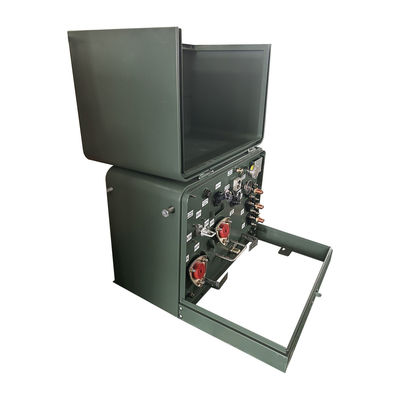

100kva Single Phase Pad Mounted Loop Feed Transformer 34.5kv 13.2kv 12.4 Kv 1





Specification



Single phase Pad mounted Transformer Specification
Rating High voltage(kV) No Load Loss On load Loss Height Depth Width Oil Weight(kg) Total Weight(kg)
(kVA) (mm) (mm) (mm)
15 kVA 34.5/19.92
13.8/8
13.2/7.6
12.47/7.2
or others
50 195 840 740 610 45 294
25 kVA 80 290 840 740 610 68 362
37.5 kVA 106 360 840 760 610 75 476
50 kVA 135 500 840 810 610 93 553
75 kVA 190 650 840 860 610 132 672
100 kVA 280 1010 910 1200 965 230 714
167 kVA 435 1530 1000 1200 965 265 913
250 kVA 550 2230 1250 1300 1430 325 1106






Optional Accessories

100kva Single Phase Pad Mounted Loop Feed Transformer 34.5kv 13.2kv 12.4 Kv 2



Production process



100kva Single Phase Pad Mounted Loop Feed Transformer 34.5kv 13.2kv 12.4 Kv 3

100kva Single Phase Pad Mounted Loop Feed Transformer 34.5kv 13.2kv 12.4 Kv 4

100kva Single Phase Pad Mounted Loop Feed Transformer 34.5kv 13.2kv 12.4 Kv 5



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
