Cast Resin Transformer
>

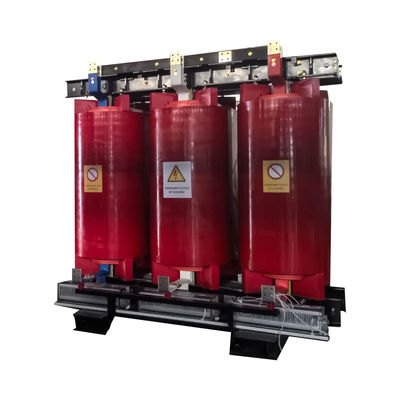

5600K Three Phase Dry Type Transformer Cast Coil Step Up Transformer 33KV

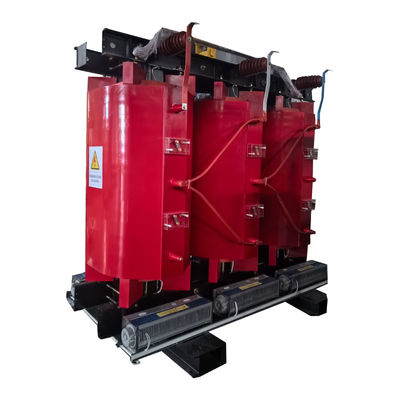

5600K Three Phase Dry Type Transformer Cast Coil Step Up Transformer 33KV

Brand Name: WINLEY
Model Number: SCB10-5600/35
MOQ: 1unit
Price: $1000-$10000
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Certification:
CE,ISO
Phase:
Three
Rated Capacity:
5600KVA Or Customize
Cooling Method:
AN/AF
Frequency:
50/60Hz
Insulation Level:
F/H
Standard:
AS60076
Vector Group:
Dy11
Temperature Rise:
100℃
Supply Ability:
1000set/month
Highlight:

Step Up Transformer 33KV

,

3P Dry Type Transformer

,

Step Up Cast Resin Transformer

Product Description

5600K Three Phase Dry Transformer Cast Coil step up Transformer 33KV





5600K Three Phase Dry Type Transformer Cast Coil Step Up Transformer 33KV 0



Performance Characteristic



* Simple maintenance: seldom need any maintenance.
* They are pollution-free
* They are used in the areas of contaminated and damped
* They are easier to Install.
* They have long servie life because of the dielectric heating & low thermal
* Protects the property & people
* For short circuit currents, they have high resistance
* Performance is excellent



Main Data



Type Dry type, cast resin
Model Number SCB10-5600KVA/33~0.4KV
Phases single or three phase
Rated capacity 50-6300KVA
Insulation Type F/H
Cooling Method AN/AF
Primary voltage 12/24/33KV
Secondary voltage 400/230V
Vector Group Dyn11,Yyn0
Tapping Range ±2×2.5
Rated frequency 50Hz/60Hz
Temperature rise 100℃
Impedance 9%
No-load loss 7487W
On-load loss(120℃) 55320W
Winding material Aluminum or Copper
IP rate IP00 to IP54
Fireproof class F1
Core material Silicon steel
Standard ANSI,IEC
Certified CE/ISO





Specification



Rated capacity High Voltage Low Connection Symbol No-Load Loss On-Load Loss No Load Current Weight Short Circuit Impendence
(KVA) (KV) Voltage (W) (W) (%) (KG) (%)
(KV)
10 6 0.4 Dyn11 0.15 0.325 4.1 130 4
30 6.3 Yyn0 0.215 0.75 3.2 260
50 10   0.305 1.055 2.8 315
80 10.5   0.415 1.46 2.6 470
100 11   0.45 1.665 2.4 520
125     0.53 1.955 2.2 585
160     0.61 2.25 2.2 670
200     0.7 2.675 2 790
250     0.81 2.915 2 920
315     0.99 3.67 1.8 1085
400     1.1 4.22 1.8 1320
500     1.305 5.165 1.8 1520
630     1.46 6.31 1.6 1820 6
800     1.71 7.36 1.6 2105
1000     1.99 8.6 1.4 2550
1250     2.35 10.26 1.4 2900
1600     2.755 12.42 1.4 3490
2000     3.735 15.3 1.2 4220
2500     4.5 19.53 1.2 4955



Production process



150KVA Three Phase Pad Mount electrical  Transformer Oil Immersed 13.8KV 4

150KVA Three Phase Pad Mount electrical  Transformer Oil Immersed 13.8KV 5

150KVA Three Phase Pad Mount electrical  Transformer Oil Immersed 13.8KV 6



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
