Brand Name: | WINLEY |
Model Number: | D-100/12 |
MOQ: | 1unit |
Price: | $1000-$10000 |
Packaging Details: | Plywood case |
Payment Terms: | T/T |

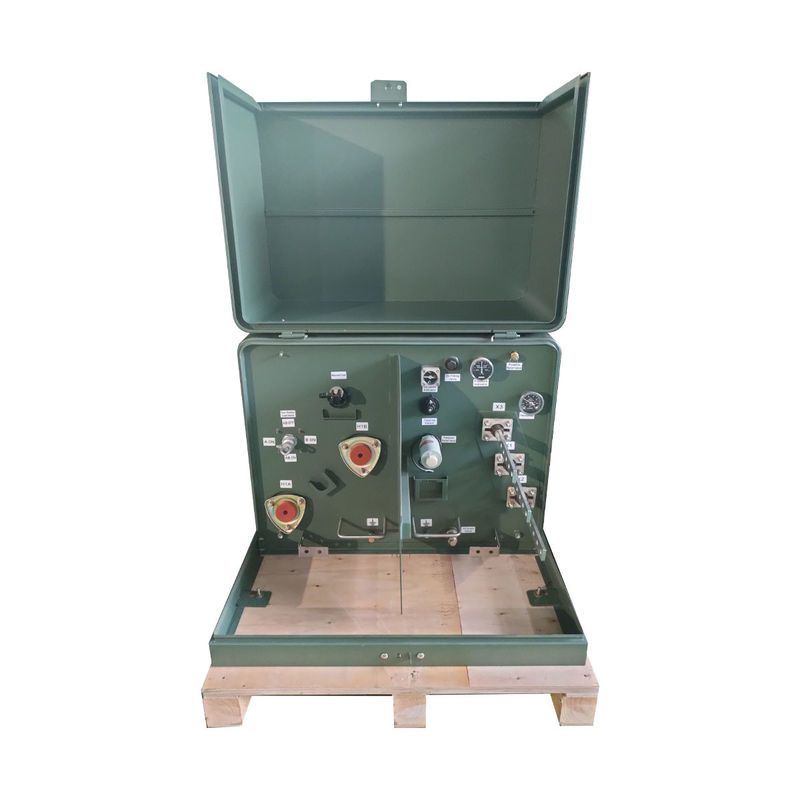

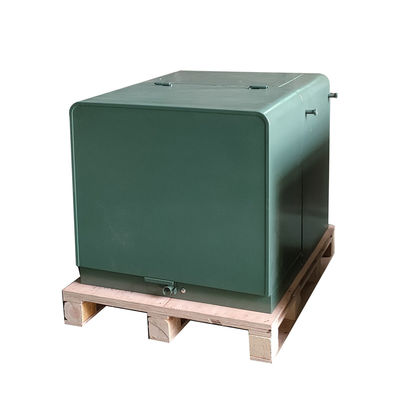

DOE 100kva Single Phase Pad Mounted Distribution Transformer 12470V
Product Description
Performance Characteristic
1) Combination Transformer Substation, The top of cabinet is with steel plate clamp rock wool structure which has ventilation duct, can reduce the solar radiation effectively and ensure the heat dissipation.
2) The surface of whole cabinet shell sprays special primer and paint which has strong anti-corrosion ability.
3) The inside can be divided into high voltage chamber, transformer chamber and low voltage chamber respectively. Also it is be equipped with temperature control automatic exhaust device to ensure the temperature range.
4) Each unit has impeccable control, charged display and lighting system.
5) The apparatus equipment are accord with IP33 protection requirement, have reasonable design,structure and technology, with good quality and easy maintenance.
Specification
Single phase Pad mounted Transformer Specification | ||||||||
Rating | High voltage(kV) | No Load Loss | On load Loss | Height | Depth | Width | Oil Weight(kg) | Total Weight(kg) |
(kVA) | (mm) | (mm) | (mm) | |||||
15 kVA | 34.5/19.92 13.8/8 13.2/7.6 12.47/7.2 or others |
50 | 195 | 840 | 740 | 610 | 45 | 294 |
25 kVA | 80 | 290 | 840 | 740 | 610 | 68 | 362 | |
37.5 kVA | 106 | 360 | 840 | 760 | 610 | 75 | 476 | |
50 kVA | 135 | 500 | 840 | 810 | 610 | 93 | 553 | |
75 kVA | 190 | 650 | 840 | 860 | 610 | 132 | 672 | |
100 kVA | 280 | 1010 | 910 | 1200 | 965 | 230 | 714 | |
167 kVA | 435 | 1530 | 1000 | 1200 | 965 | 265 | 913 | |
250 kVA | 550 | 2230 | 1250 | 1300 | 1430 | 325 | 1106 |
Standard Features
• Meet or exceeds ANSI®, IEEE® and NEMA® standards
• Meets DOE Energy Efficiency Standard 10 CFR Part 431 for distribution transformers
• Tank coating exceeds IEEE Std C57.12.28™-2005 and IEEE Std C57.12.29™-2005 standards (stainless steel units only)
• Full compliance with IEEE Std C57.12.28™-2005 standard enclosure integrity requirements
• Laser engraved nameplate
• Recessed stainless steel lifting provisions
• Tank grounding provisions
• Automatic pressure relief device
• Electrical grade mineral oil
• Hinged door with stainless steel hinge pins and barrels
• Floating lock pocket for easy alignment
• Captive stainless steel pentahead door locking bolt
• Oil fill and drain provisions
• Removable sill
• Welded domed tank cover
• High-voltage bushing wells - 200 A
Optional Accessories
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
![]() |
