| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WINLEY |
| Certification: | CE,ISO |
| Model Number: | D-75/13 |
| Minimum Order Quantity: | 1unit |
| Price: | $1000-$10000 |
| Packaging Details: | Plywood case |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 1000set/month |
| Capacity: | 75Kva | Primary Voltage: | 13200GrdY/7620 |
|---|---|---|---|
| Secondary Voltage: | 240/120V | Frequency: | 50Hz/60Hz |
| Cooling System: | ONAN/KNAN | Standard: | IEEE ANSI DOE |
| Winding Material: | Copper/Aluminium | Vector Group: | II0/II6 |
| High Light: | 75kva Pad Mounted Power Transformer,Pad Mounted Power Transformer Fr3,Oil Type Transformer 240v |
||

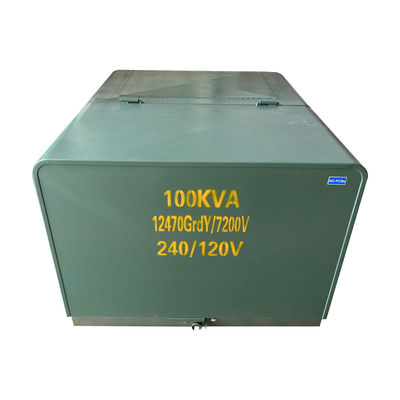

75kva Single Phase Pad Mounted Power Transformer Fr3 Oil Filled 13200v To 240v

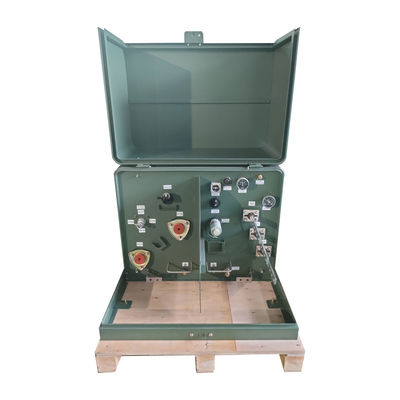

Structure
Tachnical Data
| Single phase Pad mounted Transformer Specification | ||||||||
| Rating | High voltage(kV) | No Load Loss | On load Loss | Height | Depth | Width | Oil Weight(kg) | Total Weight(kg) |
| (kVA) | (mm) | (mm) | (mm) | |||||
| 15 kVA | 34.5/19.92 13.8/8 13.2/7.6 12.47/7.2 or others |
50 | 195 | 840 | 740 | 610 | 45 | 294 |
| 25 kVA | 80 | 290 | 840 | 740 | 610 | 68 | 362 | |
| 37.5 kVA | 106 | 360 | 840 | 760 | 610 | 75 | 476 | |
| 50 kVA | 135 | 500 | 840 | 810 | 610 | 93 | 553 | |
| 75 kVA | 190 | 650 | 840 | 860 | 610 | 132 | 672 | |
| 100 kVA | 280 | 1010 | 910 | 1200 | 965 | 230 | 714 | |
| 167 kVA | 435 | 1530 | 1000 | 1200 | 965 | 265 | 913 | |
| 250 kVA | 550 | 2230 | 1250 | 1300 | 1430 | 325 | 1106 | |
Design drawings
Feature
■Quality System ISO 9001 certified
■Meet or exceeds ANSI/IEEE and NEMA standards
■Tank coating exceeds IEEE Std C57.12.28TM-2005 and
IEEE Std
C57.12.29TM-2005 standards (stainless steel units only)
■ Full compliance with IEEE Std C57.12.28TM-2005 standard enclosure integrity requirements
■Automatic pressure relief device
■Fluid fill and drain provisions
■Laser engraved nameplate
■Floating lock pocket for easy alignment
■Decal bushing designations
■Welded domed tank cover
■Tamper strips of noncorrosive material
■Crowned tank
■Removable sill
■Recessed stainless steel lifting provisions
■Hinged door with stainless steel hinge pins and barrels
■Ground strap from X2 to tank ground
■HV bushing wells for dead front elbow connectors
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
