13.2kv 480V Secondary Voltage Single Phase Pad Mounted Transformer Oil Type 250kVA

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: CE,ISO
Model Number: D-50/13
Minimum Order Quantity: 1unit
Price: $1000-$10000
Packaging Details: Plywood case
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 1000set/month
Detail Information
Capacity: 15Kva To 500Kva Available Primary Voltage: 34.5kv 24.94kv 19.92kv 13.8kv 13.2kv 12.47kv
Secondary Voltage: 120V/240V/480V Customized: Accept
Standard: ANSI/IEEE/CSA Cooling System: ONAN/KNAN
Product Name: Oil Type Single Phase Transformer Pad Mounted Winding Material: Copper\Aluminum
High Light:

480V Pad Mounted Transformer

,

13.2kv Pad Mounted Transformer

,

ANSI Standard Oil Type Transformer


Product Description

Oil Type 13.2kv 480V Secondar Single Phase Pad Mounted Transformer 250kVA





Product Description



1)Combination Transformer Substation, The top of cabinet is with steel plate clamp rock wool structure which has ventilation duct, can reduce the solar radiation effectively and ensure the heat dissipation.
2)The surface of whole cabinet shell sprays special primer and paint which has strong anti-corrosion ability.
3)The inside can be divided into high voltage chamber, transformer chamber and low voltage chamber respectively. Also it is be equipped with temperature control automatic exhaust device to ensure the temperature range.
4)Each unit has impeccable control, charged display and lighting system.
5)The apparatus equipment are accord with IP33 protection requirement, have reasonable design,structure and technology, with good quality and easy maintenance.

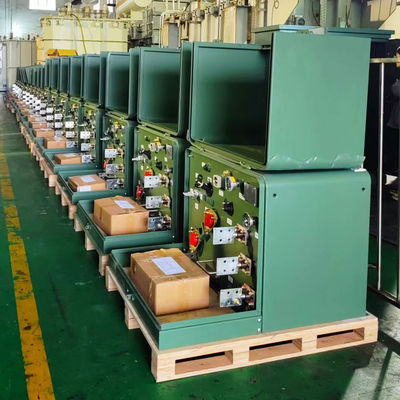

13.2kv 480V Secondary Voltage Single Phase Pad Mounted Transformer Oil Type 250kVA 0



Product Parameters



25kva-500kva single phase pad mounted transformer
Rated Cap acity(kVA) High Low Voltage(v) Connection Symbol Standard Short-circuit impedance(%) Efficiency
Voltage(v) (%)
25 4160
7200
12470
13200
13800
19920
24940
34500
110 220 230 400 480 II0,II6 IEEE/ANSI/ DOE 1.0-4.5% 98.95
37.5 99.05
50 99.11
75 99.19
100 99.25
167 99.33
250 99.39
333 99.43
500 99.49



Feature



• Meet or exceeds ANSI®, IEEE® and NEMA® standards
• Meets DOE Energy Efficiency Standard 10 CFR Part 431 for distribution transformers
• Tank coating exceeds IEEE Std C57.12.28™-2005 and IEEE Std C57.12.29™-2005 standards (stainless steel units only)
• Full compliance with IEEE Std C57.12.28™-2005 standard enclosure integrity requirements
• Laser engraved nameplate
• Recessed stainless steel lifting provisions
• Tank grounding provisions
• Automatic pressure relief device
• Electrical grade mineral oil
• Hinged door with stainless steel hinge pins and barrels
• Floating lock pocket for easy alignment
• Captive stainless steel pentahead door locking bolt
• Oil fill and drain provisions
• Removable sill
• Welded domed tank cover
• High-voltage bushing wells - 200 A​



Product design

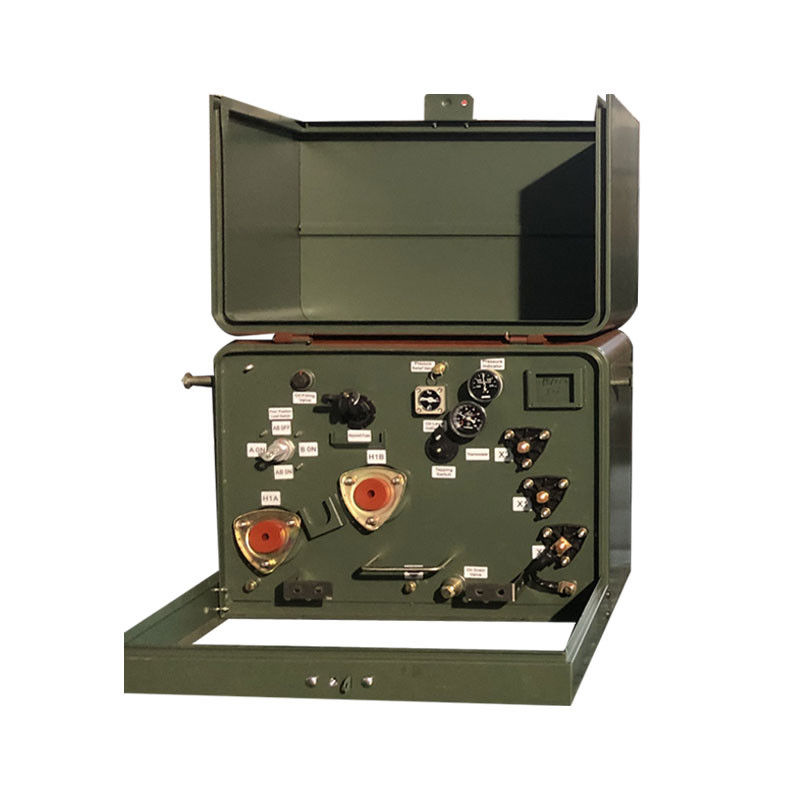

ANSI IEEE Single Phase Pad Mounted Transformer 25kva 12470v To 240/120v 1



Accessories

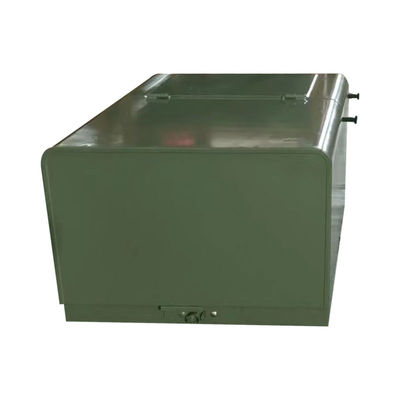

13.2kv 480V Secondary Voltage Single Phase Pad Mounted Transformer Oil Type 250kVA 2

• 4 position loadbreak
• Multiple voltages or taps
• Externally-operable multiple voltage or tap changer switches for safe operation
• Stainless steel tank, tank bottom, sill, door, and/or hardware
• Various spades and terminals available for secondary bushings
• High-voltage bushing inserts
• Ground connectors
• One piece high-voltage bushings
• Envirotemp™ FR3™ fluid
• Loadbreak switches
• Drain/sampling valve
• Pressure vacuum gauge
• Liquid level gauge
• Temperature gauge



Production process



ANSI IEEE Single Phase Pad Mounted Transformer 25kva 12470v To 240/120v 2

ANSI IEEE Single Phase Pad Mounted Transformer 25kva 12470v To 240/120v 3

ANSI IEEE Single Phase Pad Mounted Transformer 25kva 12470v To 240/120v 4



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
