| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WINLEY |
| Certification: | CE,ISO |
| Model Number: | D-15/12 |
| Minimum Order Quantity: | 1unit |
| Price: | $1000-$10000 |
| Packaging Details: | Plywood case |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 1000set/month |
| Transformer Type: | Pad Mounted | Cooling Method: | KNAN; Self-Cooled |
|---|---|---|---|
| Frequency: | 50Hz/60Hz | Impedance: | 1.0-4.5% Typical |
| Insulation Level: | A/E | Primary Voltage: | 12470GrdY/7200 |
| Secondary Voltage: | 240/120V (L-N-L) | Winding Material: | Copper |
| High Light: | 15kva Loop Feed Transformer,Pad Mounted Loop Feed Transformer,Oil Type Transformer 7.6 Kv |
||

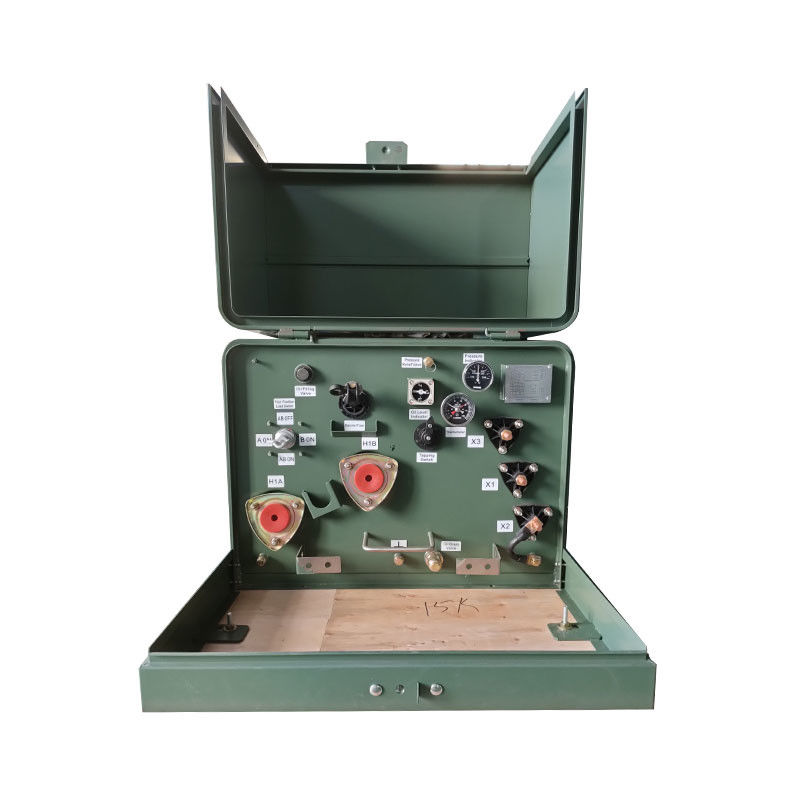

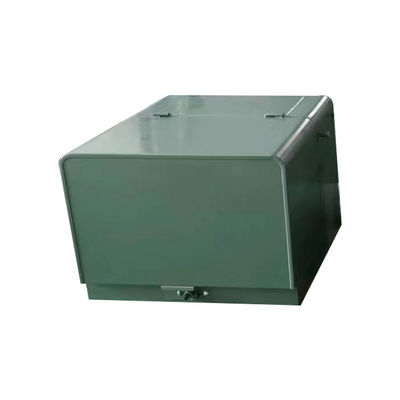

1 Phase Pad Mounted 15kva Loop Feed Type Transformer 34.5kv 13.2kv 7.6 Kv
Product Description
Summarization
Single phase pad mounted transformer is oil-immersed distribution transformer.The traditional transformer is designed in a box-type shell. It has the characteristics of small size, light weight, low noise, low loss, safety and reliability.It is widely used in residential quarters, commercial centers, hospitals, parks, schools, etc.Single phase pad mounted transformers are self-cooled, available in loop or radial feed, and are dead front,Meet or exceeds ANSI /CSA/IEEE standards.
Specification
| Single phase Pad mounted Transformer Specification | ||||||||
| Rating | High voltage(kV) | No Load Loss | On load Loss | Height | Depth | Width | Oil Weight(kg) | Total Weight(kg) |
| (kVA) | (mm) | (mm) | (mm) | |||||
| 15 kVA | 34.5/19.92 13.8/8 13.2/7.6 12.47/7.2 or others |
50 | 195 | 840 | 740 | 610 | 45 | 294 |
| 25 kVA | 80 | 290 | 840 | 740 | 610 | 68 | 362 | |
| 37.5 kVA | 106 | 360 | 840 | 760 | 610 | 75 | 476 | |
| 50 kVA | 135 | 500 | 840 | 810 | 610 | 93 | 553 | |
| 75 kVA | 190 | 650 | 840 | 860 | 610 | 132 | 672 | |
| 100 kVA | 280 | 1010 | 910 | 1200 | 965 | 230 | 714 | |
| 167 kVA | 435 | 1530 | 1000 | 1200 | 965 | 265 | 913 | |
| 250 kVA | 550 | 2230 | 1250 | 1300 | 1430 | 325 | 1106 | |
Standard Features
1)single phase pad mounted transformer tank coating exceeds C57,12.8 and C57,12.29. Full compliance with IEEE C57.12.28 enclosure integrity standards.
2)Two externally clamped universal high-voltage bushing wells for loop feed operation or one externally clamped bushing well for radial feed operation .
3)Three externally clamped low-voltage bushings with threaded copper studs, including a fully insulated neutral terminal with removable ground strap .
4)Embossed bushing mounts; Recessed oil compartment bottom.
5)Threaded, flush mounted stainless steel lifting provisions.
6)Automatic pressure relief device.
7)Electrical grade mineral oil with oxidation inhibitor.
8)Removable hood with corrosion resistant stainless steel hinge pins and barrels Mild steel enclosure and detachable sill fastened with stainless steel hardware Front panel accessory mounting bracket.
9)Domed top surfaces on hood and oil compartment to prevent water retention .
10)Oil fill/oil level plug; Oil drain plug; Tank grounding provisions.
11)Corrosion resistant locking assembly with captive penta-head security bolt, floating nut and padlock provision.
Optional Accessories

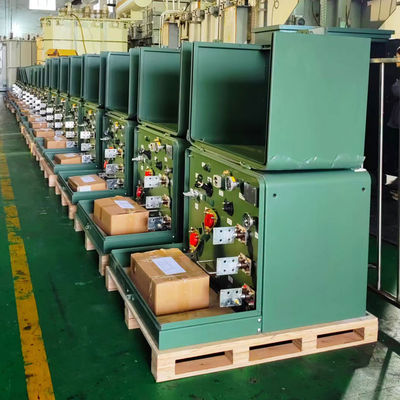

Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
