167kva 1 Phase Pad Mount Transformer Oil Immersed 12.4kv Outdoor

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: CE,ISO
Model Number: S-167k
Minimum Order Quantity: 1unit
Price: $1000-$10000
Packaging Details: Plywood case
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 1000set/month
Detail Information
Phase: Single Phase Type: Pad Mounted, Compartmental
Frequency: 50Hz/60Hz Impedance Voltage: ≤4.5%
Insulation Class: E Rated Capacity: 167KVA Or Customize
Winding Material: Copper Efficiency: 99.10%
High Light:

1 Phase Pad Mounted Transformer


12.4kv Pad Mounted Transformer


167kva Oil Immersed Transformer

Product Description

15KVA 50KVA 100 KVA 167KVA 1 Phase Pad Mount Transformer Oil Immersed 12.4KV





1)Single phase pad mounted transformers are placed inside a cabinet with doors and locks, usuallylocated outdoors. These transformers are manulactured with ratings from 15-250 kVA.
2)Al of these distribution transformers are oil-insulated, sef-cooled,available in loop or radial feed, and are dead-front
3)These transformers come in two basic configurations radia and loop feed,which are selectied based on the type of circuit on which the transformers wil be insalled.

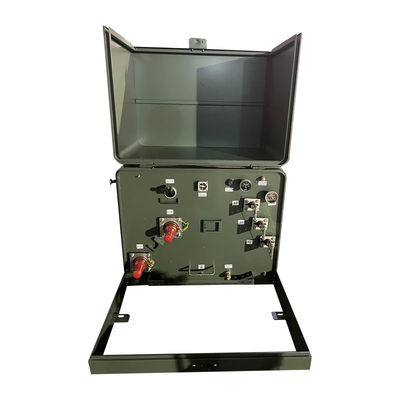

167kva 1 Phase Pad Mount Transformer Oil Immersed 12.4kv Outdoor 0



1)single phase pad mounted transformer tank coating exceeds C57,12.8 and C57,12.29. Full compliance with IEEE C57.12.28 enclosure integrity standards.
2)Two externally clamped universal high-voltage bushing wells for loop feed operation or one externally clamped bushing well for radial feed operation .
3)Three externally clamped low-voltage bushings with threaded copper studs, including a fully insulated neutral terminal with removable ground strap .
4)Embossed bushing mounts; Recessed oil compartment bottom.
5)Threaded, flush mounted stainless steel lifting provisions.
6)Automatic pressure relief device.
7)Electrical grade mineral oil with oxidation inhibitor.
8)Removable hood with corrosion resistant stainless steel hinge pins and barrels Mild steel enclosure and detachable sill fastened with stainless steel hardware Front panel accessory mounting bracket.
9)Domed top surfaces on hood and oil compartment to prevent water retention .
10)Oil fill/oil level plug; Oil drain plug; Tank grounding provisions.
11)Corrosion resistant locking assembly with captive penta-head security bolt, floating nut and padlock provision.

167kva 1 Phase Pad Mount Transformer Oil Immersed 12.4kv Outdoor 1



25kva-500kva single phase pad mounted transformer
Rated Cap acity(kVA) High Low Voltage(v) Connection Symbol Standard Short-circuit impedance(%) Efficiency
Voltage(v) (%)
25 4160 7200 12000 12470 13200 13800 19920 24940 34500 110 220 230 400 480 II0,II6 IEEE/ANSI/ DOE 1.0-4.5% 98.95
37.5 99.05
50 99.11
75 99.19
100 99.25
167 99.33
250 99.39
333 99.43
500 99.49
