| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WINLEY |
| Certification: | CE,ISO |
| Model Number: | SCB10-6500/33 |
| Minimum Order Quantity: | 1unit |
| Price: | $1000-$10000 |
| Packaging Details: | Plywood case |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 1000set/month |
| Type: | Dry Type, Cast Resin | Rated Capacity: | 6500KVA Or Customize |
|---|---|---|---|
| Cooling Method: | AN/AF | Frequency: | 50/60Hz |
| Insulation Level: | F/H | Winding Material: | Aluminum/Copper |
| Rated Voltage: | 6-35KV | Temperature Rise: | 100℃ |
| High Light: | 3Phase Dry Transformer,6500K Cast Coil Dry Transformer,Epoxy Resin Dry Transformer |
||

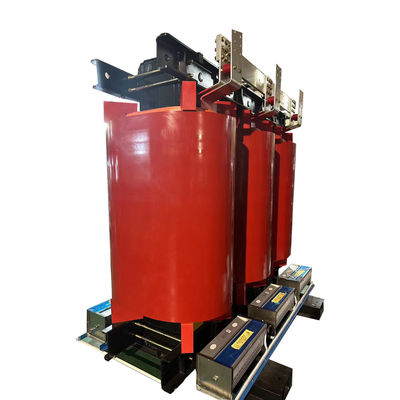

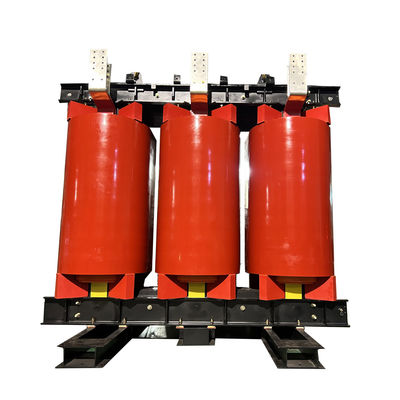

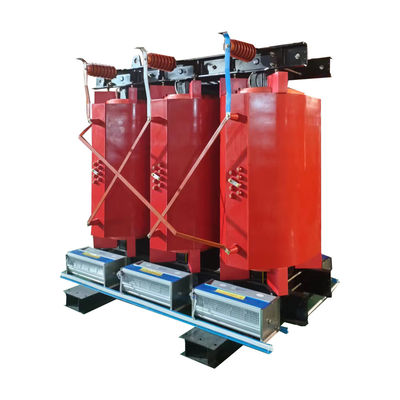

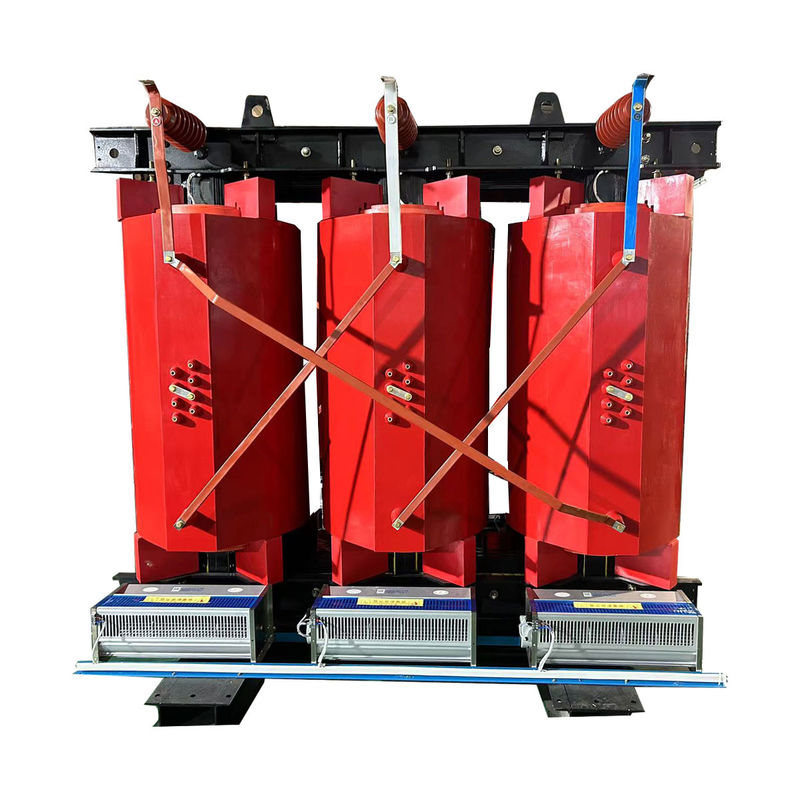

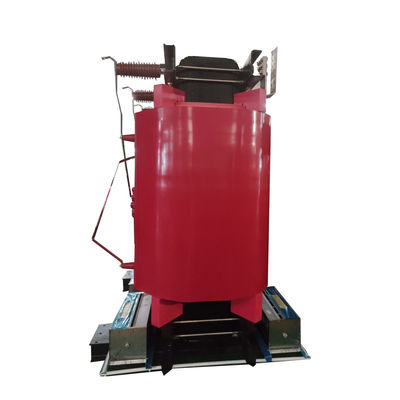

6500K 3 Phase Dry Transformer Cast Coil Dry Transformer Epoxy Resin
Main Data
| Type | Dry type, cast resin |
| Model Number | SCB10-2000KVA/33~0.4KV |
| Phases | single or three phase |
| Rated capacity | 50-6300KVA |
| Insulation Type | F/H |
| Cooling Method | AN/AF |
| Primary voltage | 12/24/33KV |
| Secondary voltage | 400/230V |
| Vector Group | Dyn11,Yyn0 |
| Tapping Range | ±2×2.5 |
| Rated frequency | 50Hz/60Hz |
| Temperature rise | 100℃ |
| Impedance | 9% |
| No-load loss | 10930W |
| On-load loss(120℃) | 55320W |
| Winding material | Aluminum or Copper |
| IP rate | IP00 to IP54 |
| Fireproof class | F1 |
| Core material | Silicon steel |
| Standard | ANSI,IEC |
| Certified | CE/ISO |
Performance Characteristic
1)Moisture-proof and corrosion-resistant ability , and it can run normally at 100%humidity,especially for work in extreme environmental conditions.
2)Lost loss, small local discharge, small noise, and strong heat dissipation capacity, can run 150%of the rated load operation.
3)High the whole mechanical strength of the cast coil withstand sudden short -circuit capability.
4)Safe, fire prevention, no pollution, can be installed directly in the load center.
5)Simple maintenance and installation, low comprehensive operating costs.
Specification
| Rated capacity | High Voltage | Low | Connection Symbol | No-Load Loss | On-Load Loss | No Load Current | Weight | Short Circuit Impendence |
| (KVA) | (KV) | Voltage | (W) | (W) | (%) | (KG) | (%) | |
| (KV) | ||||||||
| 10 | 6 | 0.4 | Dyn11 | 0.15 | 0.325 | 4.1 | 130 | 4 |
| 30 | 6.3 | Yyn0 | 0.215 | 0.75 | 3.2 | 260 | ||
| 50 | 10 | 0.305 | 1.055 | 2.8 | 315 | |||
| 80 | 10.5 | 0.415 | 1.46 | 2.6 | 470 | |||
| 100 | 11 | 0.45 | 1.665 | 2.4 | 520 | |||
| 125 | 0.53 | 1.955 | 2.2 | 585 | ||||
| 160 | 0.61 | 2.25 | 2.2 | 670 | ||||
| 200 | 0.7 | 2.675 | 2 | 790 | ||||
| 250 | 0.81 | 2.915 | 2 | 920 | ||||
| 315 | 0.99 | 3.67 | 1.8 | 1085 | ||||
| 400 | 1.1 | 4.22 | 1.8 | 1320 | ||||
| 500 | 1.305 | 5.165 | 1.8 | 1520 | ||||
| 630 | 1.46 | 6.31 | 1.6 | 1820 | 6 | |||
| 800 | 1.71 | 7.36 | 1.6 | 2105 | ||||
| 1000 | 1.99 | 8.6 | 1.4 | 2550 | ||||
| 1250 | 2.35 | 10.26 | 1.4 | 2900 | ||||
| 1600 | 2.755 | 12.42 | 1.4 | 3490 | ||||
| 2000 | 3.735 | 15.3 | 1.2 | 4220 | ||||
| 2500 | 4.5 | 19.53 | 1.2 | 4955 |
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
