100kVA Single Phase Oil Type Transformer Pad Mounted 12.47KV 120V

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: CE,ISO
Model Number: D-100/12
Minimum Order Quantity: 1unit
Price: $1000-$10000
Packaging Details: Plywood case
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 1000set/month
Detail Information
Cooling Method: ONAN Frequency: 50Hz/60Hz
Insulation Level: A/E Noise Level: ≤58dB
Product Name: Oil Type Transformer Rated Capacity: 100KVA
Primary Voltage: 12470V Second Voltage: 120/240V
High Light:

100kVA Oil Type Transformer


Oil Type Transformer 120V


ONAN Cooling Single Phase Transformer

Product Description

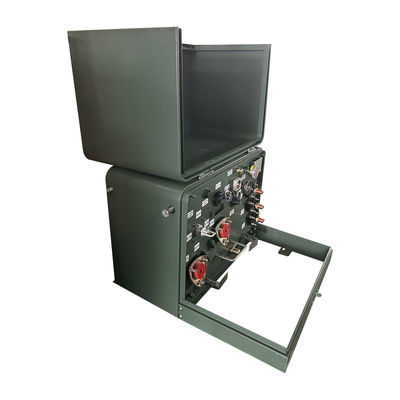

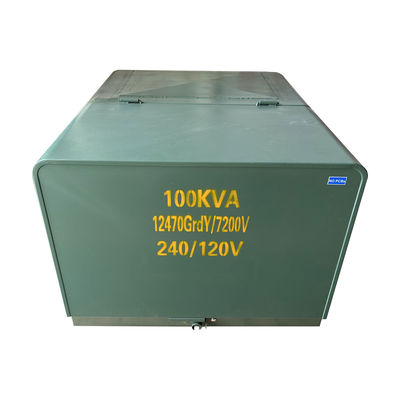

100kVA Single Phase Oil Typer Transformer Pad Mounted 12.47KV 120V




1) Two externally clamped universal high-voltage bushing wells for loop feed operation or one externally clamped bushing well for radial feed operation
2) Three externally clamped low-voltage bushings with threaded copper studs, including a fully insulated neutral terminal with removable ground strap
3) Embossed bushing mounts; Recessed oil compartment bottom
Threaded, flush mounted stainless steel lifting provisions
4) Automatic pressure relief device
5) Electrical grade mineral oil with oxidation inhibitor
6) Removable hood with corrosion resistant stainless steel hinge pins and barrels
7) Mild steel enclosure and detachable sill fastened with stainless steel hardware
8) Front panel accessory mounting bracket;
9) Domed top surfaces on hood and oil compartment to prevent water retention
10) Oil fill/oil level plug; Oil drain plug; Tank grounding provisions
11) Corrosion resistant locking assembly with captive penta-head security bolt, floating nut and padlock provision
12) Decal or stenciled bushing designations
13) Laser engraved anodized aluminum nameplate
14) Meets or exceeds current ANSI, IEEE, NEMA, CSA, and DOE standards as applicable


100kVA Single Phase Oil Type Transformer Pad Mounted 12.47KV 120V 0




25kva-500kva single phase pad mounted transformer
Rated Cap acity(kVA) High Low Voltage(v) Connection Symbol Standard Short-circuit impedance(%) Efficiency
Voltage(v) (%)
25 4160 7200 12000 12470 13200 13800 19920 24940 34500 110 220 230 400 480 II0,II6 IEEE/ANSI/ DOE 1.0-4.5% 98.95
37.5 99.05
50 99.11
75 99.19
100 99.25
167 99.33
250 99.39
333 99.43
500 99.49


Production process


100kVA Single Phase Oil Type Transformer Pad Mounted 12.47KV 120V 1 225 KVA Pad Mount Three Phase Oil Type Transformer 4160V To 480 1 225 KVA Pad Mount Three Phase Oil Type Transformer 4160V To 480 2
