100 KVA Single Phase Pad Mount Transformer Oil Type 12470GrdY

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: ISO,CE
Model Number: 100KVA
Minimum Order Quantity: 1unit
Price: $1000-$150000
Packaging Details: Plywood case
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 1000set/month
Detail Information
Phase: Single Rated Capacity: 100Kva
Cooling Method: ONAN; Self-Cooled Frequency: 60 Hz
Impedance: 4.5% Insulation Class: E
Temperature Rise: 65°C Material: Copper/Aluminium
High Light:

Single Phase Pad Mount Transformer


100KVA Pad Mount Transformer


12470GrdY Oil Type Transformer

Product Description

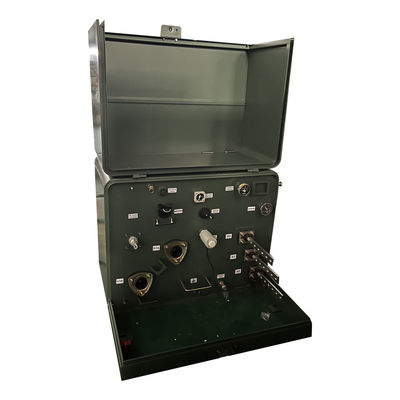

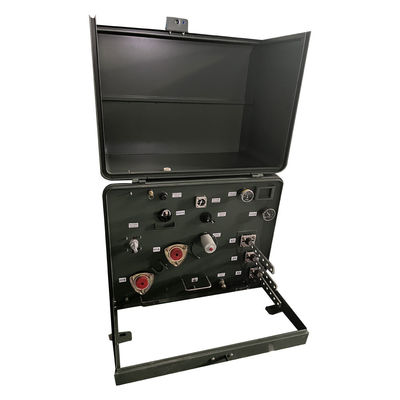

100 KVA Single Phase Pad Mount Transformer Oil Type 12470GrdY





Single phase pad mounted transformer is oil-immersed distribution transformer. The traditional transformer is designed in a box-type shell. It has the characteristics of small size, light weight, low noise, low loss, safety and reliability. It is widely used in residential quarters, commercial centers, hospitals, parks, schools, etc.Single phase pad mounted transformers are self-cooled, available in loop or radial feed, and are dead front. Meet or exceeds ANSI /CSA/IEEE standards.




1.Two externally clamped universal high-voltage bushing wells for loop feed operation or one externally clamped bushing well for radial feed operation.
2.Three externally clamped low-voltage bushings with threaded copper studs, including a fully insulated neutral terminal with removable ground strap.
3.Embossed bushing mounts; Recessed oil compartment bottom.
4.Automatic pressure relief device.
5.Electrical grade mineral oil with oxidation inhibitor.
6.Domed top surfaces on hood and oil compartment to prevent water retention.
7.Oil fill/oil level plug; Oil drain plug; Tank grounding provisions.
8.Corrosion resistant locking assembly with captive penta-head security bolt, floating nut and padlock provision.




Rated Capacity Voltage Ratio Vector Group No-load Losses(kw) Impedance
30kva 380v/3kv/6kv/11kv/33kv Dyn11/Yd11/Yyno 0.1 4%
50kva 380v/3kv/6kv/11kv/33kv Dyn11/Yd11/Yyno 0.13 4%
100kva 380v/3kv/6kv/11kv/33kv Dyn11/Yd11/Yyno 0.2 4%
200kva 380v/3kv/6kv/11kv/33kv Dyn11/Yd11/Yyno 0.34 4%
315kva 380v/3kv/6kv/11kv/33kv Dyn11/Yd11/Yyno 0.42 4%
500kva 380v/3kv/6kv/11kv/33kv Dyn11/Yd11/Yyno 0.6 4%
1000kva 380v/3kv/6kv/11kv/33kv Dyn11/Yd11/Yyno 1.15 4.50%
1250kva 6kv/11kv/33kv Dyn11/Yd11/Yyno 2 4.50%
2500kva 11kv/33kv Dyn11/Yd11/Yyno 2.3 4.50%
4000kva 11kv/33kv Dyn11/Yd11/Yyno 2.8 4.50%


Production process


100 KVA Single Phase Pad Mount Transformer Oil Type 12470GrdY 0100 KVA Single Phase Pad Mount Transformer Oil Type 12470GrdY 1100 KVA Single Phase Pad Mount Transformer Oil Type 12470GrdY 2




1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
