| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WINLEY |
| Certification: | ISO,CE |
| Model Number: | 5600KVA |
| Minimum Order Quantity: | 1unit |
| Price: | $1000-$150000 |
| Packaging Details: | Plywood case |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 1000set/month |
| Type: | Dry Type, Cast Resin | Rated Capacity: | 5600Kva Or Customized |
|---|---|---|---|
| Insulation Class: | F/H | Frequency: | 50/60Hz |
| Cooling Method: | AN/AF | Impedance Voltage: | 8% |
| Winding Material: | Aluminum/Copper | Standard: | ANSI,IEC |
| High Light: | 5600kva Cast Resin Transformer,Dry Type Cast Resin Transformer,Dry Type Transformer 33kv |
||

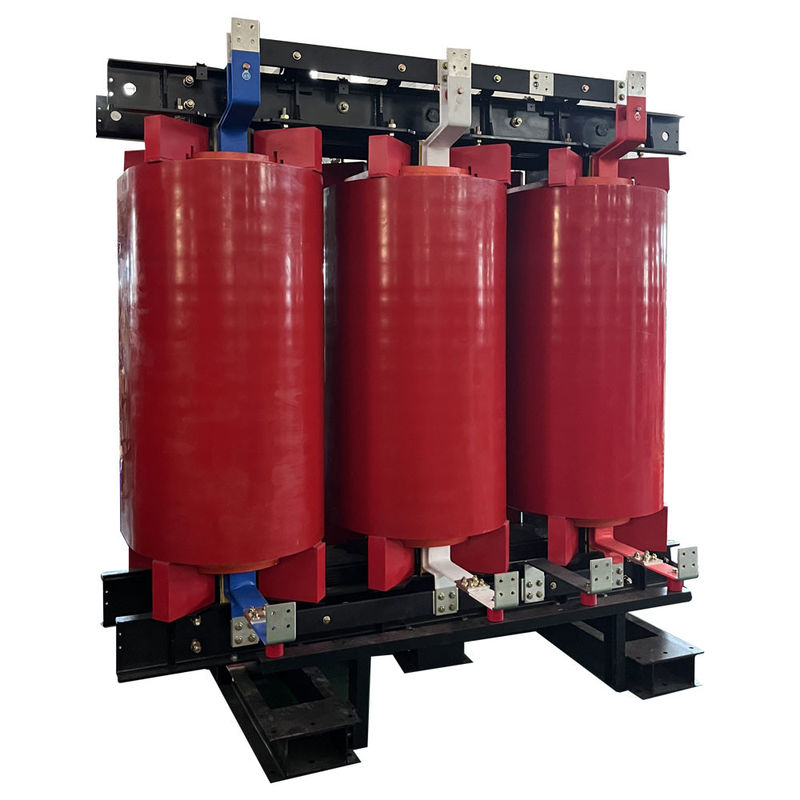

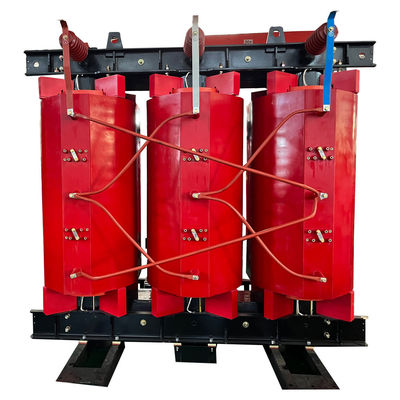

5600kva Three Phase Cast Resin Dry-Type 33kv Transformer
Performance Characteristic
1.It is safe,fireproof,pollution-free,and can be directly operated in the load center.
2.High mechanical strength,strong short-circuit resistance,small partial discharge,good thermal stability,high reliability and long service life.
3.Low loss,low noise,obvious energy saving effect,maintenance-free.
4.Good moisture resistance.
Feature
Box coil: The low -voltage winding uses the entire copper foil, along with the F -class turning insulation on the dedicated low -pressure foil winding machine. Foil coils are well solved with low pressure, large -current coils around the product, large stress, unbalanced amnf -balancing, poor heat dissipation effects, and outstanding problems such as winding spiral angles, and unstable artificial welding quality. At the same time, the DAELIM transformer winding is seized with resin, solidified and shaped, and moisture -proof and pollution -proof. The bronze volume of the lead is automatically welded by the arc welding.
Specification
| Series 35kV Expoxy resin dry type transformer | |||
| Rated Capacity | No load Loss(W) | Load Loss(W) | No Load current(%) |
| 100kVA | 700 | 2200 | 2.4 |
| 160kVA | 880 | 2960 | 1.8 |
| 200kVA | 980 | 3500 | 1.8 |
| 250kVA | 1100 | 4000 | 1.6 |
| 315kVA | 1310 | 4750 | 1.6 |
| 400kVA | 1530 | 5700 | 1.4 |
| 500kVA | 1800 | 7000 | 1.4 |
| 630kVA | 2070 | 8100 | 1.2 |
| 800kVA | 2400 | 9600 | 1.2 |
| 1000kVA | 2700 | 11000 | 1 |
| 1250kVA | 3150 | 13400 | 0.9 |
| 1600kVA | 3600 | 16300 | 0.9 |
| 2000kVA | 4250 | 19200 | 0.9 |
| 2500kVA | 4950 | 23000 | 0.9 |
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
