Single Phase Pad Mounted Transformer

25Kva Single Phase Pad Mounted Transformer Oil Type 12470GrdY/7200 To 120V Class E

All Category

Three Phase Isolation Transformer

Three Phase Pad Mounted Transformer

Single Phase Pad Mounted Transformer

Industrial Control Transformer

Single Phase Control Transformer

Toroidal Isolation Transformer

Three Phase Dry Type Transformer

Three Phase Reactor

Mr. Steven

steven@winley-electric.com

86-18650108051

Contact Now

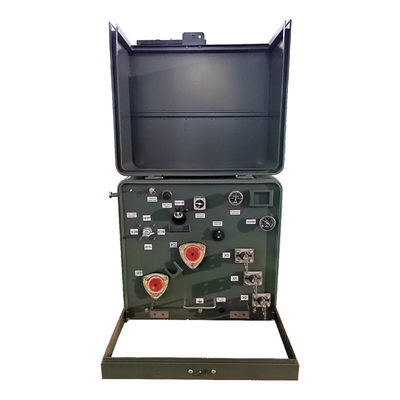

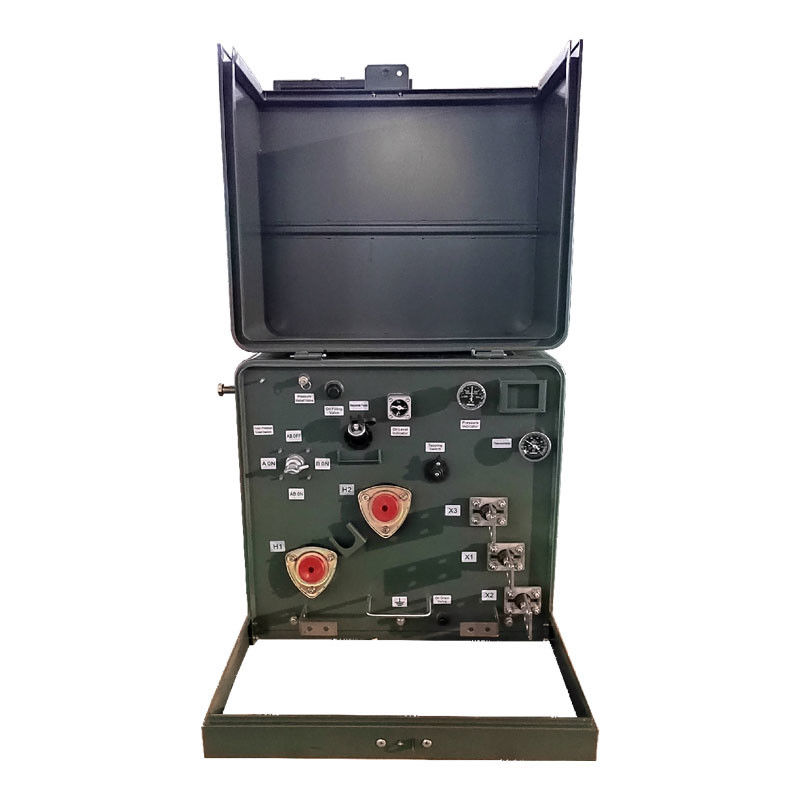

25Kva Single Phase Pad Mounted Transformer Oil Type 12470GrdY/7200 To 120V Class E

Brand Name:	WINLEY
Model Number:	25KVA
MOQ:	1unit
Price:	$1000-$150000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,CE

Phase:

Single

Rated Capacity:

25Kva Or Customized

Primary Voltage:

12470GrdY/7200

Secondary Voltage:

120/240 V

Impedance Voltage:

4～5.5%

Insulation Rating:

Frequency:

Cooling:

KNAN / ONAN; Self-Cooled

Supply Ability:

1000set/month

Highlight:

25Kva Pad Mount Transformer

Pad Mount Transformer 10Kv

Oil Type Single Phase Transformer

Product Description

25Kva Single Phase Pad Mount Transformer Oil Type 10Kv

Main data

Transformer Type	Pad Mounted, Compartmental-Type II
Phase	Single Phase
Capacity	25 KVA
Vector Group	II6
Primary Voltage	12470GrdY/7200
Secondary Voltage	120/240 V (L-N-L)
Frequency	60 Hz
Temperature Rise	65°C
Insulation Rating	Class E Insulation - 120°C, 248°F
Cooling Class	KNAN; Self-Cooled
Impedance	1.0 - 4.5% Typical
Primary Connection Type	Dead Front
Primary Termination Arrangement	ANSI Type II Arrangement
Ambient Temperature Rating	40°C
Sound Level	48 dBA
Elevation (Altitude)	3300ft (1000 meters) Above Sea Level or Below
Core Material	Grain Oriented Steel
Tank Material	Coated Steel
Efficiency	98.80%

Performance Characteristic

Combination Transformer Substation, The top of cabinet is with steel plate clamp rock wool structure which has ventilation duct, can reduce the solar radiation effectively and ensure the heat dissipation. The surface of whole cabinet shell sprays special primer and paint which has strong anti-corrosion ability. The inside can be divided into high voltage chamber, transformer chamber and low voltage chamber respectively. Also it is be equipped with temperature control automatic exhaust device to ensure the temperature range. Each unit has impeccable control, charged display and lighting system. The apparatus equipment are accord with IP33 protection requirement, have reasonable design,structure and technology, with good quality and easy maintenance.
