Cast Resin Distribution Power Transformers Dry Type Explosion Proof 50 Kva

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: ISO,CE
Model Number: SC-50KVA
Minimum Order Quantity: 1unit
Price: $1000-$100000
Packaging Details: Plywood case
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 1000set/month
Detail Information
Type: Dry Type Transformer Capacity: 50 KVA To 4000 KVA Available
Connection Group: Dyn11/Yyn0 Frequency: 50Hz/60Hz
Cooling Method: Natural Or Air Cooling Material: Copper Winding
Primary Voltage: 10KV Or Customized Secondary Voltage: 0.4KV Or Customized
High Light:

Cast Resin Distribution Power Transformers


Dry Type Distribution Power Transformers


Cast Resin Transformer 50Kva

Product Description

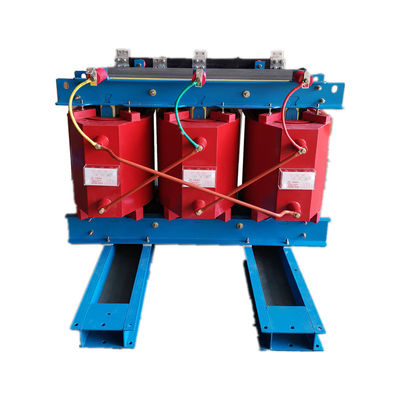

50 kva Dry Type Explosion-proof Cast Resin Distribution Power Transformers





1) The transformer shell is epoxy poured towithstand high temperature/goodoverload ability and insulation.

2) High quality terminal, with wiringinstructions, easy installation.

3) Withstand high temperature, energy savingand noise reduction, not easy to corrosion,stable performance.




Transformer Type Cast Resin Dry Type Transformer
Rated Capacity 50 KVA to 4000 KVA Available
Rated Voltage(HV/LV) 10kV Or customized
Frequency 50Hz/60Hz
Impedance 4~6%
Cooling Way AN/AF
Tapping Range +2X2.5%/-2X2.5%
Vector Group Dyn11
Winding Material Copper
Core Materials Silicon Steel
Insulation Level as Per IEC Standard
Temperature Rise 125K
Accessories Fans, Enclosure
Optional Protective Enclosure IP00/IP20/IP23/Cutomized
Lightning Impulse Withstand Voltage as Per IEC Standard
Winding Type Two-winding
Customization is acceptable.


Production process


Full-Load Design Three Phase Power Auto Transformer CRGO 50/60Hz 0

Cast Resin Distribution Power Transformers Dry Type Explosion Proof 50 Kva 1

Cast Resin Distribution Power Transformers Dry Type Explosion Proof 50 Kva 2Cast Resin Distribution Power Transformers Dry Type Explosion Proof 50 Kva 3




1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo(MOQ:≥10pcs).
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
