167KVA Single Phase Oil Type Transformer 34500V 19920V 480Y 277V

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: ISO,CE
Model Number: ZGDW-167
Minimum Order Quantity: 1
Price: $15-$60000
Packaging Details: Plywood case
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 1000unit per month
Detail Information
Coil Number: Two Phase: Single
Frequency: 60Hz Color: Munsell Green
Primary: 34500V 19920V Secondary: 480Y 277V
Capacity: 167KVA Cooling Method: ONAN
High Light:

167KVA Oil Type Transformer

,

Single Phase Oil Type Transformer 34500V

,

Single Phase Transformer 277V


Product Description

167KVA Single phase Oil Type Transformer 34500V 19920V 480Y 277V



Features:



• Meet or exceeds ANSI®, IEEE® and NEMA® standards
• Meets DOE Energy Efficiency Standard 10 CFR Part 431 for distribution transformers
• Tank coating exceeds IEEE Std C57.12.28™-2005 and IEEE Std C57.12.29™-2005 standards (stainless steel units only)
• Full compliance with IEEE Std C57.12.28™-2005 standard enclosure integrity requirements
• Laser engraved nameplate
• Recessed stainless steel lifting provisions
• Tank grounding provisions
• Automatic pressure relief device
• Electrical grade mineral oil
• Hinged door with stainless steel hinge pins and barrels
• Floating lock pocket for easy alignment
• Captive stainless steel pentahead door locking bolt
• Oil fill and drain provisions
• Removable sill
• Welded domed tank cover
• High-voltage bushing wells - 200 A



Specification:

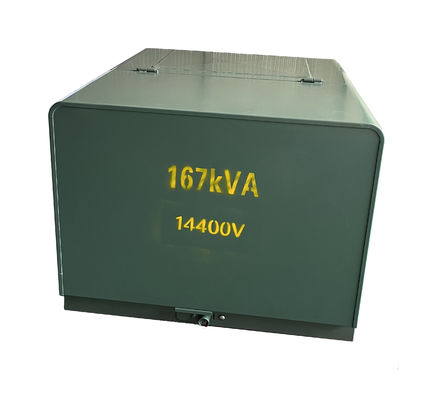

167KVA 1 Phase Oil Type Transformer pad mount 24940V 14400V 0



167KVA Single Phase Oil Type Transformer 34500V 19920V 480Y 277V 1



Description:



kVA: 10-167
Primary Voltage: 2400-19,920 V
Secondary Voltage: 120-600 V
• One piece high-voltage bushings
• High-voltage bushing wells with removable studs
• Envirotemp™ FR3™ fluid where less-flammable fluid is required and where superior enviromental characteristics are desired
• Special designs to meet international specifications are also available
• Loadbreak switches
• Drain/sampling valve
• Pressure vacuum gauge
• Liquid level gauge
• Temperature gauge



2500KVA Three Phase Oil Type Transformer Pad mounted Live Front Dead Front 0

2500KVA Three Phase Oil Type Transformer Pad mounted Live Front Dead Front 1

FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
