Arc Three Phase Dry Type Reactor 440V 400KW Microwave Hydrogenation

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: ISO,CE
Model Number: 400KW
Minimum Order Quantity: 1unit
Price: $20-$8000
Packaging Details: Plywood case
Delivery Time: 10-15days
Payment Terms: T/T
Supply Ability: 10000units/month
Detail Information
Usage: Microwave Hydrogenation Type: Dry Type
Voltage: 440V Power: 400KW
Current: 1A-2000A Insulation Class: F/H
Protection: IP20 Cooling: Air Cooling
High Light:

dry type reactor 440V


Microwave Hydrogenation 3 phase reactor


dry type reactor 400KW

Product Description

Dry Type Arc Three Phase Reactor 440V 400KW Microwave Hydrogenation





1.Good heat dissipation performance.

2.High quality copper,tin plated surface,strong electrical conductivity,oxidation resistance,flame retardant,strong insulation performance.

3. Reasonable and scientific design and structure,so that the product has high filtering,low loss,low noise and other advantages.




Rated voltage: 250, 440V, 480V, 525V (customizable) Reactance rate: 4.5%,5.6%, 6%, 7%, 13.5%, 14% (customizable)
Phase number: single phase or three-phase Inductance: Ln + 3%, + 5%
Rated frequency: 50Hz (for 60Hz to be specified) Stable over current: 1.35In
Voltage test: winding to ground 3KV/1min Temperature rise: coil temperature rise≤80K
Loss:≤15W/kVAr Operating environment: -40° to 50°, relative humidity no more than 90%
Temperature protection:105℃ or 130℃ normally closed Insulation class: F or H
Noise:≤50dB Protection grade: IP00, indoor use
Linearity:1.8In Installation spacing: 30mm

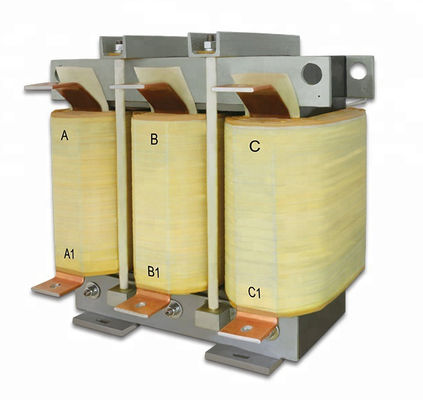

Arc Three Phase Dry Type Reactor 440V 400KW Microwave Hydrogenation 0

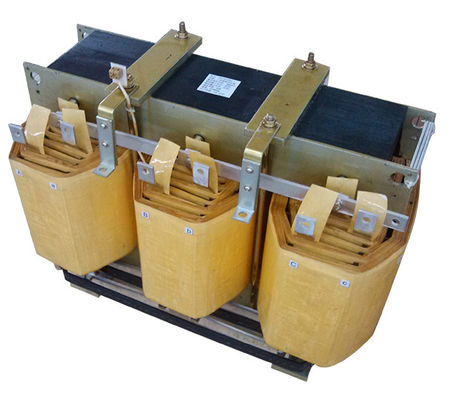

Arc Three Phase Dry Type Reactor 440V 400KW Microwave Hydrogenation 1




1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
