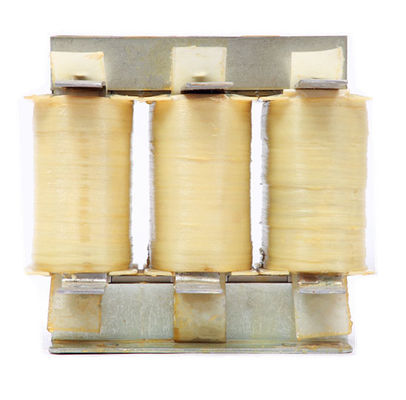

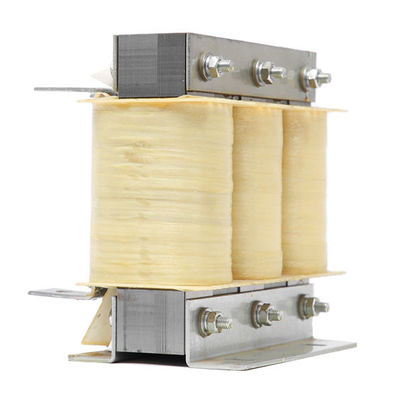

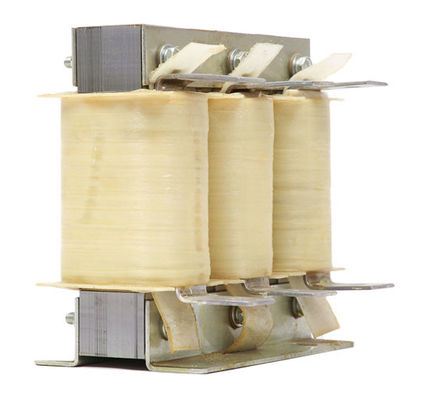

Filter Electric Three Phase Reactor 100Kvar 250A F Class 5mH
Features
1. The loop of series reactors can still play a reactive power compensation, but the capacity of the compensation is less than the series reactor, and the capacity of the series reactor is reduced.
2. Series reactor will increase the voltage on the capacitor. The capacity of the series reactors is determined by the increase of the number of the reactors.. This must be taken into account when selecting a capacitor model.
Specification
Capacitance (kVar) | Reactor Capacity (War) | Rated Current (A) |
Inductance (mH) |
Dimension L*D*H (mm) |
Installation size A*B (mm) |
Installation size (mm) |
1.5-2.2 | 10 | 2% | 1.4 | 160*120*160 | 80*60 | 10*18 |
3.7·5.5 | 15 | 2% | 0.934 | 160*135*140 | 80*60 | 10*18 |
7.5 | 20 | 2% | 0.7 | 160*135*140 | 80*60 | 10*18 |
11 | 30 | 2% | 0.467 | 160*135*140 | 80*60 | 10*18 |
15 | 40 | 2% | 0.36 | 160*135*140 | 80*60 | 10*18 |
18-18.5 | 50 | 2% | 0.28 | 160*140*140 | 80*75 | 10*18 |
22 | 60 | 2% | 0.233 | 160*140*140 | 80*75 | 10*18 |
30 | 80 | 2% | 0.175 | 160*150*140 | 80*85 | 10*18 |
37 | 90 | 2% | 0.156 | 160*150*140 | 80*85 | 10*18 |
45 | 120 | 2% | 0.117 | 160*160*140 | 80*95 | 10*18 |
55 | 150 | 2% | 0.093 | 225*150*190 | 120*85 | 12*20 |
75 | 200 | 2% | 0.07 | 225*150*190 | 120*85 | 12*20 |
90-93 | 230 | 2% | 0.061 | 225*160*190 | 120*95 | 12*20 |
110 | 250 | 2% | 0.056 | 225*160*190 | 120*95 | 12*20 |
132 | 290 | 2% | 0.048 | 260*170*250 | 135*85 | 12*20 |
160 | 330 | 2% | 0.042 | 260*170*250 | 135*95 | 12*20 |
185 | 390 | 2% | 0.036 | 260*180*250 | 135*95 | 12*20 |
220 | 490 | 2% | 0.029 | 290*200*310 | 135*95 | 12*20 |
240-250 | 530 | 2% | 0.026 | 290*200*310 | 135*95 | 12*20 |
280 | 600 | 2% | 0.023 | 290*210*310 | 135,105 | 12*20 |
300-315 | 660 | 2% | 0.021 | 290*210*310 | 135*105 | 12*20 |
350-355 | 720 | 2% | 0.019 | 290*230*310 | 135*125 | 12*20 |
380 | 800 | 2% | 0.018 | 290*230*310 | 135*125 | 12*20 |
450 | 1,000 | 2% | 0.014 | 360*220*420 | 160*120 | 12*20 |
550 | 1,250 | 2% | 0.011 | 360*230*420 | 160*130 | 12*20 |
630 | 1,600 | 2% | 0.009 | 360*260*420 | 160*160 | 12*20 |
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo(MOQ:≥10pcs).
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
