Three Phase Reactor
>

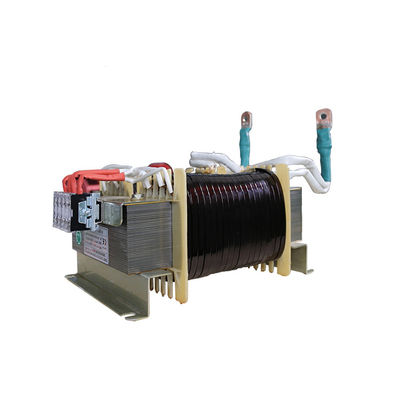

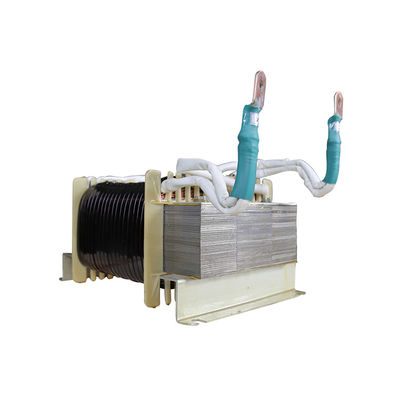

Low Voltage 400V 3 Phase Reactor 6% 25Kvar 1.93mH 1A To 2000A

Low Voltage 400V 3 Phase Reactor 6% 25Kvar 1.93mH 1A To 2000A

Brand Name: WINLEY
Model Number: 25Kvar/6
MOQ: 1unit
Price: $20-$8000
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Certification:
ISO,CE
Type:
Low Voltage
Power:
25Kvar
Voltage:
400V
Rate:
6%
Inductance:
1.93mH
Current:
1A To 2000A
Coil:
Copper Wire
Cooling:
AN
Supply Ability:
10000units/month
Highlight:

Low Voltage 3 phase reactor

,

25Kvar ac output reactor

,

400V 3 phase reactor

Product Description

Low Voltage 400V Three Phase Reactor 6% 25Kvar 1.93mH 1A To 2000A





Features



1.Insulation Resistance>1000VDC, Insulation resistance value >100MΩ.

2.Noise of the reactor is less than 65dB ( Tested at the point with a horizontal distance of 1 meter away from the reactor).

3.Level of protection:IP00

4.Insulation class: Above F



Specification





Capacitance (kVar) Reactor Capacity (War) Rated Current
(A)
Inductance (mH)

Dimension

L*D*H (mm)

Installation size
A*B (mm)
Installation size (mm)
1.5-2.2 10 2% 1.4 160*120*160 80*60 10*18
3.7·5.5 15 2% 0.934 160*135*140 80*60 10*18
7.5 20 2% 0.7 160*135*140 80*60 10*18
11 30 2% 0.467 160*135*140 80*60 10*18
15 40 2% 0.36 160*135*140 80*60 10*18
18-18.5 50 2% 0.28 160*140*140 80*75 10*18
22 60 2% 0.233 160*140*140 80*75 10*18
30 80 2% 0.175 160*150*140 80*85 10*18
37 90 2% 0.156 160*150*140 80*85 10*18
45 120 2% 0.117 160*160*140 80*95 10*18
55 150 2% 0.093 225*150*190 120*85 12*20
75 200 2% 0.07 225*150*190 120*85 12*20
90-93 230 2% 0.061 225*160*190 120*95 12*20
110 250 2% 0.056 225*160*190 120*95 12*20
132 290 2% 0.048 260*170*250 135*85 12*20
160 330 2% 0.042 260*170*250 135*95 12*20
185 390 2% 0.036 260*180*250 135*95 12*20
220 490 2% 0.029 290*200*310 135*95 12*20
240-250 530 2% 0.026 290*200*310 135*95 12*20
280 600 2% 0.023 290*210*310 135,105 12*20
300-315 660 2% 0.021 290*210*310 135*105 12*20
350-355 720 2% 0.019 290*230*310 135*125 12*20
380 800 2% 0.018 290*230*310 135*125 12*20
450 1,000 2% 0.014 360*220*420 160*120 12*20
550 1,250 2% 0.011 360*230*420 160*130 12*20
630 1,600 2% 0.009 360*260*420 160*160 12*20





Production process

Low Voltage 400V 3 Phase Reactor 6% 25Kvar 1.93mH 1A To 2000A 0

Low Voltage 400V 3 Phase Reactor 6% 25Kvar 1.93mH 1A To 2000A 1



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
