| Brand Name: | WINLEY |
| Model Number: | 90A/0.16mH |
| MOQ: | 1unit |
| Price: | $20-$8000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T |

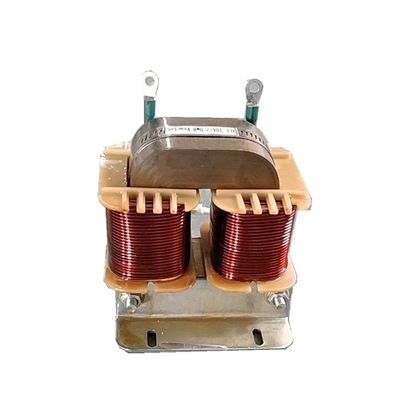

90A 0.16mH Three Phase Reactor Inductor Grid-Connected Inverter
Features
1.Rated operating Voltage: φ3/380V/50Hz
2.Rated operating current: 5A to 1600A
3.Operating environment temperature:40℃
4.Dielectric strength: Core-wingding 3000VAC/50Hz/5mA/10S No flashover breakdown(factory test)
Specification
| Rated voltage: 250, 440V, 480V, 525V (customizable) | Reactance rate: 4.5%,5.6%, 6%, 7%, 13.5%, 14% (customizable) |
| Phase number: single phase or three-phase | Inductance: Ln + 3%, + 5% |
| Rated frequency: 50Hz (for 60Hz to be specified) | Stable over current: 1.35In |
| Voltage test: winding to ground 3KV/1min | Temperature rise: coil temperature rise≤80K |
| Loss:≤15W/kVAr | Operating environment: -40° to 50°, relative humidity no more than 90% |
| Temperature protection:105℃ or 130℃ normally closed | Insulation class: F or H |
| Noise:≤50dB | Protection grade: IP00, indoor use |
| Linearity:1.8In | Installation spacing: 30mm |
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo(MOQ:≥10pcs).
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
|
|
