Three Phase Reactor
>

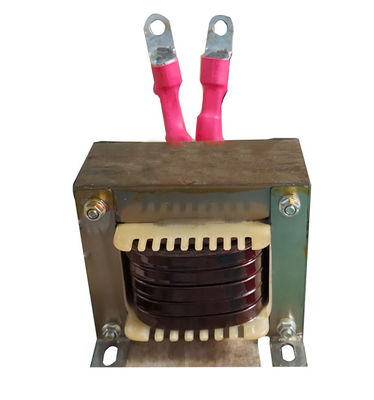

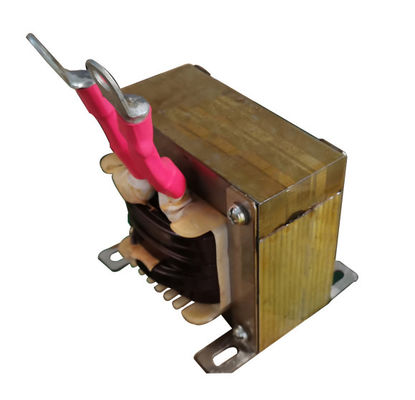

5Kvar 7.7mH Three Phase Reactor Single Phase Harmonic Filter

5Kvar 7.7mH Three Phase Reactor Single Phase Harmonic Filter

Brand Name: WINLEY
Model Number: 5Kvar/6.4
MOQ: 1unit
Price: $20-$8000
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Certification:
ISO,CE
Usage:
Capacitor
Power:
5Kvar
Inductance:
7.7mH
Phase:
Single Phase
Type:
Harmonic Filter
Insulation Class:
F
Protection:
IP00
Reactance Rate:
4.5%
Supply Ability:
100000unit/per month
Highlight:

7.7mH Three Phase Reactor

,

5Kvar Harmonic Filter Reactor

,

5Kvar Three Phase Reactor

Product Description

5Kvar 7.7mH Three Phase Reactor Single Phase Harmonic Filter





Features



Capacitor in the reactive power compensation circuit are often subject to harmonic current, inrush current and overvoltage impact, resulting in the capacitor is easy to damage. Therefore, series reactor with a certain proportion, to suppress and absorb part of harmonic, can significantly improve the reliability and stability of the power supply system, in many cases, such as harmonic content, you must matching capacitors and reactors in series.



Specification



Rated voltage: 250, 440V, 480V, 525V (customizable) Reactance rate: 4.5%,5.6%, 6%, 7%, 13.5%, 14% (customizable)
Phase number: single phase or three-phase Inductance: Ln + 3%, + 5%
Rated frequency: 50Hz (for 60Hz to be specified) Stable over current: 1.35In
Voltage test: winding to ground 3KV/1min Temperature rise: coil temperature rise≤80K
Loss:≤15W/kVAr Operating environment: -40° to 50°, relative humidity no more than 90%
Temperature protection:105℃ or 130℃ normally closed Insulation class: F or H
Noise:≤50dB Protection grade: IP00, indoor use
Linearity:1.8In Installation spacing: 30mm





Production process

5Kvar 7.7mH Three Phase Reactor Single Phase Harmonic Filter 0

5Kvar 7.7mH Three Phase Reactor Single Phase Harmonic Filter 1



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
