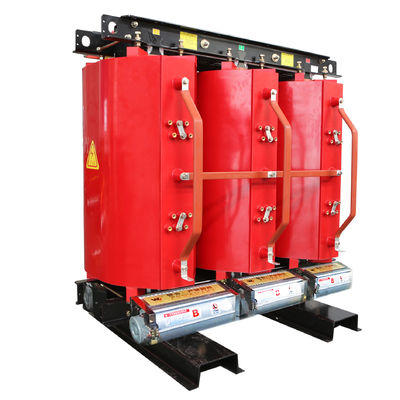

800KVA Three Coil UI Core Cast Resin Transformer 11KV To 240Y/139V

Brand Name:	WINLEY
Model Number:	800KVA
MOQ:	1unit
Price:	$500~$60000/Unit
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,CE

Coil Number:

Three Coil

Coil Structure:

UI Core

Input Voltage:

Output Voltage:

240Y/139V

Type:

Dry-type

Material:

Copper With Epoxy Resin

Vector Group:

Insulation:

Supply Ability:

1000units/month

Highlight:

800KVA Three Coil UI Core Transformer

Dry type three coil transformer

UI Core Transformer 11KV To 240Y

Product Description

800KVA Three Coil UI Core Cast Resin Transformer 11KV To 240Y/139V

Features

Our Three-phase Epoxy-resin Dry-type Transformer is in conformity with the standard of IEC726, GB/T10228-1997, with features of low loss, compact and lightweight, low noise level, damp-proof, high mechanical strength, flame resisting, strong overload ability, and low partial discharge quality. They are applicable to power transmission and distribution systems, especially to heavy load centers and places with special fire protection requirements.

Specification

800KVA Three Coil UI Core Cast Resin Transformer 11KV To 240Y/139V 0

800KVA Three Coil UI Core Cast Resin Transformer 11KV To 240Y/139V 1

800KVA Three Coil UI Core Cast Resin Transformer 11KV To 240Y/139V 2

800KVA Three Coil UI Core Cast Resin Transformer 11KV To 240Y/139V 3

FAQ

Q: How do transformers been shipped?

A: Transformers always been delivered by ship,train or truck for oversea.

Q: Can your product be customerized?

A: Considering differences in voltage, frequency and other speciality of transformer product in different countries and regions,our product can be customerized according to your requirements.

Q: Do you offer guarantee for the products?

A: Yes. We offer at least two years guarantee for all of our transformers.

Q: Do you accept FAT(Factory Acceptance Test)?

A: Yes. It’s available. We are responsible for each set transformer’s testing.

Q: Do you assign engineer for after-sale service?

A: Yes. For our products,we all show after-sale guide installation adn question inquiry.
