|Usage:||Power||Coil Number:||Double Winding|
|Insulation:||Epoxy Resin||Material:||Copper Or Aluminum|
|Primary Voltage:||12470V||Secondary Voltage:||480Y/277V|
Cast Resin Transformer Double Winding,
Cast Resin Transformer 12470V,
epoxy resin transformer 480Y/277V

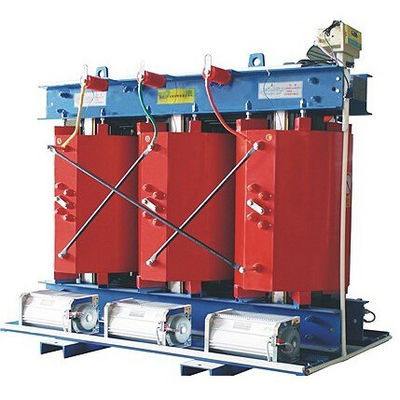

Epoxy Resin Power Cast Resin Transformer Double Winding 12470V 480Y/277V

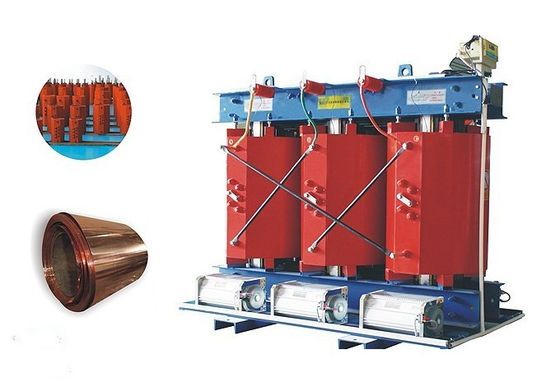

Low voltage winding applies the structure that winded by copper foil which solves the problem that the axle would point to the helix angle when winds and make the ampere-turn of winding distribute evenly. Meanwhile,the coils applies axial fan which improves the heat dispersion. between the layers of winding,it applies DMD epoxy resin preliminary dip cloth and makes it whole solidification forming.
