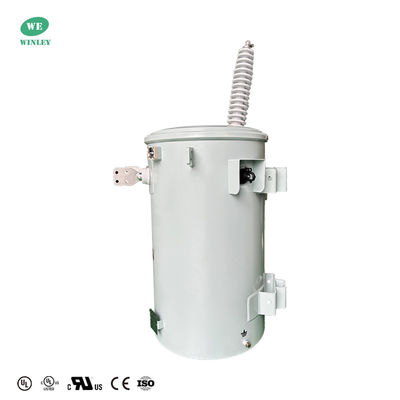

ANSI Standard Single Phase Oil Immersed Distribution Transformers 167KVA 34500V To 120V Dual Windings

Brand Name:	WINLEY
Model Number:	D-167/34.5
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Transformer Type:

Overhead Distribution Transformer

Capacity:

167 KVA

Primary Voltage:

34500V

Secondary Voltage:

120/240V

Application:

Distribution System

Frequency:

50Hz/60Hz

Winding Material:

Copper/Aluminium

Standard:

ANSI, IEEE ,DOE2016

Supply Ability:

1000set/month

Highlight:

120V Distribution Transformers

34500V Distribution Transformers

167KVA Distribution Transformers

Product Description

ANSI Standard Single Phase Oil Immersed Distribution Transformers 167KVA 34500V To 120V Dual Windings

summary

Comprehensive Product Range:WINLEY offers a complete selection of pole-mounted transformers, including both single-phase and three-phase models, catering to diverse customer needs.
Broad Capacity Spectrum:Our single-phase transformers cover a capacity range from 15 kVA to 333 kVA, while three-phase models span from 15 kVA to 500 kVA, ensuring suitability for various applications.
International Standard Compliance:All our pole-mounted transformers strictly adhere to international standards such as ANSI, IEEE, CSA, IEC60076, and others, guaranteeing high quality and reliability.
Superior Performance and Cost Savings:Thanks to optimized electrical designs and the utilization of top-grade materials and components, our transformers deliver safe, stable, and efficient operation, effectively reducing your operational costs.

ANSI Standard Single Phase Oil Immersed Distribution Transformers 167KVA 34500V To 120V Dual Windings 0

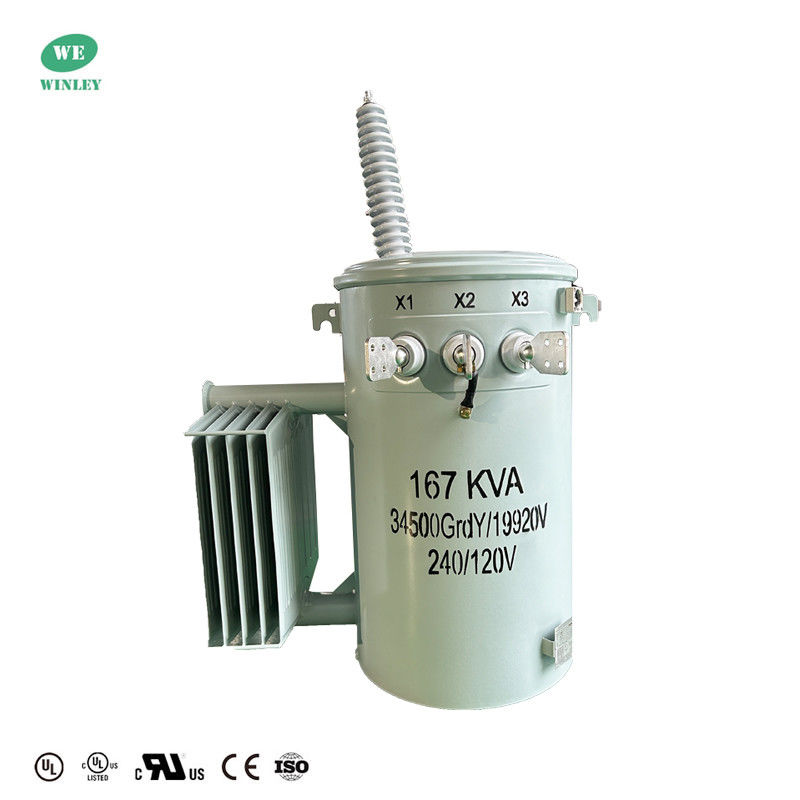

Pole Mounted Transformer Main data

Transformer Type	Overhead Distribution Transformer, Conventional Type
Phase	Single Phase
Capacity	167 KVA
Primary Voltage	34500Y/19920
Primary BIL	200 KV
Secondary Voltage	120/240V (L-N-L)
Secondary Voltage Class	1.2 kV Class
Secondary Phasor	Dual Windings, Single Phase
Secondary BIL	30 KV
Frequency	60 Hz
Temperature Rise	65°C
Insulation Rating	Class E Insulation - 120°C, 248°F
Cooling Class	ONAN; Self-Cooled
Tap Changer	±2.5%
Efficiency Standard(s)	Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
Winding Material	Aluminum
Dimensions*	42.30''-W x 34.55''-D x 55.20''-H
Tank Diameter*	21'' OD
Total Weight (Liquid Filled)*	1,622 lbs

Pole-mounted transformer Product Structure

Pole-mounted transformer Technical drawings

ANSI Standard Single Phase Oil Immersed Distribution Transformers 167KVA 34500V To 120V Dual Windings 2

Pole Mounted Transformer Key Craft

Magnetic Circuit Design:The shape, size, hysteresis characteristics, and eddy - current loss of the iron core are crucial considerations. An optimized magnetic circuit design ensures efficient energy transfer and minimizes power losses, enhancing the overall performance of the transformer.
Winding Design:During the design phase, multiple elements, including the number of turns, wire material, interlayer insulation, and wiring configuration, must be carefully evaluated. A meticulously planned winding design significantly improves the transformer's load - bearing capacity and operational reliability, enabling it to perform stably under various electrical loads.
Insulation Material Selection:Selecting appropriate insulation materials is a fundamental requirement for ensuring the safety and extended lifespan of the transformer. Insulation materials with superior insulation properties, high - temperature resistance, arc - resistance, and moisture - resistance are essential to prevent electrical breakdowns and safeguard the transformer's internal components.
Vacuum Oil Filling:Vacuum oil filling is commonly employed in single - phase pole - mounted transformers. This process involves evacuating the transformer core under vacuum conditions, injecting high - quality insulating oil, removing any trapped air bubbles, and then hermetically sealing the unit. Vacuum oil filling effectively improves the transformer's insulation performance and thermal stability, thereby extending its service life.
Heat Treatment:Heat treatment is a critical process that can enhance the mechanical properties and structural strength of transformers. By altering the material's microstructure, heat treatment increases hardness and wear - resistance, while simultaneously reducing internal stress and minimizing deformation, ensuring the transformer's durability and long - term reliable operation.

Pole-mounted transformer Specifications

Single-phase pole mounted transformer
Rated Cap acity(kVA)	High	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	Efficiency
Rated Cap acity(kVA)	Voltage(v)	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	(%)
10	4160 7200 12000 12470 13200 13800 19920 24940 34500	110 220 230 400 480	II0,II6	IEEE/ANSI/ DOE	1.8-4%	98.7
15						98.82
25						98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43
500						99.49

Pole-mounted transformer Ratings

Meets/Exceeds DOE 2016 Efficiency Ratings
Complies with ANSI / IEEE #C57.12.00
Complies with ANSI / IEEE #C57.12.20
Complies with ANSI / IEEE #C57.12.28
Complies with ANSI / IEEE #C57.12.31
Complies with ANSI / IEEE C57.12.70
Complies with ANSI / IEEE C57.12.80
Complies with ASTM D3487

Pole-mounted transformer Production process

ANSI Standard Single Phase Oil Immersed Distribution Transformers 167KVA 34500V To 120V Dual Windings 3

ANSI Standard Single Phase Oil Immersed Distribution Transformers 167KVA 34500V To 120V Dual Windings 4

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
