25kva Pole Mounted Transformer oil immersed power transformer 13.85KV CSA C2.2-06 Standard
| Brand Name: | WINLEY |
| Model Number: | D-25/13.85 |
| MOQ: | 1unit |
| Price: | $1000-$10000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T |
25kva Pole Mounted Transformer
,Oil Immersed Pole Mounted Transformer
,CSA C2.2-06 Standard Transformer

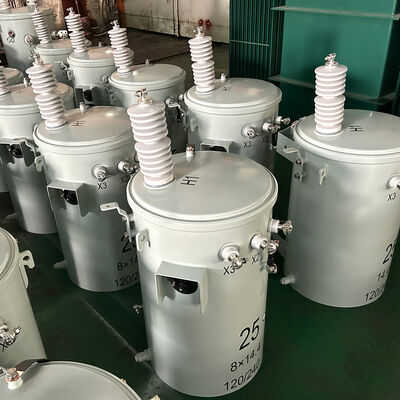

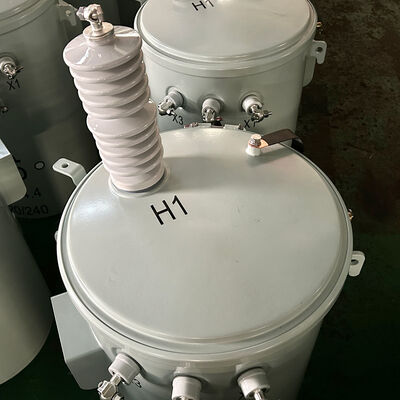

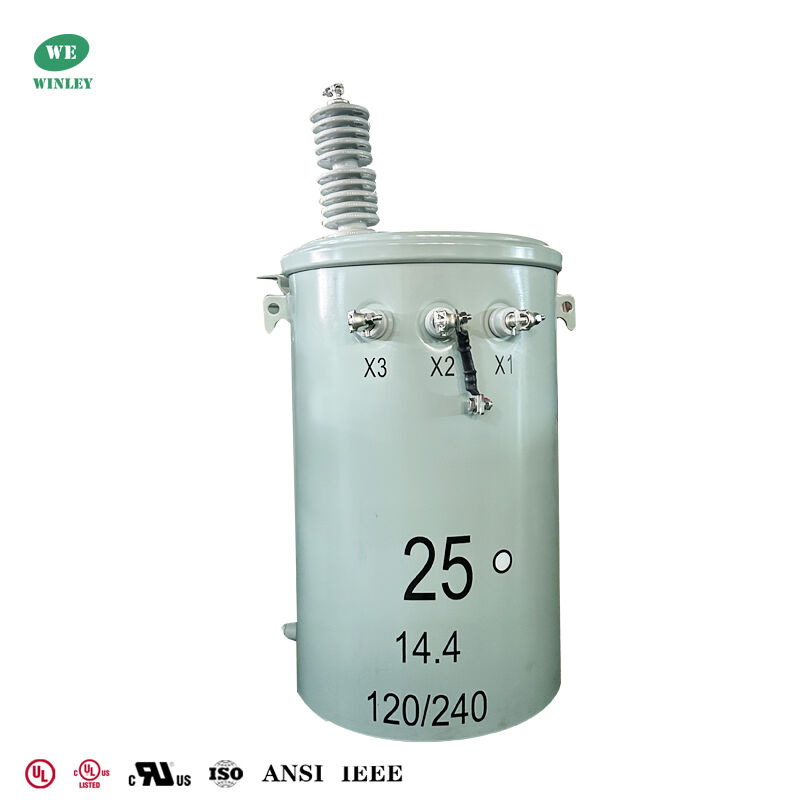

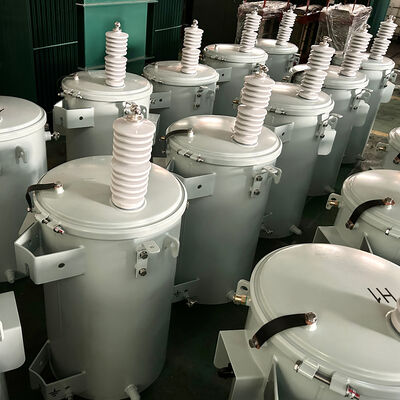

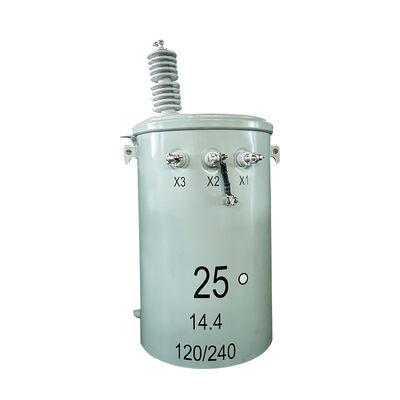

25kva Pole Mounted Transformer oil immersed power transformer 13.85KV CSA C2.2-06 Standard cUL Certified
Winley Electric’s 25 kVA single‑phase pole‑mounted transformer is a compact, rugged solution designed for Canadian overhead distribution needs. CUL certified to Canadian/North American standards and backed by a 30‑day delivery promise, this unit meets utilities’ and contractors’ requirements for reliability, code compliance, and fast turnaround.
Winley Electric's pole-mounted transformer UL and CUL certificates
UL certification cUL certification
Key specifications
- Type: Pole‑mounted (conventional)
- Capacity: 25 kVA
- Phase: Single‑phase
- Primary voltage: 13,856 V GrdY/8,000 (Grounded Wye)
- Secondary voltage: 120/240 V (additive polarity, vector group Ii6)
- Primary bushing: 15 kV class, BIL 95 kV porcelain
- Secondary terminal: (3) 1.2 kV class, BIL 30 kV 2‑hole spades
- Tap changer: Off‑circuit, range ±2 × 2.5%
- Cooling: ONAN
- Frequency: 60 Hz
- Insulation class: A (105 °C), Temp rise 65 K
- Losses: No‑load 104 W; Load (85 °C) 377 W
- Impedance: 1.5–3.0%
- Windings: Aluminum/Aluminum; Core: Silicon steel
- Insulation fluid: Mineral oil; Tank: Coated steel (Munsell 5BG grey)
- Dimensions (approx.): 510 × 590 × 1100 mm; Weight ≈ 240 kg
- Service: Outdoor, ≤1000 m altitude
- Standards: CSA C22.2 (CSA C2.2‑06/CSA 802) — CUL certified
Technical drawings
Benefits summary
- CUL certified for Canadian acceptance and safety compliance
- Industry‑leading 30‑day delivery to meet tight schedules and emergency needs
- Compact, durable design for straightforward pole mounting and reduced labor time
- Low losses and proven materials for efficient, long service life
- Field‑ready terminals and off‑circuit taps for flexible voltage adjustment
Specifications
| 10kva-333kva Single-phase oil immersed transformer | ||||||
| Rated Cap acity(kVA) | High | Low Voltage(v) | Connection Symbol | Standard | Short-circuit impedance(%) | Efficiency |
| Voltage(v) | (%) | |||||
| 10 | 4160 7200 12000 12470 13200 13800 19920 24940 34500 | 110 220 230 400 480 | II0,II6 | IEEE/ANSI/ DOE | 1.8-4% | 98.7 |
| 15 | 98.82 | |||||
| 25 | 98.95 | |||||
| 37.5 | 99.05 | |||||
| 50 | 99.11 | |||||
| 75 | 99.19 | |||||
| 100 | 99.25 | |||||
| 167 | 99.33 | |||||
| 250 | 99.39 | |||||
| 333 | 99.43 | |||||
