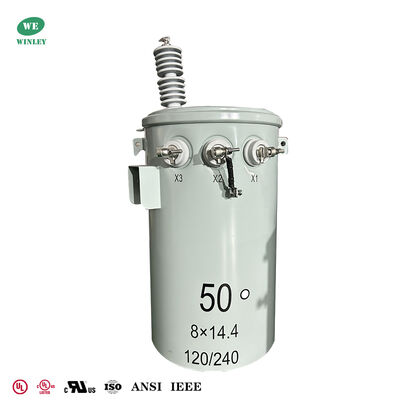

CSA Standard 50kva Pole Mounted Transformer Oil Type 13856V To 120v cUL Certified Power Pole Transformer
| Brand Name: | WINLEY |
| Model Number: | D-50/13.85 |
| MOQ: | 1unit |
| Price: | $1000-$10000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T |
Pole Mounted Transformer cUL Certified
,50kva Pole Mounted Transformer cUL Certified
,CSA Standard 50kva Pole Mounted Transformer
CSA 2.2 802 Standard 50kva Pole Mounted Transformer Oil Type 13856V To 120v cUL Certified Power Pole Transformer
CSA C2.2-06/CSA 802 standards cover all aspects of transformer design, operation and testing to ensure safe, efficient performance, with particular emphasis on reducing energy losses and meeting environmental regulations.
Winley Electric’s single-phase pole-mounted transformers fully comply with CSA requirements and are UL and cUL certified. They offer strong overload capacity, high reliability for continuous operation, and easy maintenance.
UL certification cUL certification

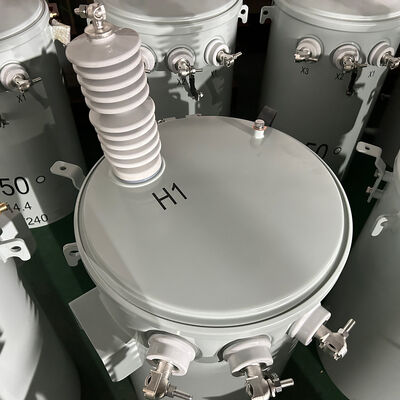

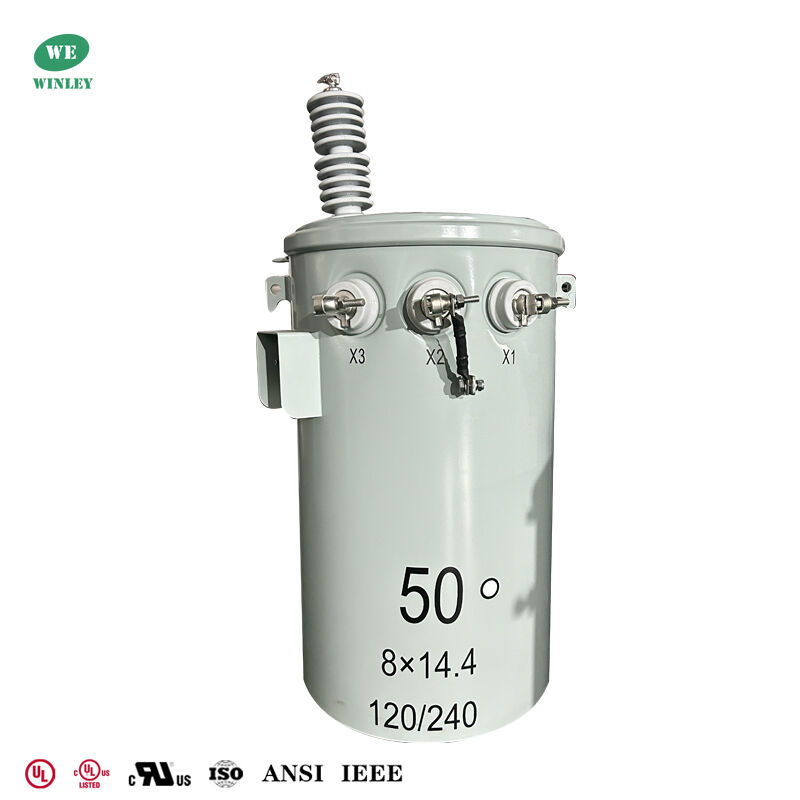

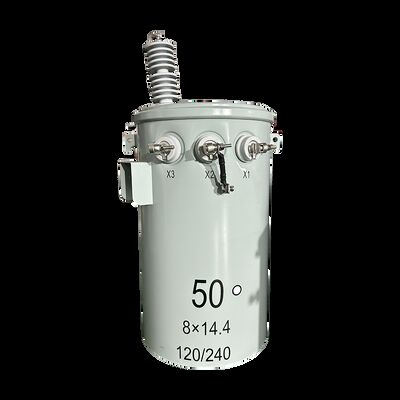

Factory product photos
Main Data
| No. | ITEM | UNIT | SPECIFICATION | REMARK |
| 1 | Type | ~ | POLE MOUNTED | conventional type |
| 2 | Rated capacity | kVA | 50 | |
| 3 | No. of Phase | ~ | Single Phase | |
| 4 | Primary voltage | V | 13856GrdY/8000 | Grounded Wye |
| 5 | Secondary voltage | V | 120/240 | |
| 6 | Vector group | ~ | Ii6 | |
| 7 | Tapping type | ~ | Off-circuit tapping | |
| 8 | Tapping range | % | ±2*2.5 | |
| 9 | Cooling method | ~ | ONAN | |
| 10 | Rated frequency | Hz | 60 | |
| 11 | Insulation class | ~ | A(105℃) | |
| 12 | Temperature rise | K | 65 | |
| 13 | Winding material | ~ | Aluminum/Aluminum | |
| 14 | Core material | ~ | silicon steel | |
| 15 | Insulation Fluids | ~ | Mineral oil | |
| 16 | Dimension | mm | 625*730*1150 | for reference only |
| 17 | Weight | kg | 320 | |
| 18 | Service condition | ~ | outdoor | |
| 19 | Sea level | m | ≤1000 | |
| 20 | Standard | ~ | CSA C2.2-06/CSA 802 |
Drawing
Key Benefits of CSA Standards for Distribution Transformers
- Energy Savings & Cost ReductionCSA C802 mandates minimum efficiency levels for distribution transformers, minimizing energy losses, cutting grid electricity consumption, and lowering operational costs for utilities and end users.
- Environmental SustainabilityImproved energy efficiency supports Canada’s carbon emission reduction goals by lessening electricity generation demand, which often depends on fossil fuels, and mitigating the environmental impact of energy systems.
- Reliability & SafetyCSA-C88-M90 sets strict requirements for temperature limits, insulation, and short-circuit resistance, ensuring transformers operate safely and reliably in Canada’s diverse, harsh environments—from urban centers to remote areas.
Specifications
| 10kva-333kva Single-phase oil immersed transformer | ||||||
| Rated Cap acity(kVA) | High | Low Voltage(v) | Connection Symbol | Standard | Short-circuit impedance(%) | Efficiency |
| Voltage(v) | (%) | |||||
| 10 | 4160 7200 12000 12470 13200 13800 19920 24940 34500 |
110 220 230 400 480 |
II0,II6 | IEEE/ANSI/ DOE | 1.8-4% | 98.7 |
| 15 | 98.82 | |||||
| 25 | 98.95 | |||||
| 37.5 | 99.05 | |||||
| 50 | 99.11 | |||||
| 75 | 99.19 | |||||
| 100 | 99.25 | |||||
| 167 | 99.33 | |||||
| 250 | 99.39 | |||||
| 333 | 99.43 | |||||
