Oil Type Transformer
>

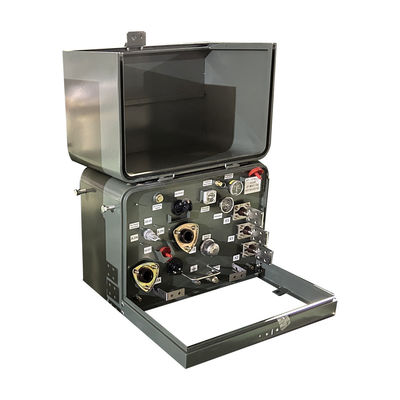

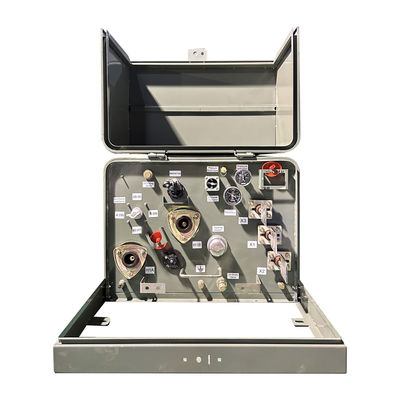

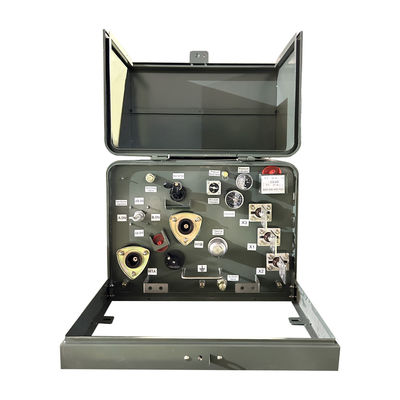

10Kva Single Phase Pad Mounted Transformer Oil Immersed Dual Voltage 13200GrdY/7620 & 4160GrdY/2400

10Kva Single Phase Pad Mounted Transformer Oil Immersed Dual Voltage 13200GrdY/7620 & 4160GrdY/2400

Brand Name: WINLEY
Model Number: D-10/13.2
MOQ: 1unit
Price: $1000-$10000
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Certification:
CE,ISO
Phase:
Single Phase
Rated Capacity:
10KVA
Primary Voltage:
13200GrdY/7620 & 4160GrdY/2400
Secondary Voltage:
240/120V (L-N-L)
Efficiency:
Meet DOE 2016 Standard
Cooling Class:
ONAN
Winding Material:
Copper Or Customized
Ratings:
Complies With ANSI / IEEE #C57.12.25
Supply Ability:
1000set/month
Highlight:

13200GrdY/7620 Pad Mounted Transformer

,

10Kva Pad Mounted Transformer

,

4160GrdY/2400 Pad Mounted Transformer

Product Description

10Kva Single Phase Pad Mounted Transformer Oil Immersed Dual Voltage 13200GrdY/7620 & 4160GrdY/2400





1)Combination Transformer Substation, The top of cabinet is with steel plate clamp rock wool structure which has ventilation duct, can reduce the solar radiation effectively and ensure the heat dissipation.
2)The surface of whole cabinet shell sprays special primer and paint which has strong anti-corrosion ability.
3)The inside can be divided into high voltage chamber, transformer chamber and low voltage chamber respectively.
4) Also it is be equipped with temperature control automatic exhaust device to ensure the temperature range.
5)Each unit has impeccable control, charged display and lighting system.
6)The apparatus equipment are accord with IP33 protection requirement, have reasonable design,structure and technology, with good quality and easy maintenance.



product structure

10Kva Single Phase Pad Mounted Transformer Oil Immersed Dual Voltage 13200GrdY/7620 & 4160GrdY/2400 0

Feature



• Meet or exceeds ANSI®, IEEE® and NEMA® standards
• Meets DOE Energy Efficiency Standard 10 CFR Part 431 for distribution transformers
• Tank coating exceeds IEEE Std C57.12.28™-2005 and IEEE Std C57.12.29™-2005 standards (stainless steel units only)
• Full compliance with IEEE Std C57.12.28™-2005 standard enclosure integrity requirements
• Laser engraved nameplate
• Recessed stainless steel lifting provisions
• Tank grounding provisions
• Automatic pressure relief device
• Electrical grade mineral oil
• Hinged door with stainless steel hinge pins and barrels
• Floating lock pocket for easy alignment
• Captive stainless steel pentahead door locking bolt
• Oil fill and drain provisions
• Removable sill
• Welded domed tank cover
• High-voltage bushing wells - 200 A



Factory photos



10Kva Single Phase Pad Mounted Transformer Oil Immersed Dual Voltage 13200GrdY/7620 & 4160GrdY/2400 1



Main data



Phase Single Phase
kVA 10
Primary Voltage 13200GrdY/7620 & 4160GrdY/2400
Primary Voltage Switch Dual Voltage Selector Switch
Secondary Voltage 240/120V (L-N-L)
Frequency 60 Hz
Temperature Rise 60°C
Efficiency Meet DOE 2016 Standard
Insulation Fluid Mineral Oil
Cooling Class ONAN
Feed Loop
Winding Material Copper
Housing Coated Steel, Tamper Resistant w/ Padlockable Lift-up Lid
Paint Type Munsell Green Paint and Undercoating
Mounting Pad Mount
Dimensions 24 x 29 x 33
Weight 600 lb
Ratings
Complies with ANSI / IEEE #C57.12.25



Product drawings



10Kva Single Phase Pad Mounted Transformer Oil Immersed Dual Voltage 13200GrdY/7620 & 4160GrdY/2400 2



Specification



25kva-500kva single phase pad mounted transformer
Rated Cap acity(kVA) High Low Voltage(v) Connection Symbol Standard Short-circuit impedance(%) Efficiency
Voltage(v) (%)
25 4160 7200 12000 12470 13200 13800 19920 24940 34500 110 220 230 400 480 II0,II6 IEEE/ANSI/ DOE 1.0-4.5% 98.95
37.5 99.05
50 99.11
75 99.19
100 99.25
167 99.33
250 99.39
333 99.43
500 99.49



Accessories



10Kva Single Phase Pad Mounted Transformer Oil Immersed Dual Voltage 13200GrdY/7620 & 4160GrdY/2400 3



Production process



10Kva Single Phase Pad Mounted Transformer Oil Immersed Dual Voltage 13200GrdY/7620 & 4160GrdY/2400 4



 225 KVA Pad Mount Three Phase Oil Type Transformer 4160V To 480 2



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
