Three Phase Series Reactor Low Voltage Compensating Reactor For Absorption Of Grid Harmonics

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: CE,ISO
Model Number: SKG-50
Minimum Order Quantity: 1unit
Price: $1000-$10000
Packaging Details: Plywood case
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 1000set/month
Detail Information
Rated Voltage: 380V-480V Capactiy: 5Kva
Rated Current: 20A Frequency: 50/60Hz
Phase: Three Phase Use: Filter Reactor
Reactance Rate: 7% Cooling: AN
High Light:

grid harmonics Three phase series reactor


low voltage Three phase series reactor


compensating Three phase reactor

Product Description

Three-phase series reactor low voltage compensating reactor for absorption of grid harmonics



Product Image

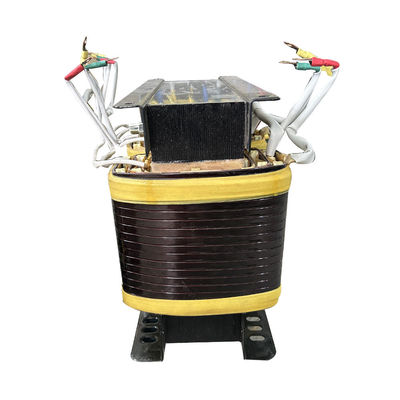

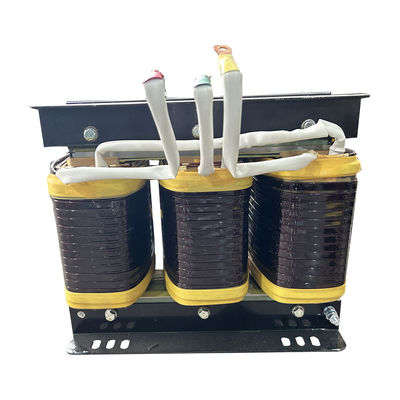

Three Phase Series Reactor Low Voltage Compensating Reactor For Absorption Of Grid Harmonics 0




Application Used in solar photovoltaic industry
Current Designed according to customer requirements
Operating Voltage Designed according to customer requirements
System Frequency 2-20KHz
Operating Frequency 50/60Hz
Dielectric Strength 3.5KV, no breakdown within 60s
Insulation resistance IOOMΩ Min/DC500V
Insulation Class B, F, H
Efficiency ≥98%
Operating Temperature -25-50
Cooling AN/FN
Noise <70dB
Design Standards Refer to IEC61558.1/GB6450
Operating Altitude <4,000m




The input AC reactor is a current-limiting device mainly used for the input side of the drive so as to protect the exchange drive
from the influence of the transient overpressure. It can also reduce the surge and peak current .increase the real power factor
,restrain the harmonic wave in power grid and improve the function of the input current waveform .

High performance foil winding structure .low direct current resistance ,strong resistance to short circuit and good overload
ability in short time characterizes this input AC reactor .For above class composite insulating materials are used to maintain
reliable performance of the product under harsh working conditions, the design of the facility is characterized by low magnetic
flux density ,excellent linearity and strong overload capacity ,Moreover, the cooperation of the design and vacuum pressure
impregnation process reduces the noise of the reactor which also possesses the advantages of low consumption ,high efficiency of
low temperature rise .the iron core employs the cold rolled oriented silicon steel sheet .
