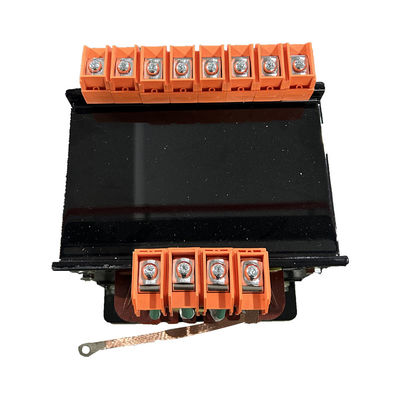

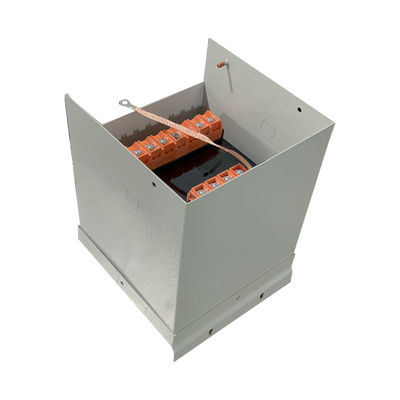

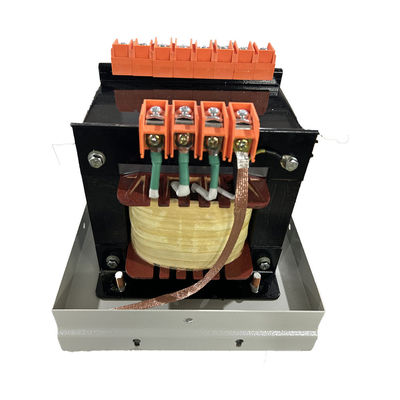

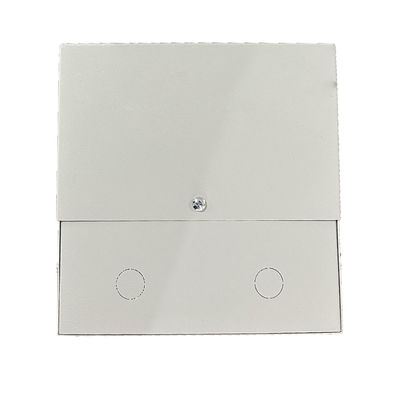

1.5KVA Single Phase Dry Type Control Voltage Transformer 120/208/240/277V

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: ISO,CE
Model Number: 1.5KVA
Minimum Order Quantity: 50units
Price: $20-$600
Packaging Details: Plywood case
Delivery Time: 10-15days
Payment Terms: T/T
Supply Ability: 10000units/month
Detail Information
Standard: ANSI/NEMA/IEC Input Voltage: 120/208/240/277V
Output Voltage: 120/240V Insulation Class: C
Phase: 1 Phase Cooling Method: Air Cooling
Frequency: 60Hz Winding: Copper Coil
High Light:

1.5KVA Control Voltage Transformer


277V 1.5KVA Control Voltage Transformer


Single Phase 1.5KVA Control Voltage Transformer

Product Description

1.5KVA Single Phase dry type Control Voltage Transformer 120/208/240/277V



Single-phase control isolation transformer refers to a transformer with electrical isolation between the input and output windings, which is used to electrically isolate two or more coupled circuits. Single-phase isolation transformers are generally used for machine maintenance and repair, playing a role in protection, lightning protection, and filtering to avoid accidental contact with live objects. Transformers isolate the current of the primary and secondary winding coils. Isolation transformers were early used in the power industry in European countries, and were widely used as control power sources for general circuits, safety lighting, and indicator lights in electronic or mining enterprises, machine tools, and mechanical equipment.





BK transformers have the characteristics of small size, safe and reliable wiring, high protection level, good performance, etc., and can work effectively for a long time in the rated load.


Main data


Model DG-1.5kva
Name Single-phase Dry type transformer
Rated power 1.5Kva
Input voltage 120/208/240/277V with 1x5% FCAN and 2x5% FCBN
Input current 6.2A
Output voltage 120/240V
Output current 6.2A
Phase Single
Frequency 60Hz
Insulation class C
Withstand voltage test

Primary to secondary 2500V/60S

Primary to grounding 2500V/60S

Secondary to grounding 2500V/60S

Insulation resistance

Primary to secondary >100MΩ

Primary to grounding >100MΩ

Secondary to grounding >100MΩ

Induced withstand voltage 125Hz/Double voltage/min
Grounding resistance 25A<100mΩ
Cooling method Air cooling
Ratio <3%
Temperature rise <150℃
Overall dimensions(AxBxC) 300x300x400mm
Weight 18Kg


Production process


1.5KVA Single Phase Dry Type Control Voltage Transformer 120/208/240/277V 0

1.5KVA Single Phase Dry Type Control Voltage Transformer 120/208/240/277V 1





1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
