|Insulation:||F Class||Terminal:||Finger-Safe Terminal Shields|
|Silicon Steel:||Minimize Core Losses||Application:||Machine|
F Class Dry Type Transformer,
50VA single phase dry type transformer,
Dry Type Transformer 380V

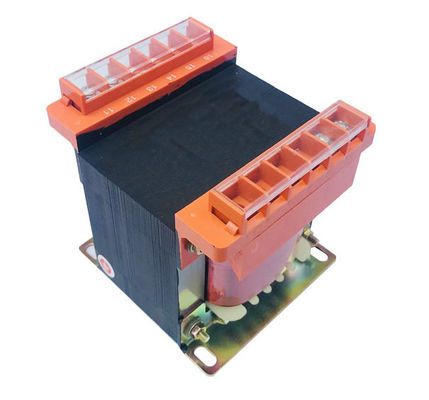

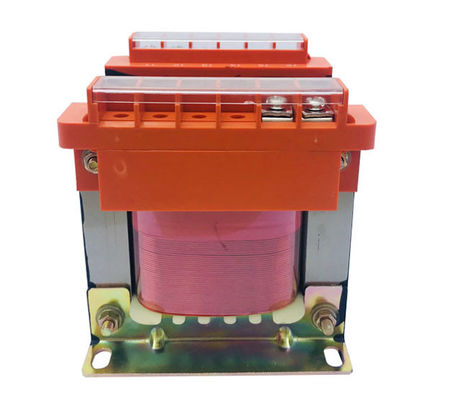

F Class Industrial Control Transformer 380/400/415V Finger-safe terminal shields
1.Widely power,Input and output voltage less than 1000V and frequency 50-60Hz.
2.Adpot corrode-proof material,improve the reliability of earth connection.
3.Comply with VDE0550, IEC439, JB5555,GB5226 standard.
|Product Name||Single phase Control transformer|
|Winding Material||Enameled copper wire|
|Input Voltage||230V(Can be customized)|
|Output Voltage||115V(Can be customized)|
|Connection Type||Finger safe Terminals|
|Enclosures Protection Level||IP00 or higher|
|Withstand voltage Test||3000V/min|
|Induction Withstand Voltage Test||125Hz/830V/60s|
|Cooling Method||Natural or air cooling|
|Air Carrying Current||<3%|
|Operating Temperature||-15℃～40℃ (40℃, 90%R.H., 56days)|
|Storage Temperature||-25℃～100℃(40℃, 90%R.H., 56days)|
|The technical parameter for reference only, for exactly technical information, please feel free to contact us!|
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
a. Customized color and special function.
b. Customized box.
c. Print customer's logo(MOQ:≥10pcs).
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
