| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WINLEY |
| Certification: | ISO,CE,UL |
| Model Number: | BK-1800VA |
| Minimum Order Quantity: | 1 |
| Price: | $20-$15000 |
| Packaging Details: | Plywood case |
| Delivery Time: | 10days |
| Payment Terms: | T/T |
| Supply Ability: | 10000set/month |
| Usage: | Inverter | Power: | 1800VA |
|---|---|---|---|
| Voltage: | 90V 120V | Frequency: | High Frequency |
| Coil Structure: | EI | Standard: | UL1585/UL5085-3 |
| Material: | Copper | Insulation Class: | H |
| High Light: | 1800VA Single Phase Control Transformer,120V Inverter Control Transformer,ISO Power Inverter Transformer |
||

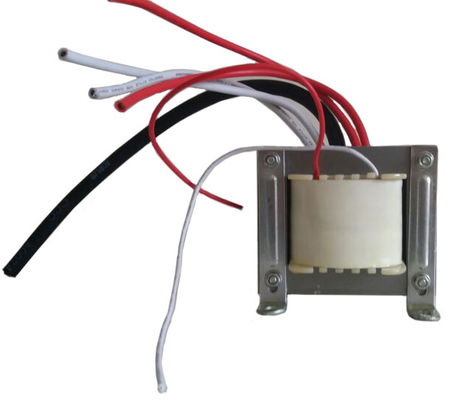

1800VA Single Phase Control Transformer 90V 120V Inverter High Frequency
1. Feature
Single phase transformers apply to be used as control power supply of mechanical equipments and electrical & electronic appliance,or as mains power supply of working light and signal light,in single-phase circuit of 50/60Hz,input voltage up to 1000V,output voltage upto 1000V.Standard capacity is up to 800KVA.
2. Specification
| Product Name | Single phase isolation transformer |
| Product Model | BK-50VA |
| Winding Material | Copper foil |
| Capacity | 50VA |
| Input Voltage | 415V(Can be customized) |
| Output Voltage | 380V(Can be customized) |
| Frequency | 50/60Hz |
| Connection Type | Finger safe Terminals |
| Insulation Level | H |
| Enclosures Protection Level | IP00 or higher |
| Withstand voltage Test | 5000V/min |
| Insulation Resistance | >100MΩ |
| Ground Resistance | 25A<100milliohm |
| Induction Withstand Voltage Test | 125Hz/830V/60s |
| Cooling Method | Natural or air cooling |
| Temperature Rise | ≤80K |
| Transformation Ratio | <3% |
| Air Carrying Current | <3% |
| Efficiency | 80%--99% |
| Operating Temperature | -15℃～40℃ (40℃, 90%R.H., 56days) |
| Storage Temperature | -25℃～100℃(40℃, 90%R.H., 56days) |
| Certificate | CE,ISO |
| The technical parameter for reference only, for exactly technical information, please feel free to contact us! | |
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo(MOQ:≥10pcs).
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
