| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WINLEY |
| Certification: | ISO,CE,UL |
| Model Number: | DG-10KVA |
| Minimum Order Quantity: | 1 |
| Price: | $20-$15000 |
| Packaging Details: | Plywood case |
| Delivery Time: | 10days |
| Payment Terms: | T/T |
| Supply Ability: | 10000set/month |
| Usage: | Control | Coil Number: | Autotransformer |
|---|---|---|---|
| Coil Structure: | EI | Frequency: | 50/60Hz |
| Rated Capacity: | 10KVA | Type: | Dry-type |
| Input Voltage: | 600V | Output Voltage: | 480V |
| High Light: | 10KVA Single Phase Control Transformer,600V Single Phase Control Transformer,EI Auto Copper Wire Transformer |
||

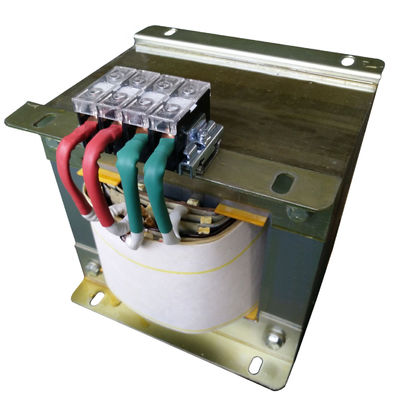

10KVA Single Phase Control Transformer Auto Copper 600V 480V
1. Feature
● Efficient
High magnetic permeability core
Pure copper coil
● Durable
Top level quality materials
● Customized
100% match the devices
2. Specification
| Product Name | Single phase isolation transformer |
| Product Model | DG/BK/BKZ |
| Winding Material | Enameled copper wire |
| Capacity | 10VA~2500KVA |
| Input Voltage | 380V(Can be customized) |
| Output Voltage | 220V(Can be customized) |
| Frequency | 50/60Hz |
| Connection Type | Iio |
| Insulation Level | F/H |
| Enclosures Protection Level | IP20 |
| Pressure-tight Test | Primary to secondary2.5KV/min; Primary to safety ground2.5KV/min; Secondary to safety ground1.5KV/min |
| Insulation Resistance | Primary to secondary 2500V>100megohm; Primary to safety ground 2500V>100megohm; Secondary to safety ground 1500V>100megohm |
| Ground Resistance | 25A<100milliohm |
| Induction Withstand Voltage Test | 125Hz / 760V / 60s |
| Cooling Method | Natural or air cooling |
| Temperature Rise | ≤80K |
| Transformation Ratio | <3% |
| Air Carrying Current | <3% |
| Impedance Voltage | about 4.5% |
| Total Losses | 4% |
| Efficiency | 80%--99% |
| Operating Temperature | -15℃～40℃ (40℃, 90%R.H., 56days) |
| Storage Temperature | -25℃～100℃(40℃, 90%R.H., 56days) |
| Certificate | CE,ISO |
| The technical parameter for reference only, for exactly technical information, please feel free to contact us! | |
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo(MOQ:≥10pcs).
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
