| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WINLEY |
| Certification: | CE,ISO |
| Model Number: | ES710 |
| Minimum Order Quantity: | 1unit |
| Price: | $100-$10000 |
| Packaging Details: | Plywood case |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 10000set/month |
| Product Name: | Medical Isolation Transformer | Frequency: | 50/60Hz |
|---|---|---|---|
| Rated Capacity: | 3.15kVA/5kVA/6.3kVA/8kVA/10kVA | Noise Level: | <40dB |
| Protection Class: | IP 00 | Cooling Method: | Natural |
| Efficiency: | >96% | Operating Temperature: | -25℃~40℃ （40℃ ,93% RH,56days） |
| High Light: | medical IT isolated Transformer,Isolated Power System medical Transformer,10kv Single Phase medical Transformer |
||

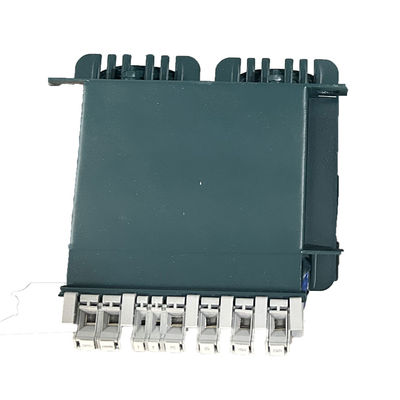

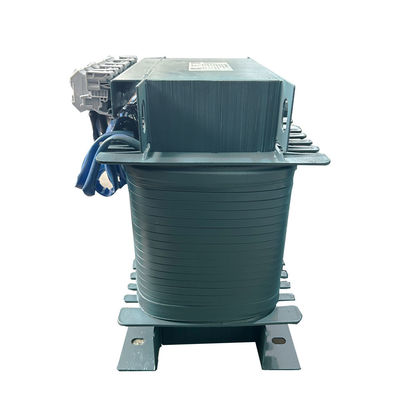

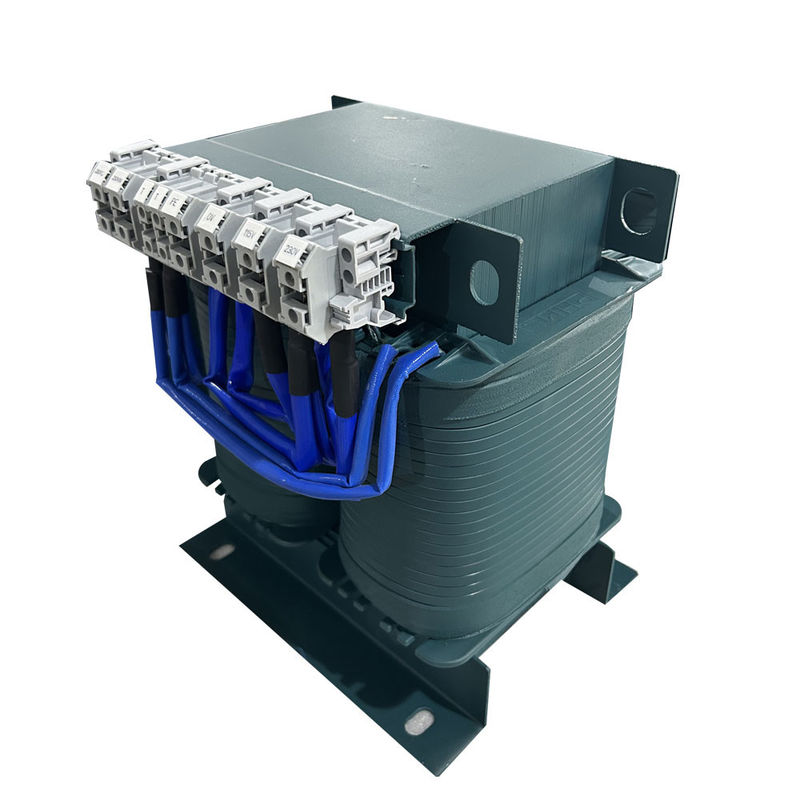

Transformer for medical IT isolated power system 5kva 8kva 10kv Single Phase
Function features of medical isolation transformer
1.The transformation ratio between the primary and secondary windings is 1:1;
2.Double insulation treatment is adopted between the windings, and the electrostatic shielding layer is designed.
3.The PT100 temperature sensor is installed in each wire packet to monitor the temperature of the isolation transformer;
4.Used for the transformation of TN system into IT system (ungrounded system) after isolation transformer.
Factory photos
Main data
| Rated Capacity | 3.15kVA/5kVA/6.3kVA/8kVA/10kVA |
| Frequency | 50/60Hz |
| Rated input voltage | 230V |
| The output voltage | 230V/115V |
| Inrush current | <12In |
| Leakage Current | <200uA |
| No-load output voltage | <235V |
| No-load output current | <3% In |
| Short-circuit voltage | <3% Un |
| Efficiency | >96% |
| Maximum ambient temperature | <40℃ |
| No-load temperature rise | <33℃ |
| Full load temperature rise | <76℃ |
| Withstand voltage | 4200V/Min |
| Insulation Class | H |
| Noise Level | <40dB (A) |
Specification
| MODEL | CAPACITY | POWER |
| ZPGB-7100.T1/3.154KVA | 3150VA | 2500W |
| ZPGB-7100.T1/3.154KVA-3 | 3150VA | 800W*3 |
| ZPGB-7100.T1/4KVA | 4000VA | 3000W |
| ZPGB-7100.T1/4KVA-3 | 4000VA | 1000W*3 |
| ZPGB-7100.T1/5KVA | 5000VA | 4000W |
| ZPGB-7100.T1/5KVA-3 | 5000VA | 1300W*3 |
| ZPGB-7100.T1/6.3KVA | 6300VA | 5000W |
| ZPGB-7100.T1/6.3KVA-3 | 6300VA | 1700W*3 |
| ZPGB-7100.T1/8KVA | 8000VA | 6500W |
| ZPGB-7100.T1/8KVA-3 | 8000VA | 2200W*3 |
| ZPGB-7100.T1/10KVA | 10000VA | 8000W |
| ZPGB-7100.T1/10KVA-3 | 10000VA | 2700W*3 |

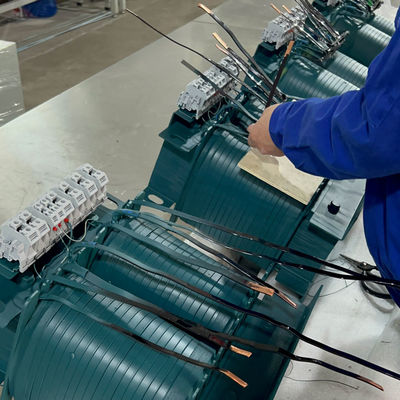

Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
