Medical Isolation Transformer
>

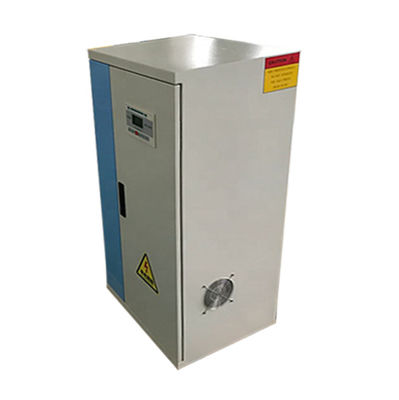

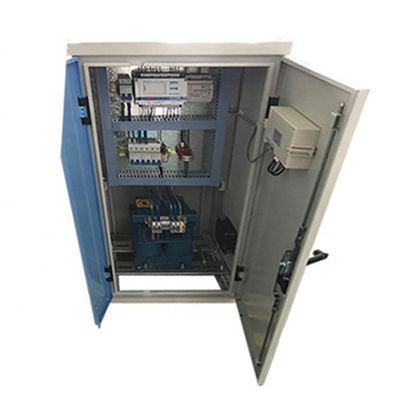

16 KVA 1 Phase Medical Isolation Transformer Monitor IP23 H Class

16 KVA 1 Phase Medical Isolation Transformer Monitor IP23 H Class

Brand Name: WINLEY
Model Number: 16KVA
MOQ: 1unit
Price: $25~$60000/Unit
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Certification:
ISO,CE,UL
Coil Number:
Double Winding Transformer
Type:
Monitor
Phase:
1 Phase
Protection:
IP23
Material:
100% Copper Wire
Efficiency:
≥95%
Cooling Method:
Natural Or Air Cooling
Frequency:
50/60Hz/customize
Supply Ability:
1000units/month
Highlight:

16 KVA Medical Isolation Transformer

,

16 KVA 1 Phase Isolation Transformer

,

Medical Isolation Transformer IP23 H Class

Product Description

16KVA 1 Phase Medical Isolation Transformer Monitor IP23 H Class



Features



The medical isolation transformer system is also called the medical IT isolation power supply system. In some places in the medical field, due to the high requirements for power supply continuity, it is designed to automatically switch between two (or even three) power sources (grounded power supply systems) to ensure these Power supply continuity in special places, but if there is a relative insulation fault at the load end, the fault current will pass through the neutral point of the power supply to form a loop to the ground, thereby forming a larger fault current, causing the upper-level MCB or fuse to operate , Eventually leading to power interruption.





Main technical data:

Parameters:
Product NameMedical isolation transformer
Product ModelHDB / IT
Winding MaterialEnameled copper wire
Capacity3.15KVA~10KVA
Input Voltage220V/230V/380V/Customized
Output Voltage220V/230V/380V/Customized
Frequency50-60Hz
Insulation ClassF / H
Protection ClassIP 00 (construction type: open) / IP23 (enclosure included)



Withstand Voltage Test

Primary to secondary 2.5KV/min
Primary to safety ground 2.5KV/min
Secondary to safety ground 2.5KV/min



Insulation Resistance

Primary to secondary DC 2500V>500 megohm
Primary to safety ground DC 2500V>500 megohm
Secondary to safety ground DC 2500V>500 megohm
Induction Withstand Voltage Test125Hz/800V/min
Ground Resistance25A<100milliohm
Cooling MethodNatural
Noise Grade<40dB
Temperature Rise< 115K
Impedance Voltageabout 4%
Total Losses<5%
Efficiency>96%
Operating Temperature-25℃~40℃ (40℃ ,93% RH,56days)
Storage Temperature-25℃~100℃ (40℃ ,93% RH,56days)
CertificateCE,ISO
The technical parameter for reference only, for exactly technical information, please feel free to contact us!





Production process:

16 KVA 1 Phase Medical Isolation Transformer Monitor IP23 H Class 016 KVA 1 Phase Medical Isolation Transformer Monitor IP23 H Class 1





FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
