Medical Isolation Transformer
>
Copper Wire Medical Safety Isolating Transformer 440V/415V/380V/220V/208V

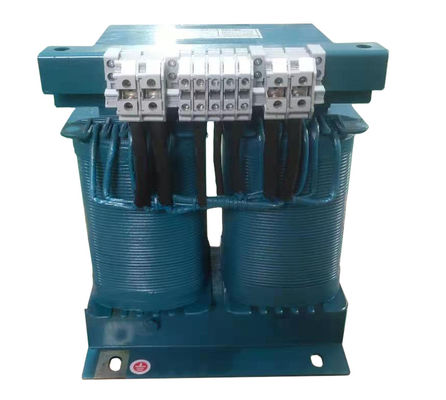

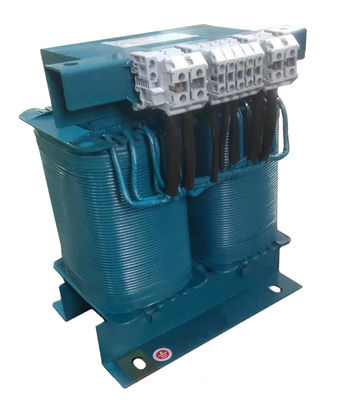

Copper Wire Medical Safety Isolating Transformer 440V/415V/380V/220V/208V

Brand Name: WINLEY
Model Number: 7KVA
MOQ: 1unit
Price: $25~$60000/Unit
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Certification:
ISO,CE,UL
Usage:
Hospital Isolating
Coil Structure:
Toroidal,Customized
Voltage:
440V/415V/380V/220V/208V
Product Name:
Low Voltage Isolation Transformer
Coil:
Copper Wire
Standard:
IEC60076,EN61558 UL5085
Efficiency:
≥95%
Terminal:
Finger Safe
Supply Ability:
1000units/month
Highlight:

Copper Wire safety isolating transformer

,

low voltage isolation transformer 380V/220V

,

safety isolating transformer 440V/415V

Product Description

Copper Wire Medical Isolation Transformer 440V/415V/380V/220V/208V



Features


1. The transformation ratio between primary and secondary windings is 1:1.
2. Double insulation treatment is adopted between the winding and the winding, and an electrostatic shielding layer is designed.
3. A PT100 temperature sensor is installed in each coil to monitor the temperature of the isolation transformer.
4. It is used to transfer the TN system into an IT system (ungrounded system) after passing the isolation transformer.





Main technical data:

Parameters:
Product NameMedical isolation transformer
Product ModelHDB / IT
Winding MaterialEnameled copper wire
Capacity3.15KVA~10KVA
Input Voltage220V/230V/380V/Customized
Output Voltage220V/230V/380V/Customized
Frequency50-60Hz
Insulation ClassF / H
Protection ClassIP 00 (construction type: open) / IP23 (enclosure included)



Withstand Voltage Test

Primary to secondary 2.5KV/min
Primary to safety ground 2.5KV/min
Secondary to safety ground 2.5KV/min



Insulation Resistance

Primary to secondary DC 2500V>500 megohm
Primary to safety ground DC 2500V>500 megohm
Secondary to safety ground DC 2500V>500 megohm
Induction Withstand Voltage Test125Hz/800V/min
Ground Resistance25A<100milliohm
Cooling MethodNatural
Noise Grade<40dB
Temperature Rise< 115K
Impedance Voltageabout 4%
Total Losses<5%
Efficiency>96%
Operating Temperature-25℃~40℃ (40℃ ,93% RH,56days)
Storage Temperature-25℃~100℃ (40℃ ,93% RH,56days)
CertificateCE,ISO
The technical parameter for reference only, for exactly technical information, please feel free to contact us!





Production process:

Copper Wire Medical Safety Isolating Transformer 440V/415V/380V/220V/208V 0



Copper Wire Medical Safety Isolating Transformer 440V/415V/380V/220V/208V 1





FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
