| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WINLEY |
| Certification: | ISO,IEC |
| Model Number: | 40KVA |
| Minimum Order Quantity: | 1unit |
| Price: | $25~$60000/Unit |
| Packaging Details: | Plywood case |
| Delivery Time: | 10-15days |
| Payment Terms: | T/T |
| Supply Ability: | 1000units/month |
| Coil Structure: | Toroidal/EI/Customized | Phase: | 3 Phase |
|---|---|---|---|
| Frequency: | 50/60Hz/customize | Material: | 100% Copper Wire |
| Protection: | IP54/NEMA 3R | Standard: | IEC60076,EN61558 UL5085 |
| Efficiency: | ≥95% | Cooling Method: | Natural Or Air Cooling |
| High Light: | 3 Phase Medical Isolation Transformer,NEMA 3R 3 Phase Isolation Transformer,Medical Isolation Transformer IP54 |
||

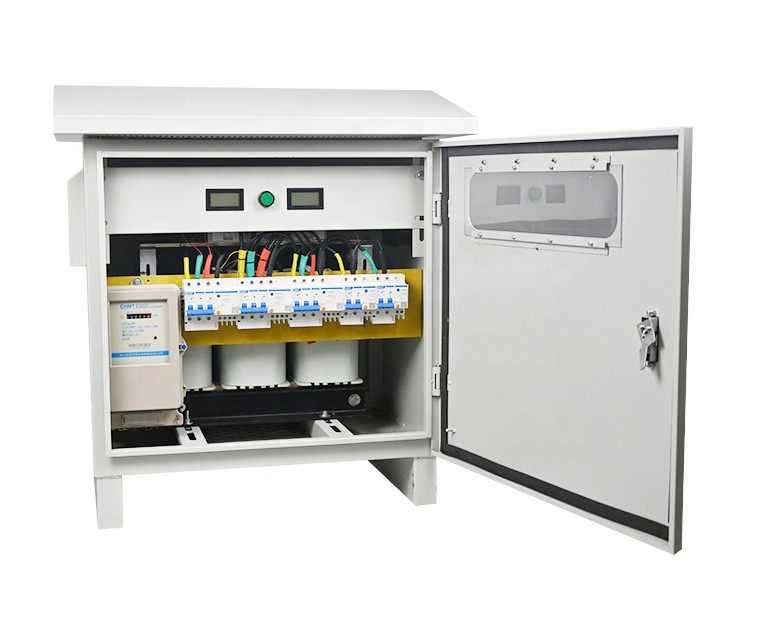

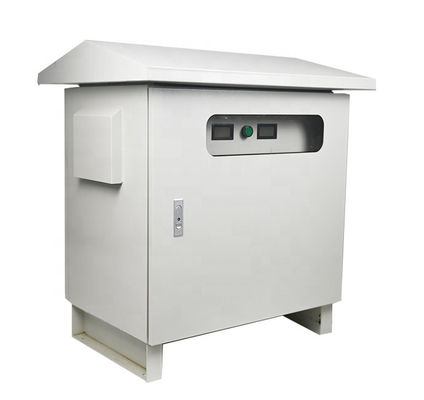

3 Phase Medical Isolation Transformer IP54/NEMA 3R Copper Wire
1. It is made of domestic high-quality high-flux silicon steel sheet to ensure stable product performance and low loss.
2. The primary winding and the secondary winding are completely electrically isolated, which can effectively remove the third harmonic and suppress various interferences.
3. The product coil adopts vacuum pressure dipping paint, high temperature curing and drying, and the paint film is bright and uniform without cracking.
4. The product is environmentally friendly, energy-saving, and has the characteristics of flame-retardant, flame-retardant, self-extinguishing, and fire-retardant.
5. The product has high mechanical strength, strong resistance to humidity, salt spray and dust, and is more suitable for operation in a heavily polluted environment.
6. This series of products has low noise, has overcurrent and overload protection, is suitable for load, can withstand instantaneous overload, and can work continuously for a long time.
Main technical data:
| Parameters: | |
| Product Name | Medical isolation transformer |
| Product Model | HDB / IT |
| Winding Material | Enameled copper wire |
| Capacity | 3.15KVA~10KVA |
| Input Voltage | 220V/230V/380V/Customized |
| Output Voltage | 220V/230V/380V/Customized |
| Frequency | 50-60Hz |
| Insulation Class | F / H |
| Protection Class | IP 00 (construction type: open) / IP23 (enclosure included) |
Withstand Voltage Test | Primary to secondary 2.5KV/min Primary to safety ground 2.5KV/min Secondary to safety ground 2.5KV/min |
Insulation Resistance | Primary to secondary DC 2500V>500 megohm Primary to safety ground DC 2500V>500 megohm Secondary to safety ground DC 2500V>500 megohm |
| Induction Withstand Voltage Test | 125Hz/800V/min |
| Ground Resistance | 25A＜100milliohm |
| Cooling Method | Natural |
| Noise Grade | <40dB |
| Temperature Rise | < 115K |
| Impedance Voltage | about 4% |
| Total Losses | <5% |
| Efficiency | >96% |
| Operating Temperature | -25℃~40℃ (40℃ ,93% RH,56days) |
| Storage Temperature | -25℃~100℃ (40℃ ,93% RH,56days) |
| Certificate | CE,ISO |
| The technical parameter for reference only, for exactly technical information, please feel free to contact us! | |
Production process:
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo(MOQ:≥10pcs).
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
