Medical Isolation Transformer
>

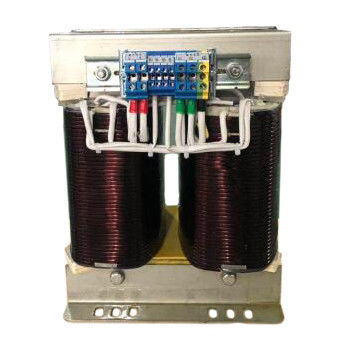

Medical Hospital Isolation Transformer 600V/480V/415V/380V/220V

Medical Hospital Isolation Transformer 600V/480V/415V/380V/220V

Brand Name: WINLEY
Model Number: 14KVA
MOQ: 1unit
Price: $25~$60000/Unit
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Certification:
ISO,CE,UL
Usage:
Hospital Machine
Voltage:
600V/480V/415V/380V/220V
Phase:
Single/Three
Frequency:
50/60Hz/customize
Material:
100% Copper Wire
Capacity:
10VA-500KVA
Efficiency:
≥95%
Cooling Method:
Natural Or Air Cooling
Supply Ability:
1000units/month
Highlight:

Hospital Isolation Transformer 600V/480V

,

220V single phase to three phase transformer

,

Hospital Isolation Transformer 415V/380V

Product Description

Hospital Machine Medical Isolation Transformer 600V/480V/415V/380V/220V



Features



1.The double winding of the transformer adopts 200℃ enameled round copper wire, which is better than the insulation grade of similar transformers of imported brands.
2.At the same time, the dual winding adopts series connection, which is better than similar domestic transformers.
3.Most of the domestic transformers of the same type adopt dual-winding parallel connection. This method is not much different from the series method in theory, but the winding requirements for the wire package are much higher than the series connection. Therefore, most of the transformers that use the parallel winding method have load distribution problems. The conditions of equal or mutual load will lead to different temperature rises of different wire groups of the same transformer, and the loss of the transformer will increase. This situation does not exist in the series connection.



Main technical data:

Parameters:
Product NameMedical isolation transformer
Product ModelHDB / IT
Winding MaterialEnameled copper wire
Capacity3.15KVA~10KVA
Input Voltage220V/230V/380V/Customized
Output Voltage220V/230V/380V/Customized
Frequency50-60Hz
Insulation ClassF / H
Protection ClassIP 00 (construction type: open) / IP23 (enclosure included)



Withstand Voltage Test

Primary to secondary 2.5KV/min
Primary to safety ground 2.5KV/min
Secondary to safety ground 2.5KV/min



Insulation Resistance

Primary to secondary DC 2500V>500 megohm
Primary to safety ground DC 2500V>500 megohm
Secondary to safety ground DC 2500V>500 megohm
Induction Withstand Voltage Test125Hz/800V/min
Ground Resistance25A<100milliohm
Cooling MethodNatural
Noise Grade<40dB
Temperature Rise< 115K
Impedance Voltageabout 4%
Total Losses<5%
Efficiency>96%
Operating Temperature-25℃~40℃ (40℃ ,93% RH,56days)
Storage Temperature-25℃~100℃ (40℃ ,93% RH,56days)
CertificateCE,ISO
The technical parameter for reference only, for exactly technical information, please feel free to contact us!





Production process:

Medical Hospital Isolation Transformer 600V/480V/415V/380V/220V 0



Medical Hospital Isolation Transformer 600V/480V/415V/380V/220V 1



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
