Pad Mounted Transformer Single Phase Oil Type 12470V To 120V 37.5Kva

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: CE,ISO
Model Number: D-37.5/15
Minimum Order Quantity: 1unit
Price: $1000-$10000
Packaging Details: Plywood case
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 1000set/month
Detail Information
Phase: Single Phase Rated Capacity: 37.5Kva Or Customized
Primary Voltage: 12470GrdY/7200 Secondary Voltage: 240/120
Temperature Rise: 65°C Cooling Class: KNAN; Self-Cooled
Winding Material: Copper Efficiency: 98.90%
High Light:

Pad Mounted Transformer 37.5Kva


KNAN Cooling Pad Mounted Transformer


120V Single Phase Transformer

Product Description

Pad Mounted Transformer Single phase oil type 12470V to 120V 25kva 37.5Kva 50Kva 75Kva 100Kva



1)Single phase pad mounted transformers are placed inside a cabinet with doors and locks, usuallylocated outdoors. These transformers are manulactured with ratings from 15-250 kVA.
2)Al of these distribution transformers are oil-insulated, sef-cooled,available in loop or radial feed, and are dead-front
3)These transformers come in two basic configurations radia and loop feed,which are selectied based on the type of circuit on which the transformers wil be insalled.


Product detail

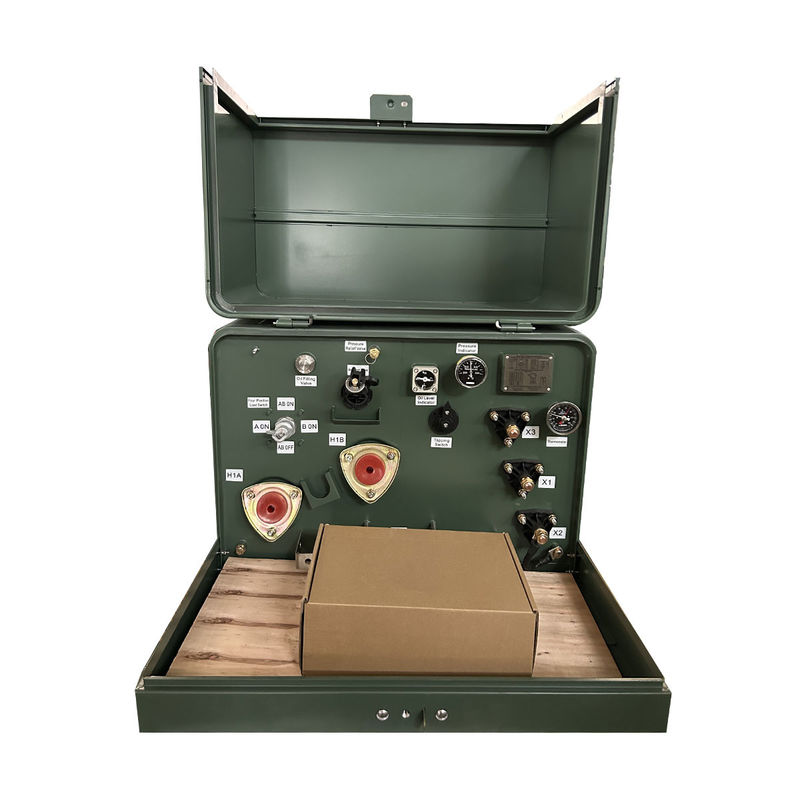

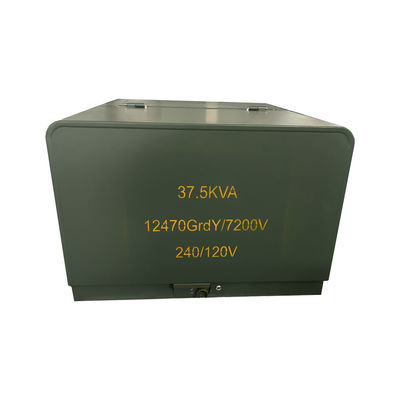

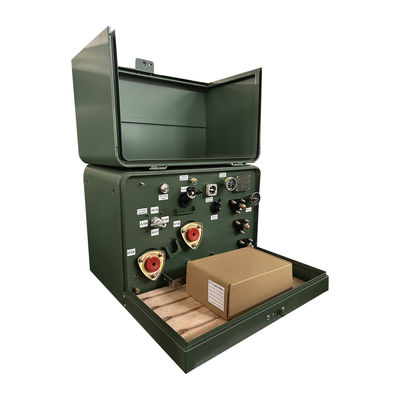

Pad Mounted Transformer Single Phase Oil Type 12470V To 120V 37.5Kva 0



Main data


Transformer Type Pad Mounted, Compartmental-Type II
Transformer Feed Type Loop Feed
Phase Single Phase
Capacity 37.5 KVA
Vector Group II6
Primary Voltage 12470GrdY/7200
Primary Voltage Class 15 kV Class
Primary Phasor Grounded Wye
Primary BIL 95 KV
Secondary Voltage 120/240 (L-N-L)
Secondary Voltage Class 1.2 kV Class
Secondary Phasor Dual Winding Single Phase
Secondary BIL 30 KV
Frequency 60 Hz
Temperature Rise 65°C
Insulation Rating Class E Insulation - 120°C, 248°F
Cooling Class KNAN; Self-Cooled
Impedance 2% Typical
Winding Material Copper
Dimensions* 34.25''-W x 37.4''-D x 25.2''-H
Dry Weight (w/o Oil)* 507.05 lb
Total Weight (Liquid Filled)* 1432.98 lb
Ratings Meets/Exceeds DOE 2016 Efficiency Ratings
Efficiency 98.90%
No Load Loss (in watts)* +/- 135W
Load Loss (in watts)* +/- 590W




1)single phase pad mounted transformer tank coating exceeds C57,12.8 and C57,12.29. Full compliance with IEEE C57.12.28 enclosure integrity standards.
2)Two externally clamped universal high-voltage bushing wells for loop feed operation or one externally clamped bushing well for radial feed operation .
3)Three externally clamped low-voltage bushings with threaded copper studs, including a fully insulated neutral terminal with removable ground strap .
4)Embossed bushing mounts; Recessed oil compartment bottom.
5)Threaded, flush mounted stainless steel lifting provisions.
6)Automatic pressure relief device.
7)Electrical grade mineral oil with oxidation inhibitor.
8)Removable hood with corrosion resistant stainless steel hinge pins and barrels Mild steel enclosure and detachable sill fastened with stainless steel hardware Front panel accessory mounting bracket.
9)Domed top surfaces on hood and oil compartment to prevent water retention .
10)Oil fill/oil level plug; Oil drain plug; Tank grounding provisions.
11)Corrosion resistant locking assembly with captive penta-head security bolt, floating nut and padlock provision.




25kva-500kva single phase pad mounted transformer
Rated Cap acity(kVA) High Low Voltage(v) Connection Symbol Standard Short-circuit impedance(%) Efficiency
Voltage(v) (%)
25 4160 7200 12000 12470 13200 13800 19920 24940 34500 110 220 230 400 480 II0,II6 IEEE/ANSI/ DOE 1.0-4.5% 98.95
37.5 99.05
50 99.11
75 99.19
100 99.25
167 99.33
250 99.39
333 99.43
500 99.49




Pad Mounted Transformer Single Phase Oil Type 12470V To 120V 37.5Kva 1




Pad Mounted Transformer Single Phase Oil Type 12470V To 120V 37.5Kva 2


Production process


Pad Mounted Transformer Single Phase Oil Type 12470V To 120V 37.5Kva 3
