Brand Name: | WINLEY |
Model Number: | 100Kva |
MOQ: | 1unit |
Price: | $100-$10000 |
Packaging Details: | Plywood case |
Payment Terms: | T/T |

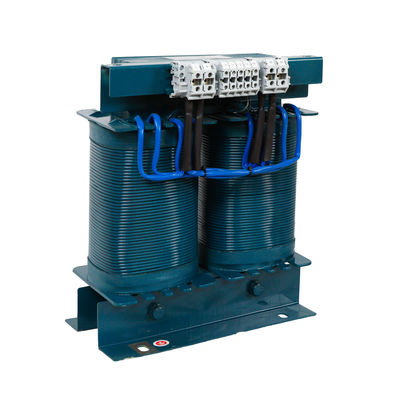

Medical Grade Single Phase Isolation Transformer 380v 220v Ac Adapters
Main data
Product Name | Medical isolation transformer |
Product Model | ZPGB-7100.T1 |
Winding Material | Enameled copper wire |
Capacity | 3.15KVA~10KVA |
Input Voltage | 220V/230V/380V/Customized |
Output Voltage | 220V/230V/380V/Customized |
Frequency | 50-60Hz |
Protection Class | IP 00 (construction type: open) / IP23 (enclosure included) |
Primary to secondary 2.5KV/min | |
Withstand Voltage Test | Primary to safety ground 2.5KV/min |
Secondary to safety ground 2.5KV/min | |
Primary to secondary DC 2500V>500 megohm | |
Insulation Resistance | Primary to safety ground DC 2500V>500 megohm |
Secondary to safety ground DC 2500V>500 megohm | |
Induction Withstand Voltage Test | 125Hz/800V/min |
Ground Resistance | 25A<100milliohm |
Cooling Method | Natural |
Noise Grade | <40dB |
Temperature Rise | < 115K |
Impedance Voltage | about 4% |
Total Losses | <5% |
Efficiency | >96% |
Operating Temperature | -25℃~40℃ (40℃ ,93% RH,56days) |
Storage Temperature | -25℃~100℃ (40℃ ,93% RH,56days) |
Specification
MODEL | CAPACITY | POWER |
ZPGB-7100.T1/3.154KVA | 3150VA | 2500W |
ZPGB-7100.T1/3.154KVA-3 | 3150VA | 800W*3 |
ZPGB-7100.T1/4KVA | 4000VA | 3000W |
ZPGB-7100.T1/4KVA-3 | 4000VA | 1000W*3 |
ZPGB-7100.T1/5KVA | 5000VA | 4000W |
ZPGB-7100.T1/5KVA-3 | 5000VA | 1300W*3 |
ZPGB-7100.T1/6.3KVA | 6300VA | 5000W |
ZPGB-7100.T1/6.3KVA-3 | 6300VA | 1700W*3 |
ZPGB-7100.T1/8KVA | 8000VA | 6500W |
ZPGB-7100.T1/8KVA-3 | 8000VA | 2200W*3 |
ZPGB-7100.T1/10KVA | 10000VA | 8000W |
ZPGB-7100.T1/10KVA-3 | 10000VA | 2700W*3 |
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
|
