3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: UL,CE,ISO
Model Number: SG-3150
Minimum Order Quantity: 1unit
Price: $1000-$10000
Packaging Details: Plywood case
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 1000set/month
Detail Information
Primary Voltage: 380V,400V,440V,480V,500V,600V,690V Or Customized Secondary Voltage: 208V,220V Or Customized
Insulation Level: F/H Enclosures Protection Level: NEMA 3R
Rated Capacity: 3150KVA Or Customized Rated Frequency: 50Hz/60Hz
Core: Silicon Steel Material: Copper
High Light:

3150KVA Dry Type Isolation Transformer


NEMA3R Dry Type Isolation Transformer


Three Phase Transformer 480V

Product Description

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R



Performance Characteristic


1. The energy consumption efficiency of the transformer reaches 99.26%, 8-15 percentage points higher than that of general products.
2. The enclosure meets the requirements of AWS certification (American Electrotechnical Association certification), Its load-bearing, heat dissipation, and rainproof performance meet NEMA3R standards (requirements for outdoor enclosure in North America).

3. HIGH SECURITY - VPI transformer has no combustible resin, halogen-free, non-combustion supporting, and flame retardant in use. It will not explode and release toxic gases, will not cause harm to the environment, other equipment, and the human body, and is insensitive to temperature, dust, and pollution.

4. The operation's partial discharge is small and will never crack. Its safety characteristics are especially suitable for places with high fire protection requirements and high population density.

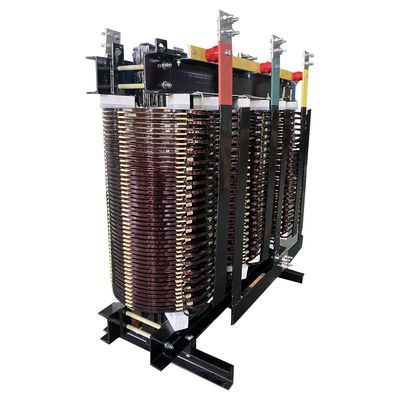

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 0


Technical specifications


Rated capacity 3150KVA or customized
phase number 3 Phases
Input voltage 480VAC or customized
Output voltage 220VAC or customized
Working frequency 50/60HZ
Short Circurt Impedance 4%
Insulation Level F/H
Material Transformer coil adopts 200 degree high temperature copper wire or aluminum wire.
Silicon steel sheet
Main material winding Aluminum/Copper
Connection mode Y/Y(or customized)
Cooling mode聽 Air cooling or Fan cooling
Warranty 2 years


NEMA 3R Characteristics


Protection against incidental contact with enclosed equipment
Protection from falling dirt, rain, sleet and/or snow
Drainage provision
Protection against rain at a level higher than the lowest live part
Alternate locking and latching mechanisms available

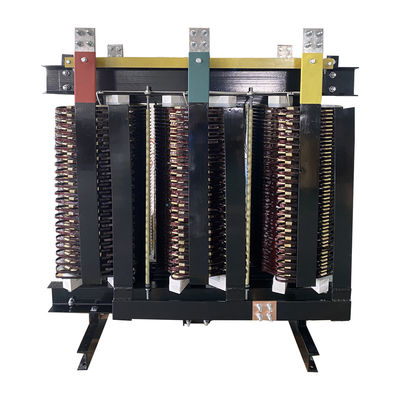

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 1


Production process

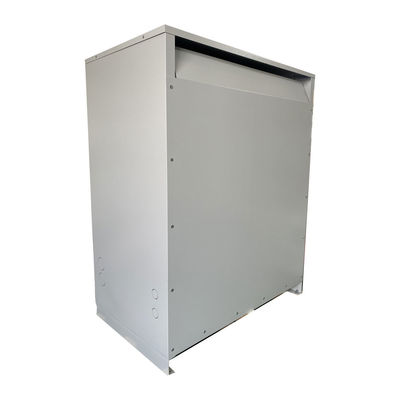

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 2

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 3

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 4




1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
