400Hz Three Phase Isolation Dry Type Transformer 23V Insulation Class H

Brand Name:	WINLEY
Model Number:	SG-18/0.2
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Model:

SG-20KVA

Input Voltage:

Output Voltage:

Phase:

Frequency:

400 Hz

Temperature Rise:

Insulation Class:

Material:

Copper

Supply Ability:

500set/month

Highlight:

400Hz Three Phase Dry Type Transformer

23V Three Phase Dry Type Transformer

Product Description

400Hz Three Phase Isolation Dry Type Transformer 23V Insulation class H

Summarization

This 400Hz three-phase dry transformer is a high-performance transformer designed for high-frequency power applications. It is suitable for aviation, military and other high-tech industrial fields, providing stable power output and excellent energy efficiency. Through the design of the transformer, this product is designed to meet customers' needs for high-frequency power supply.

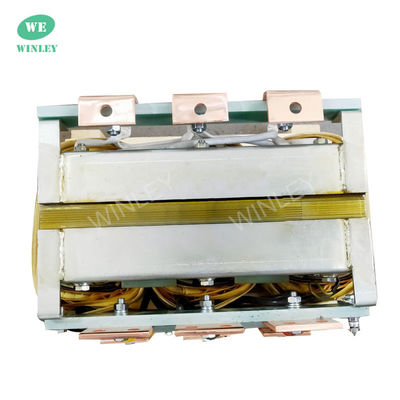

400Hz Three Phase Isolation Dry Type Transformer 23V Insulation Class H 0

Main parameters

Primary voltage (PRI. VOLTS): 200V Δ (Delta) 3-phase 3-wire
Frequency (HERTZ): 400 Hz
Capacity (kVA): 20 kVA
Impedance (%IMPEDANCE): 2.75%
Insulation class (INS.CLASS): 200℃
Weight (WEIGHT): 200 lbs
Secondary voltage (SEC.VOLTS):
22.5V Δ @ 8.75 kVA
Temperature rise (TEMP.RISE): 115℃
Phase number (PHASE): three-phase

Structural characteristics

This transformer adopts a rugged structural design to ensure reliable operation under various harsh operating conditions. The insulation system is designed as 420-200, which can withstand high temperatures and provide excellent insulation performance.

Application range

This 400Hz three-phase dry transformer is suitable for various industrial equipment, aerospace and military electronic systems, and can provide reliable power support under extreme conditions. Due to its high efficiency and stability, it is widely used in fields that require high-frequency power supply.

Conclusion

Choose this 400Hz three-phase dry transformer, you will get excellent performance and reliability, ensuring the stable operation of your equipment under high-frequency operation. For more technical information or suggestions, please contact our technical team, we will provide you with professional support.

Production process

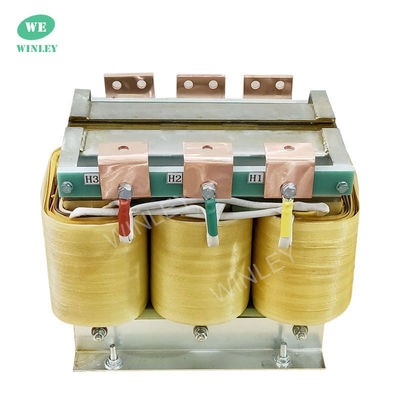

400Hz Three Phase Isolation Dry Type Transformer 23V Insulation Class H 1

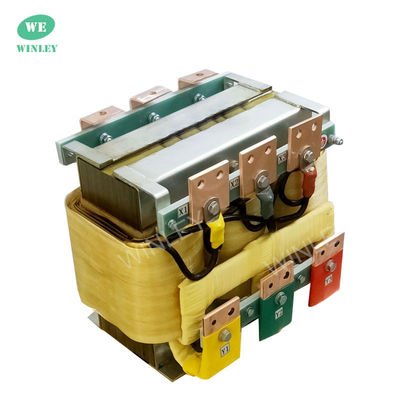

400Hz Three Phase Isolation Dry Type Transformer 23V Insulation Class H 2

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
