Scott Type 100 KVA 3 Phase Transformer Dry Type 380/400/420V 210/120V

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: ISO,CE
Model Number: S/D-100KVA
Minimum Order Quantity: 1unit
Price: $20-$8000
Packaging Details: Plywood case
Delivery Time: 10-15days
Payment Terms: T/T
Supply Ability: 1000units/month
Detail Information
Coil Number: Double Column Coil Structure: UI Core
Primary: 380/400/420V Secondary: 210/120V
Product Name: Low Voltage Scott Transformer Material: 100% Copper Wire
Efficiency: >98 % Insulation Class: H
High Light:

100 kva 3 phase transformer 380V

,

scott transformer 420V

,

100 kva 3 phase transformer 400V


Product Description

100KVA Scott Type Three Phase Dry Type Transformer 380/400/420V 210/120V





1. Feature



1).With voltage conversion function (such as: △/Yo or Yo/ △ connection).

2).With filtering anti-interference function (such as: can remove the third harmonic).

3).It has heat resistance, moisture resistance, stability, chemical compatibility, low temperature resistance, radiation resistance and non-toxic environmental protection characteristics.





2.Specification

Product Name Three phase dry type transformer
Product Model S/D-100KVA
Winding Material Enameled copper wire
Capacity 300KVA
Input Voltage 380/400/420V
Output Voltage 210/120V
Frequency 50/60Hz
Connection Type DYN1
Insulation Level F/H
Enclosures Protection Level IP20
Pressure-tight Test 3500V/min
Insulation Resistance >100MΩ
Ground Resistance 25A<100milliohm
Induction Withstand Voltage Test 125Hz / 830V / 60s
Cooling Method Natural or air cooling
Temperature Rise ≤115K
Transformation Ratio <3%
Air Carrying Current <3%
Impedance Voltage about 4.5%
Total Losses 4%
Efficiency 80%--99%
Operating Temperature -15℃~40℃ (40℃, 90%R.H., 56days)
Storage Temperature -25℃~100℃(40℃, 90%R.H., 56days)
Certificate CE,ISO
The technical parameter for reference only, for exactly technical information, please feel free to contact us!

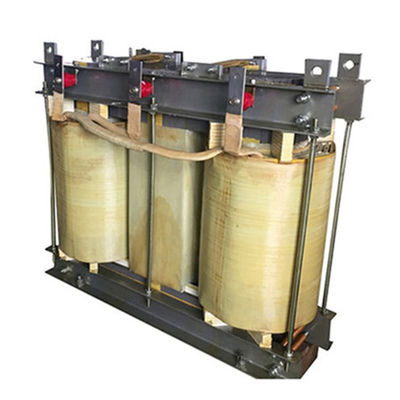

Scott Type 100 KVA 3 Phase Transformer Dry Type 380/400/420V 210/120V 0

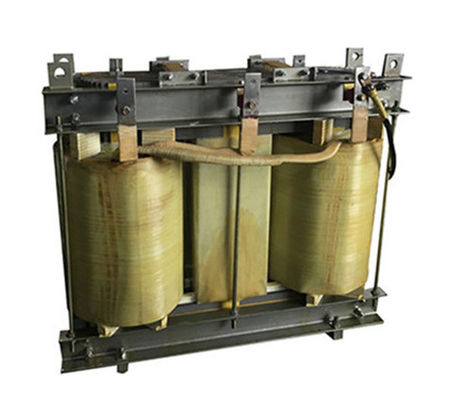

Scott Type 100 KVA 3 Phase Transformer Dry Type 380/400/420V 210/120V 1Scott Type 100 KVA 3 Phase Transformer Dry Type 380/400/420V 210/120V 2



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
