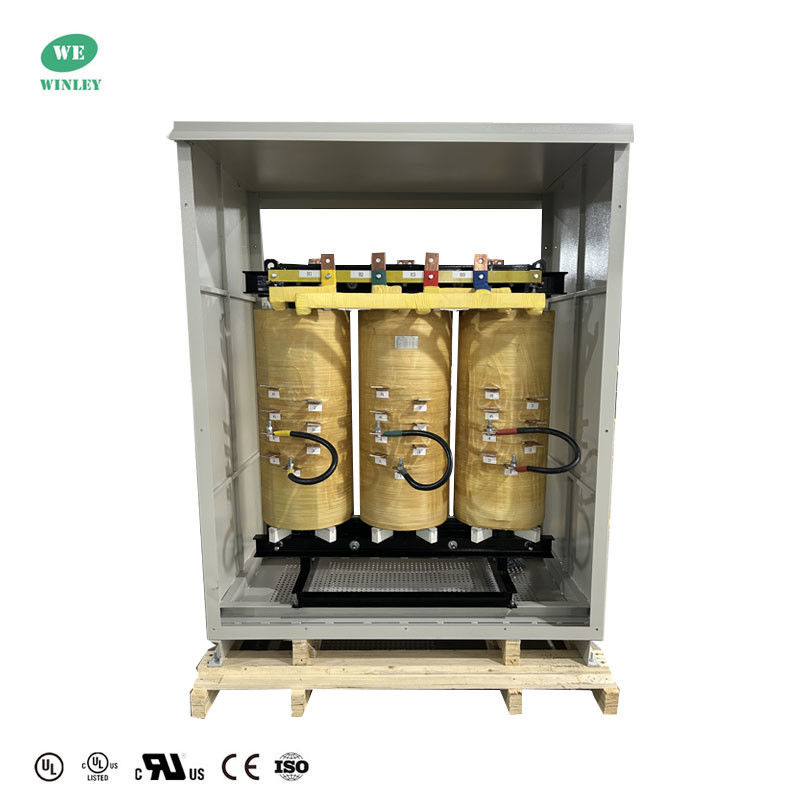

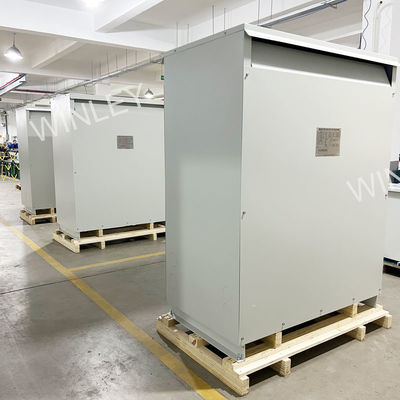

UL Certified 500KVA Three Phase Dry Type Transformer C Class Low Voltage 480V To 220V Non-Encapsulated
| Brand Name: | WINLEY |
| Model Number: | SG-500KVA |
| MOQ: | 1unit |
| Price: | $500~$60000/Unit |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T |
220V Three Phase Dry Type Transformer
,500KVA Three Phase Dry Type Transformer
,220V Three Phase Dry Type Transformer
UL Certified 500KVA Three Phase Dry Type Transformer C Class Low Voltage 480V To 220V Non-Encapsulated
Performance Characteristic
Transformers can have an 80-degree, 115-degree or 150-degree C-rise. The most efficient transformers generally have the lowest C-rises and operate the coolest. Units with low C-rises are essential for applications where optimal performance and efficiency are crucial, including hospitals, schools, alternative energy and manufacturing facilities.

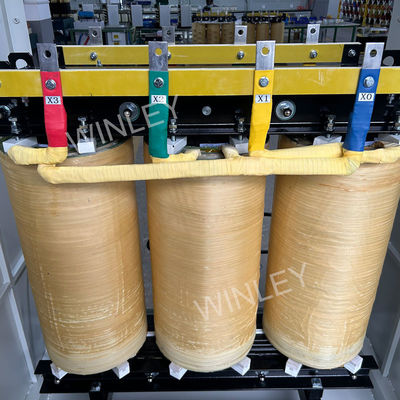

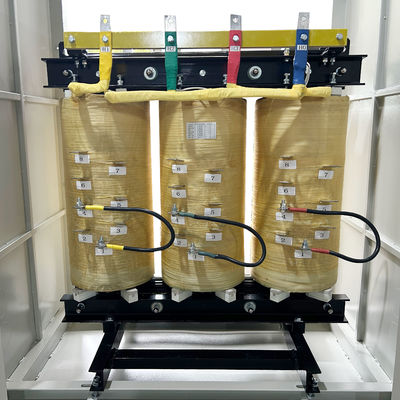

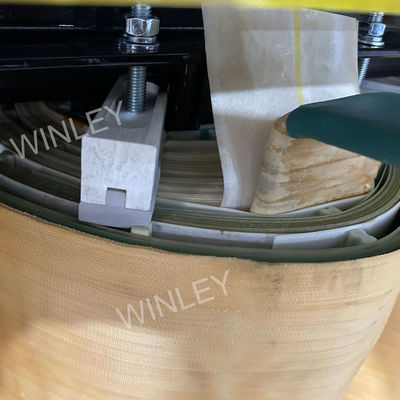

The main insulation of the C-class insulation three-phase non-encapsulated dry-type transformer is made of C-class (heat-resistant temperature 220℃) Nomex paper, which is cured by VPI vacuum pressure impregnation and high temperature. It has extremely high flame retardancy, heat dissipation performance and overload capacity. It is safe, reliable, environmentally friendly and energy-saving. It is suitable for environments with high fire protection requirements, small sites, and large load fluctuations.
Specification
| No. | Description | |
| 1 | Model | SG-500KVA |
| 2 | Name | Three-phase Dry type transformer |
| 3 | Rated power | SG-500KVA |
| 4 | Input voltage |
480Y/277V
|
| 5 | Input current | 601.4A |
| 6 | Output voltage |
380Y/220V
|
| 7 | Output current | 760A |
| 8 | Phase | Three |
| 9 | Frequency | 60Hz |
| 10 | Insulation class | C |
| 11 | Withstand voltage test |
Primary to secondary 2500V/60S Primary to grounding 2500V/60S Secondary to grounding 2500V/60S |
| 12 | Insulation resistance |
Primary to secondary >100MΩ Primary to grounding >100MΩ Secondary to grounding >100MΩ |
| 13 | Induced withstand voltage | 125Hz/Double voltage/min |
| 14 | Grounding resistance | 25A<100mΩ |
| 15 | Cooling method | Air cooling |
Drawing
WINLEY‘s C class insulation transformer advantage
- Enhanced Safety: Dry type transformers featuring Nomex insulation eliminate the risk of flammable materials, such as fluids and combustible components, providing a safer operating environment.
- Reduced Transmission Losses: With superior insulation, these transformers can be placed closer to their loads, minimizing low-voltage line lengths and consequently lowering transmission losses.
- Cost-Effectiveness: Designed to withstand temperature rises up to 150 degrees Celsius, transformers with premium-grade insulation require less conductor and steel. This reduction in material requirements leads to lower overall costs and simplifies installation.
- Improved Harmonic Loading: Dry type transformers with Nomex insulation have enhanced capabilities for managing high temperatures caused by heavy harmonic loads, making them suitable for demanding applications.
Specification
| Model (kva) |
Primary Voltage | Secondary Voltage | Coupling group tab | Shape dimension | Mounting dimension | K*J | The box dimension | |||||
| Bmax | Dmax±5 | Emax | A | C±5 | Bmax | Dmax±5 | Emax | |||||
| SG-10KVA | 660 400 380 200 |
380 220 110 36 |
Yyn0 Y/d D/y D/d |
360 | 180 | 305 | 215 | 140 | 10*20 | 450 | 360 | 480 |
| SG-15KVA | 360 | 200 | 335 | 215 | 155 | 10*20 | 450 | 360 | 480 | |||
| SG-20KVA | 420 | 210 | 350 | 250 | 170 | 10*20 | 490 | 400 | 540 | |||
| SG-30KVA | 420 | 230 | 380 | 250 | 190 | 10*20 | 490 | 400 | 540 | |||
| SG-50KVA | 680 | 350 | 550 | 420 | 220 | 10*20 | 800 | 510 | 840 | |||
| SG-80KVA | 750 | 400 | 620 | 480 | 250 | 10*20 | 850 | 510 | 840 | |||
| SG-100KVA | 780 | 420 | 650 | 500 | 250 | 10*20 | 900 | 550 | 890 | |||
| SG-300KVA | 180 | 95 | 185 | 100 | 75 | 6*14 | ||||||
| SG-500KVA | 180 | 95 | 185 | 100 | 75 | 6*14 | ||||||
| SG-1000KVA | 180 | 110 | 185 | 100 | 90 | 6*14 | ||||||
| SG-2000KVA | 230 | 125 | 205 | 130 | 100 | 9*16 | ||||||
| SG-3000KVA | 240 | 145 | 215 | 130 | 120 | 9*16 | ||||||
| SG-4000KVA | 240 | 155 | 235 | 130 | 130 | 9*16 | ||||||
| SG-5000KVA | 320 | 160 | 255 | 180 | 115 | 10*20 | 400 | 330 | 480 | |||
| SG-6000KVA | 300 | 165 | 280 | 180 | 140 | 10*20 | 400 | 330 | 480 | |||
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo(MOQ:≥10pcs).
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
