Three Phase Isolation Transformer
>

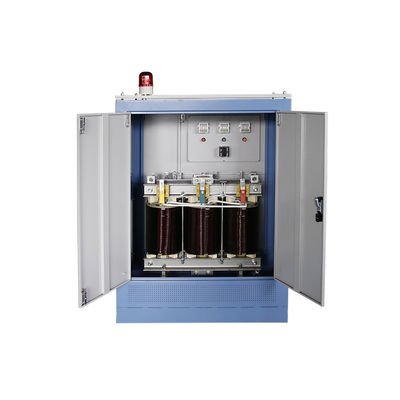

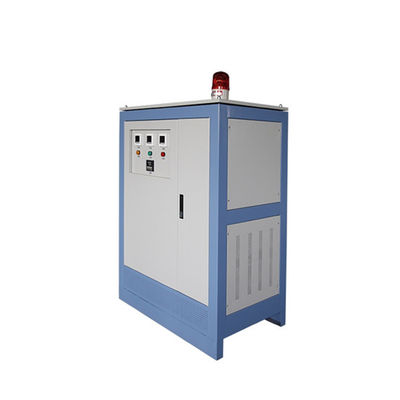

480V Dry Type Three Phase Isolation Transformer Grain Oriented Silicon Steel

480V Dry Type Three Phase Isolation Transformer Grain Oriented Silicon Steel

Brand Name: WINLEY
Model Number: 400KVA
MOQ: 1unit
Price: $500~$60000/Unit
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Certification:
ISO,CE
Usage:
Power
Coil Number:
2 Or 3 Windings
Frequency:
50/60Hz
Standard:
ANSI,IEC
Rated Voltage:
600V,480V,440V,415V,400V,380V
Core:
0.30mm Low Losses Grain Oriented Silicon Steel
Copper Wire:
Class H(200℃ Or 220℃) Enameled Wire
Type:
Isolation/Dry Type
Supply Ability:
1000units/month
Highlight:

480V Three Phase Isolation Transformer

,

3 winding transformerOriented Silicon Steel

,

Dry Type Three Phase Isolation Transformer

Product Description

480V Dry Type Three Phase Isolation Transformer Grain Oriented Silicon Steel





Features



The primary side and the secondary side of the electrical are completely insulated from the loop isolation. Further, the use of the characteristics of the core of the high-frequency loss is large to suppress the high frequency noise incoming control loop. Isolation transformer's secondary suspended and can only be used in the smaller range of power supply lines shorter occasions. At this point, the system-to- ground capacitance current was insufficient to harm the persons.

There is also a very important role is to protect the personal safety! Isolate dangerous voltages.

Main data

Product Name Three phase dry type transformer
Product Model SG/QZB/SBK/Power transformer/ZSG/SBDG/EPS UPS
Winding Material Enameled copper wire or enameled aluminum wire
Capacity 100VA~5000KVA
Input Voltage 415V or customized
Output Voltage 380V or customized
Frequency 50/60Hz
Connection Type DYN11/YYN0
Insulation Level F/H
Enclosures Protection Level IP00 or higher
Pressure-tight Test 2500V/min
Insulation Resistance >100MΩ
Ground Resistance 25A<100milliohm
Induction Withstand Voltage Test 125Hz / 830V / 60s
Cooling Method Natural or air cooling
Temperature Rise ≤115K
Transformation Ratio <3%
Air Carrying Current <3%
Impedance Voltage about 4.5%
Total Losses 4%
Efficiency 80%--99%
Operating Temperature -15℃~40℃ (40℃, 90%R.H., 56days)
Storage Temperature -25℃~100℃(40℃, 90%R.H., 56days)
Certificate CE,ISO
The technical parameter for reference only, for exactly technical information, please feel free to contact us!



Production process

480V Dry Type Three Phase Isolation Transformer Grain Oriented Silicon Steel 0



480V Dry Type Three Phase Isolation Transformer Grain Oriented Silicon Steel 1480V Dry Type Three Phase Isolation Transformer Grain Oriented Silicon Steel 2



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
