AN Three Phase UPS Isolation Transformer Copper

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: ISO,CE
Model Number: SG-100KVA
Minimum Order Quantity: 1unit
Price: $25~$60000/Unit
Packaging Details: Plywood case
Delivery Time: 7-10days
Payment Terms: T/T
Supply Ability: 1000units/month
Detail Information
Capacity: 100VA~5000KVA Material: Copper
Silicon Steel: 0.30mm Efficiency: >95%
Temperature Rise: <115K Insulation Class: H
Withstand Voltage: >2500V Frequency: 50/60Hz
Cooling Method: AN Protection Class: IP00
High Light:

AN UPS Isolation Transformer


IP00 three phase isolation transformer


UPS Isolation Transformer Copper

Product Description

AN Three Phase UPS Isolation Transformer Copper




K factor is a general measure of harmonic heating effect, especially suitable for harmonics on transformers. It not only emphasizes harmonic frequency, but also emphasizes harmonic order, harmonic spectrum distribution and spectrum ratio. K-factor transformer standard specifications have K -4, K-13, K-20, K-30, etc.; K-13 is a commonly used rating for office loads and general computer room loads, and K-20 tends to be dedicated computer loads, IT data centers, and power quality sensitive equipment PDU (Power Distribution Unit), etc.


The design of K-factor transformer is dedicated to controlling the thermal effects of harmonics. Specially designed products can filter out harmonics of three times the frequency, and products with a phase difference of 30 degrees with dual output can filter out harmonics of five, seven, seventeen, and nineteen times, etc.




Product Name Three phase UPS Isolation transformer
Product Model SG/QZB/SBK/Power transformer/ZSG/SBDG/EPS UPS
Winding Material Enameled copper wire or enameled aluminum wire
Capacity 100VA~5000KVA
Input Voltage 415V
Output Voltage 380V
Frequency 50/60Hz
Connection Type DYN11/YYN0
Insulation Level F/H
Enclosures Protection Level IP00 or higher
Pressure-tight Test 2500V/min
Insulation Resistance >100MΩ
Ground Resistance 25A<100milliohm
Induction Withstand Voltage Test 125Hz / 830V / 60s
Cooling Method Natural or air cooling
Temperature Rise ≤115K
Transformation Ratio <3%
Air Carrying Current <3%
Impedance Voltage about 4.5%
Total Losses 4%
Efficiency 80%--99%
Operating Temperature -15℃~40℃ (40℃, 90%R.H., 56days)
Storage Temperature -25℃~100℃(40℃, 90%R.H., 56days)
Certificate CE,ISO
The technical parameter for reference only, for exactly technical information, please feel free to contact us!



Production process

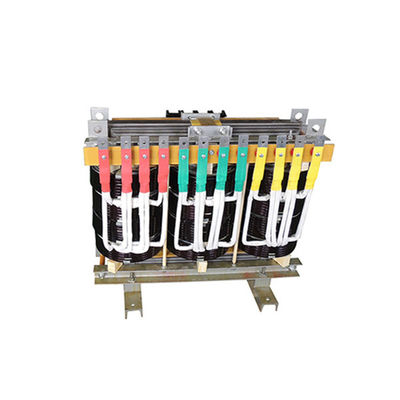

AN Three Phase UPS Isolation Transformer Copper 0

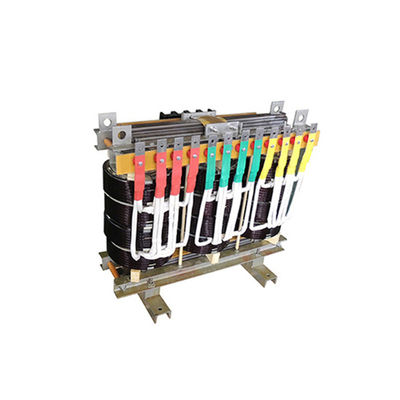

AN Three Phase UPS Isolation Transformer Copper 1
