Toroidal Isolation Transformer
>
150VA Inverter/Converter Toroidal Tansformer Double 110VAC To 12VAC/24VAC

150VA Inverter/Converter Toroidal Tansformer Double 110VAC To 12VAC/24VAC

Brand Name: WINLEY
Model Number: 150VA
MOQ: 100Units
Price: $5-$1000
Packaging Details: Pallet
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Certification:
ISO,CE
Usage:
Inverter/Converter
Input Voltage:
110VACx2
Output Voltage:
12VAC/24VAC
Operating Temperature:
-40℃~+60℃
Core Material:
Oriented Grain Silicon Steel
Coil:
100% Copper Wire
Type:
AC Common Mode Coil
Insulation:
Mylar Tape
Supply Ability:
10000units/month
Highlight:

Toroidal Tansformer 110VAC To 24VAC

,

150VA toroidal power transformer

,

Toroidal Tansformer 110VAC To 12VAC

Product Description

150VA Inverter/Converter Toroidal Tansformer Double 110VAC To 12VAC/24VAC





Features



1).Enameled copper wire.

2).Low losses silicon steel core.

3).High-temp tape.

4).High-temp resistance.

5).High mechanical strength.





Specifications

Item Description
Capacity 150VA
Frequency 50/60Hz
Max. Temperature 60℃
Temperature rise <60℃
Insulation class B/F
Voltage ratio 110VACx2-12VAC/24VAC
Winding material Copper
Insulation Resistance PRI.-SEC.: 500V DC 100 MΩ/Primary to Secondary 500VDC 100MΩ Min.
Short-Circuit of winding turn PRI. Iput: 440V AC 150HZ/ Primary and Secondary Not break down)
Hi-Pot Test PRI.-SEC.: 4.2KV/5mA/2S / Primary and Secondary Not break down )
Mounting metal plate Provided
Rubber gasket Provided
Standards VDE0550/IEC204-1/IEC61558/EC439
Warranty 24monthes



Power(VA) Approximate Diameter(mm) Approximate Height(mm) Approximate Weight(kg)
25 85 50 0.82
40 85 50 0.85
50 87 50 0.90
80 98 50 1.20
100 105 55 1.60
120 105 55 1.70
150 110 55 1.90
200 115 70 2.40
300 128 70 3.20
400 135 70 4.00
500 135 80 4.70
600 148 80 5.60
700 155 80 6.20
800 158 82 7.30
900 160 85 7.60
1000 165 90 8.50
1200 175 100 10.5
1500 185 105 12.5
1800 195 105 13.5
2000 205 105 15.5
2500 218 108 18.5
3000 228 110 21.5
4000 245 120 27.0
5000 256 128 31.0
6000 266 130 35.0
7000 280 135 39.0
8000 290 135 43.0
9000 300 140 48.0
10000 300 140 52.0

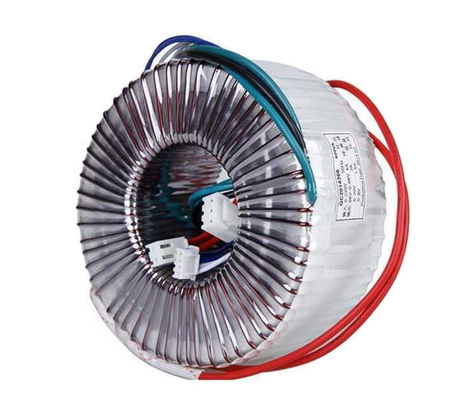

150VA Inverter/Converter Toroidal Tansformer Double 110VAC To 12VAC/24VAC 0

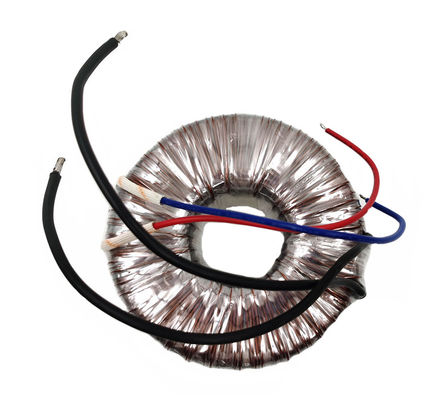

150VA Inverter/Converter Toroidal Tansformer Double 110VAC To 12VAC/24VAC 1

150VA Inverter/Converter Toroidal Tansformer Double 110VAC To 12VAC/24VAC 2



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
