Toroidal Isolation Transformer
>

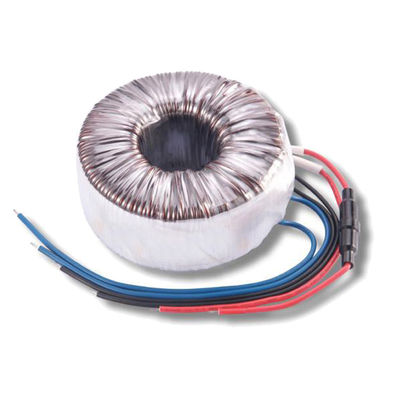

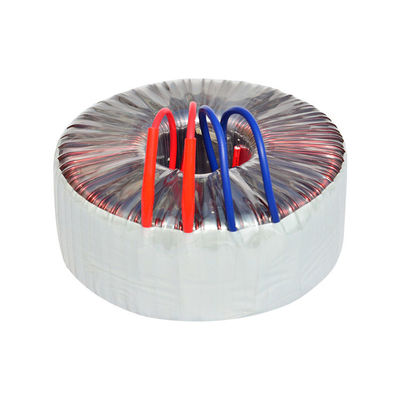

1600VA Medical Hospital Toroidal Tansformer 110VAC To 50VAC/16A

1600VA Medical Hospital Toroidal Tansformer 110VAC To 50VAC/16A

Brand Name: WINLEY
Model Number: 1600VA
MOQ: 50units
Price: $20-$1000
Packaging Details: Pallet
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Certification:
ISO,CE
Usage:
Medical/Hospital
Primary Voltage:
110VACx2
Secondary Voltage:
50VAC/16Ax2
Insulation:
H
Standard:
EN61558-1/EL506/LVD2014/EU
Core Material:
Crgo Silicon Steel
Operating Temperature:
-10℃~+55℃
Cooling Method:
AN
Supply Ability:
10000units/month
Highlight:

Hospital Toroidal Tansformer 110VAC To 50VAC

,

1600VA Medical Toroidal Tansformer

,

AN Hospital Toroidal Tansformer

Product Description

1600VA Medical/Hospital Toroidal Tansformer 110VAC To 50VAC/16A





Features



(1) Primary to secondary insulation from 6 layers polyester films (3 layers with 50% overlap)

(2) Secondary winding wire ( polyesterimid enameled QZY 180) and temperature class 180°

(3) Secondary leads from type UL1015 for 600V voltage and 105° temperature

(4) Final insulation from 2 layers polyester films (1 layers with 50% overlap)





Specifications

Item Description
Capacity 1600VA
Frequency 50/60Hz
Max. Temperature 60℃
Temperature rise <60℃
Insulation class B/F
Voltage ratio 110VACx2-50VAC/16Ax2
Winding material Copper
Insulation Resistance PRI.-SEC.: 500V DC 100 MΩ/Primary to Secondary 500VDC 100MΩ Min.
Short-Circuit of winding turn PRI. Iput: 440V AC 150HZ/ Primary and Secondary Not break down)
Hi-Pot Test PRI.-SEC.: 4.2KV/5mA/2S / Primary and Secondary Not break down )
Mounting metal plate Provided
Rubber gasket Provided
Standards VDE0550/IEC204-1/IEC61558/EC439
Warranty 24monthes





Application:



1). Green Power -- Coil core components for green energy market covering isolation transformers, drive inductors, line reactors, DC to AC conversion, etc.

2). Military -- Considering not only optimum cost, weight, size, but most important of reliability, our amorphous core transformers, 400Hz transformers, power chokes performance well to military industry.

3). Tele-communications -- Coilcore supply power chokes, filter chokes, common mode chokes, isolation transformers for ele-communication application.

4). Medical -- Coilcore focus on power solutions for the medical industry where reliability and performance are critical. Our toroidal medial power transormer with low stray field and low leakage current levels.

5). Industrial -- Our core compence magnetics including industrial control transformers, isolating safety transformers, high current inductors, and power inductors, with over 15 years long term project design experience.

6). Rail -- Safety and efficiency must come first, we obtain full experience of toroidal transformers, current transformers, high frequency transformers, power rail transformers, line filter chokes, emc filters, HF chokes for railway and train applications.



1600VA Medical Hospital Toroidal Tansformer 110VAC To 50VAC/16A 0
