|Output Voltage:||35VACx2||Output Current:||7.15A|
|Installation Method:||Sub-plate Mount||Temperature Rise:||<55℃|
|Core:||Oriented Silicon Steel||Leads:||UL Leads|
Toroidal industrial control transformer,
35VAC industrial power transformer,
500W industrial control transformer
500W Industrial Control Toroidal Tansformer 35VAC/7.15A Sub-Plate Mount
1). Installation method:Sub-plate mount
2). Flame resistance:UL94-V0
3). Work temperature:-30℃~+40℃
4). Withstand voltage:4.5KV AC
6). Use:Audio,Lighting,Equipment,Iatrical equipment,Apparatus,etc
|Insulation Resistance||PRI.-SEC.: 500V DC 100 MΩ/Primary to Secondary 500VDC 100MΩ Min.|
|Short-Circuit of winding turn||PRI. Iput: 440V AC 150HZ/ Primary and Secondary Not break down)|
|Hi-Pot Test||PRI.-SEC.: 4.2KV/5mA/2S / Primary and Secondary Not break down )|

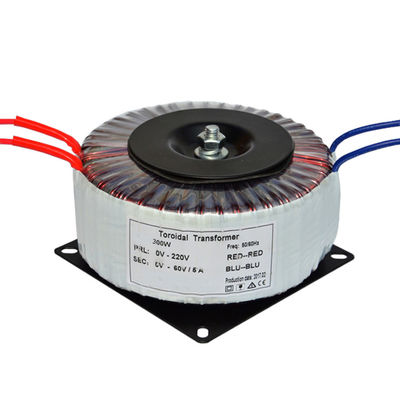

|Mounting metal plate||Provided|
1). Green Power -- Coilcore components for green energy market covering isolation transformers, drive inductors, line reactors, DC to AC conversion, etc.
2). Military -- Considering not only optimum cost, weight, size, but most important of reliability, our amorphous core transformers, 400Hz transformers, power chokes performance well to military industry.
3). Tele-communications -- Coilcore supply power chokes, filter chokes, common mode chokes, isolation transformers for ele-communication application.
4). Medical -- Coilcore focus on power solutions for the medical industry where reliability and performance are critical. Our toroidal medial power transormer with low stray field and low leakage current levels.
5). Industrial -- Our core compence magnetics including industrial control transformers, isolating safety transformers, high current inductors, and power inductors, with over 15 years long term project design experience.
6). Rail -- Safety and efficiency must come first, we obtain full experience of toroidal transformers, current transformers, high frequency transformers, power rail transformers, line filter chokes, emc filters, HF chokes for railway and train applications.
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
a. Customized color and special function.
b. Customized box.
c. Print customer's logo(MOQ:≥10pcs).
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
