Three Phase Isolation Transformer
>

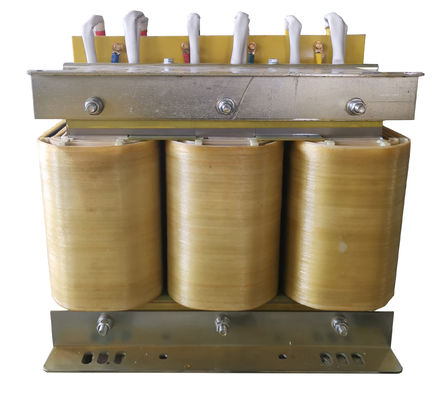

37.5KVA Three Phase Isolation Transformer 480V/277V Copper/Aluminium

37.5KVA Three Phase Isolation Transformer 480V/277V Copper/Aluminium

Brand Name: WINLEY
Model Number: SG-37.5KVA
MOQ: 1
Price: $20-$60,000
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Certification:
ISO,CE
Coil Structure:
UI
Frequency:
50/60Hz
Rated Voltage:
480V/277V
Material:
Copper/Aluminium
Cooling Method:
AN
Vector Group:
Dyn1
Protection:
IP20
Insulation Class:
H
Supply Ability:
10000pcs per month
Highlight:

277V Three Phase Isolation Transformer

,

Aluminium Three Phase Isolation Transformer

,

37.5kva Dry Type Auto Transformer

Product Description

37.5KVA Three Phase Isolation Transformer 480V/277V Copper/Aluminium



Features



1) Brand new oriented or non-oriented cold rolled silicon steel sheet.

2) Terminal block: High temperature resistance and excellent flame retardant.

3) Bobbin: Qualified nylon material,high temperature resistance,good flame retardancy.

4) H class enameled wire,temperature resistance up to 220℃.

5) Whole product using vacumn impregnation process by H class varnish.


Main data

Product Name Three phase isolation transformer
Product Model SG/QZB/SBK/Power transformer/ZSG/SBDG/EPS UPS
Winding Material Enameled copper wire or enameled aluminum wire
Capacity 100VA~5000KVA
Input Voltage 415V or customized
Output Voltage 480V or customized
Frequency 50/60Hz
Connection Type DYN1/YYN0
Insulation Level F/H
Enclosures Protection Level IP00 or higher
Pressure-tight Test 2500V/min
Insulation Resistance >100MΩ
Ground Resistance 25A<100milliohm
Induction Withstand Voltage Test 125Hz / 830V / 60s
Cooling Method Natural or air cooling
Temperature Rise ≤115K
Transformation Ratio <3%
Air Carrying Current <3%
Impedance Voltage about 4.5%
Total Losses 4%
Efficiency 80%--99%
Operating Temperature -15℃~40℃ (40℃, 90%R.H., 56days)
Storage Temperature -25℃~100℃(40℃, 90%R.H., 56days)
Certificate CE,ISO
The technical parameter for reference only, for exactly technical information, please feel free to contact us!





Production process

NEMA 3 Phase Isolation Transformer 0



NEMA 3 Phase Isolation Transformer 1

37.5KVA Three Phase Isolation Transformer 480V/277V Copper/Aluminium 2



FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
